Civil Engineering Drawing Questions and Answers – Orthographic Reading

«
»

This set of Civil Engineering Drawing Multiple Choice Questions & Answers (MCQs) focuses on “Orthographic Reading”.

1. In which of the following projection depth is not shown?
a) Oblique projection
b) Isometric projection
c) Perspective projection
d) Orthographic projection
View Answer

Answer: d
Explanation: In the above starting 3 methods, these represents the object by a pictorial view as eyes see it. In these methods of projection a 3-d object is represented on a projection plane by one view only. While in the orthographic projection an object is represented by 2 or 3 views on the mutual perpendicular projection plane. Each projection view represents 2-D of an object.

2. When the projectors are parallel to each other and also perpendicular to the plane, the projection is called ___________ projection.
a) Oblique projection
b) Orthographic projection
c) Isometric projection
d) Perspective projection
View Answer

Answer: b
Explanation: Refer to the figure given below which represents the visual ray. These are parallel to each other and perpendicular to the plane of projection. It represents the projection of objects.

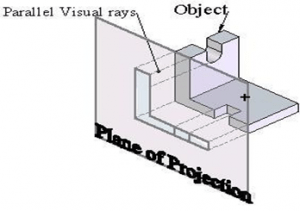

Figure represents visual ray parallel to each other & perpendicular to plane

3. The plane upon which the top view is projected is known as ________
a) Horizontal
b) Frontal
c) Profile
d) Base
View Answer

Answer: a
Explanation: Talking of orthographic projection, it happens due to three views, top view, front view and side view. Projection of any object which occur by side view or front view happens to occur on vertical plane while top view projection falls on horizontal plane as seen in the figure below.

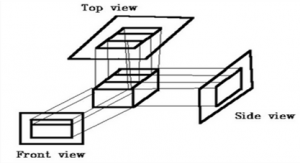

The top view projection falls on horizontal plane in given figure
advertisement
advertisement

4. Which angle of projection does the figure resembles if it is lying in the 3rd coordinate?
Third angle projection lies in 3rd quadrant resembles as if it is lying in 3rd coordinate
a) Second – angle projection
b) Third – angle projection
c) Fourth – angle projection
d) First – angle projection
View Answer

Answer: b
Explanation: Given in the question it lies in the 3rd quadrant. The plane of projection is assumed to be transparent. They lie between object and observer. When the observer views the object from the front, the rays of sight intersect the V.P, similarly when its top view is seen from bottom, the rays of sight intersect the H.P. The top view in this case comes above the front view and so it is third angle projection.

5. Front view will be projected on which plane if it is lying in the 3rd coordinate?
2nd plane on which plane is lying in the 3rd coordinate lies in the 3rd quadrant
a) 2nd plane
b) 3rd plane
c) 1st plane
d) All the planes
View Answer

Answer: a
Explanation: As it lies in the 3rd quadrant it will show third-angle projection. When the observer views the object from the front, the rays of sight intersect the V.P. as object is between observer and plane and so according to figure above front view will intersect the 2nd plane.
Participate in Civil Engineering Drawing Certification Contest of the Month Now!

6. The following figure is lying in the 3rd coordinate, it shows us C view, which view does this “C” represents?
“C” represents side view lying in the 3rd coordinate in given figure
a) Front view
b) Top view
c) Bottom view
d) Side view
View Answer

Answer: d
Explanation: By default only 3 views are used but in actual any no. of views can be taken as per requirement. Here by default three views can be seen as top, front and side view. Since it is in 3rd quadrant A and B view represents top and front view. And when from 3rd side the object viewed represents side view.

7. The ____________ is the plane upon which the side view is projected.
a) Horizontal plane
b) Profile plane
c) Vertical plane
d) Inclined plane
View Answer

Answer: b
Explanation: A third plane perpendicular to both coordinate planes, and hence to the ground line, is called a profile plane. This plane is vertical in position, and may be used as a plane of projection. A projection on the profile plane is called a profile view, or end view, or sometimes edge view, and is often required in machine or other drawing when the plan and elevation do not sufficiently give the shape and dimensions.
advertisement

8. If 2nd plane shifts to the left of the object and 3rd plane shifts to the bottom of the object, then which angle of projection it will show?
a) Third – angle projection
b) Second – angle projection
c) First – angle projection
d) Fourth – angle projection
View Answer

Answer: c
Explanation: When the object is situated in front of the V.P. and the H.P. i.e. in the first quadrant and then projected on these planes is called 1st angle projection. The object lies between the observer and the plane of projection. In this the top view comes below the front view.

9. What does the red area formed on the plane represents?
a) Extrusion
b) Shadow
c) Reflection
d) Projection
View Answer

Answer: d
Explanation: It represents projection on the intersected plane of an object. The rays of sight are extended further to meet perpendicularly a vertical plane or horizontal plane thus forming the red area (in th fig.) on the planes.
advertisement

10. An advantage of this type of view is that each view shows the object all the way through as if it were transparent?
a) Planar
b) Horizontal
c) Auxiliary
d) Orthographic
View Answer

Answer: d
Explanation: In orthographic projection, the plane of projection is transparent as the plane of projection is in between observer and object.

11. Any object can be viewed from_________ mutually perpendicular views.
a) Two
b) Four
c) Three
d) Six
View Answer

Answer: d
Explanation: The front, top, and right-side views are commonly considered the core group of views included by default, but any combination of views may be used depending on the needs of the particular design, these are – front, back, top, bottom, right side, left side views.
