This set of Network Theory Interview Questions and Answers focuses on “Cut-Set and Tree Branch Voltages”.

1. The direction of the cut-set is?

a) same as the direction of the branch current

b) opposite to the direction of the link current

c) same as the direction of the link current

d) opposite to the direction of the branch current

View Answer

Explanation: A cut-set is a minimal set of branches of a connected graph such that the removal of these branches causes the graph to be cut into exactly two parts. The direction of the cut-set is same as the direction of the branch current.

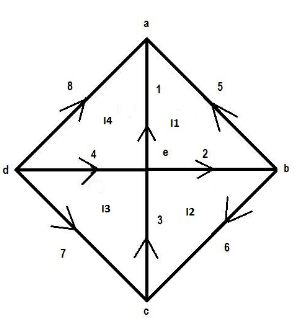

2. Consider the graph shown below. The direction of the cut-set of node ‘a’ is?

a) right

b) left

c) upwards

d) downwards

View Answer

Explanation: The direction of the cut set at node ‘a’ will be the direction of the branch current at node ‘a’. So the direction of the current will be upwards.

3. Consider the graph shown above in question 2. The direction of the cut-set at node ‘b’ will be?

a) upwards

b) right

c) downwards

d) left

View Answer

Explanation: The direction of the current will be towards right. The direction of the cut set at node ‘b’ will be the direction of the branch current at node ‘b’. So the direction of the current will be towards right.

4. In the graph shown above in the question 2, the direction of the cut-set at node ‘c’ is?

a) downwards

b) upwards

c) left

d) right

View Answer

Explanation: The direction of the cut set at node ‘c’ will be the direction of the branch current at node ‘c’. So the direction of the current will be upwards.

5. In the graph shown in the question 2, the direction of the cut-set at node ‘d’ will be?

a) left

b) downwards

c) right

d) upwards

View Answer

Explanation: The direction of the cut set at node ‘d’ will be the direction of the branch current at node ‘d’. So the direction of the current will be upwards.

6. The row formed at node ‘a’ in the cut set matrix in the figure shown in question 2 is?

I_{1} I_{2} I_{3} I_{4} I_{5} I_{6} I_{7} I_{8}

a) +1 +1 +1 +1 0 0 0 0

b) +1 0 0 0 +1 0 0 +1

c) -1 0 0 0 -1 0 0 -1

d) -1 -1 0 0 -1 -1 0 0

View Answer

Explanation: The direction of the cut set at node ‘a’ is towards node ‘a’. So the current direction of I

_{1}is same as cut set direction. So it is +1. Similarly for all other currents.

7. The row formed at node ‘c’ in the cut set matrix in the figure shown question 2 is?

a) -1 -1 0 0 +1 -1 0 0

b) 0 0 +1 0 0 -1 -1 0

c) +1 0 0 0 +1 0 0 +1

d) -1 0 0 0 -1 0 0 -1

View Answer

Explanation: The direction of the cut set at node ‘c’ is away from node ‘c’. So the current direction of I

_{3}is same as cut set direction. So it is +1. Similarly for all other currents.

8. The number of cut set matrices formed from a graph is?

a) N^{N-1}

b) N^{N}

c) N^{N-2}

d) N^{N+1}

View Answer

Explanation: For every tree, there will be a unique cut set matrix. So there will be N

^{N-2}cut set matrices.

9. For every tree there will be _____ number of cut set matrices.

a) 1

b) 2

c) 3

d) 4

View Answer

Explanation: For every tree, there will a unique cut set matrix. So, number of cut-set matrices for every tree = 1.

10. If a row of the cut set matrix formed by the branch currents of the graph is shown below. Then which of the following is true?

I_{1} I_{2} I_{3} I_{4} I_{5} I_{6} I_{7} I_{8}

-1 -1 0 0 +1 -1 0 0

a) -V_{1}-V_{2}+V_{5}-V_{6}=0

b) -I_{1}-I_{2}+I_{5}-I_{6}=0

c) -V_{1}+V_{2}+V_{5}-V_{6}=0

d) -I_{1}+I_{2}+I_{5}-I_{6}=0

View Answer

Explanation: KCL equations are derived from cut set matrix and these include currents not voltages. So, -I

_{1}-I

_{2}+I

_{5}-I

_{6}=0.

**Sanfoundry Global Education & Learning Series – Network Theory.**

To practice all areas of Network Theory, __here is complete set of 1000+ Multiple Choice Questions and Answers__.
