Network Theory Questions and Answers – Advanced Problems on Filters – 2

This set of Network Theory Technical Interview Questions & Answers focuses on “Advanced Problems on Filters – 2”.

1. In a parallel RL circuit, 10 A current enters into the resistor R and 15 A current enters into the Inductor L. The total current I is _____________
a) 15.5 A
b) 25.05 A
c) 18.03 A
d) 30.15 A
View Answer

Answer: c
Explanation: Currents in resistance and inductance are out of phase by 90°.
Hence, I = \(I_1^2 + I_2^2\)
Or, I = [102 + 152]0.5
Or, I = \(\sqrt{100+225} = \sqrt{325}\)
= 18.03 A.

2. In the circuit given below, a dc circuit fed by a current source. With respect to terminals AB, Thevenin’s voltage and Thevenin’s resistance are ____________
Thevenin’s voltage & Thevenin’s resistance are VTH = 7.14 V, RTH = 2.14 Ω for dc circuit
a) VTH = 5 V, RTH = 0.75 Ω
b) VTH = 7.14 V, RTH = 2.14 Ω
c) VTH = 7.5 V, RTH = 2.5 Ω
d) VTH = 5 V, RTH = 1 Ω
View Answer

Answer: b
Explanation: VTH = \(\frac{5 X 10}{35}\) X 5 = 7.14 V
Also, RTH = \(\frac{5 X 15}{35}\) = 2.14 Ω.

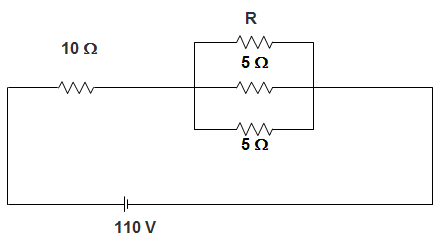

3. In the circuit given below, the value of R is ____________
The value of R is 6 Ω in given circuit
a) 12 Ω
b) 6 Ω
c) 3 Ω
d) 1.5 Ω
View Answer

Answer: b
Explanation: The resistance of parallel combination is given by,
Req = \(\frac{40}{3}\) – 10 = 3.33 Ω
Or, \(\frac{1}{3.33} = \frac{1}{12} + \frac{1}{15} + \frac{1}{15}\)
Or, R = 6 Ω.
advertisement
advertisement

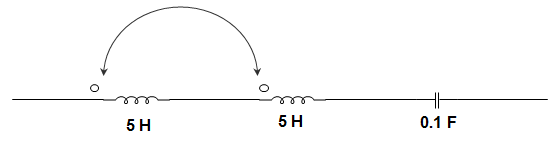

4. In the circuit given below, M = 1. The resonant frequency is _______________
The resonant frequency is 14.53 Hz in given circuit
a) 145.3 Hz
b) 0.1453 Hz
c) 1.453 Hz
d) 14.53 Hz
View Answer

Answer: d
Explanation: IEQ = L1 + L2 + 2M
LEQ = 5 + 5 + 2 × 1
= 10 + 2 = 12 H
∴ FO = \(\frac{1}{2π\sqrt{LC}}\)
= \(\frac{1}{2π\sqrt{12 × 0.1}}\)
= 0.1453 Hz.

5. A thermistor is used for ____________
a) Over voltage protection
b) Temperature alarm circuit
c) Automatic light control
d) Automatic sensor
View Answer

Answer: b
Explanation: The resistance of a thermistor decreases with increases in temperature. It is used to monitor the hot spot temperature of electric machines.

6. Two network functions are given below.
H1 = \(\frac{1}{s^2 + 2s + 1}\), H2 = \(\frac{1}{s^3+3s^2+3s+1}\)
The frequency response indicates that the filter is ___________
a) Low-pass
b) Band-pass
c) High-pass
d) Band reject
View Answer

Answer: a
Explanation: | H1 |2 = \(\frac{1}{[(jω)^2 + 2jω + 1] [(jω)^2 + 2 jω + 1]}\)
Similarly, | H2 |2 = \(\frac{1}{1 + ω^6}\)
Therefore at ω = 0, 1 and ∞, we have | H |2 = 1, \(\frac{1}{2}\) and 0 respectively.
Hence, the filter is a Low-pass filter.

7. A particular band-pass function has a network function as H(s) = \(\frac{s}{s^2+2s+1}\) then, its quality factor Q is ___________
a) \(\frac{3}{4}\)
b) \(\frac{1}{2}\)
c) \(\frac{3}{2}\)
d) \(\frac{1}{4}\)
View Answer

Answer: d
Explanation: H(s) = \(\frac{Ks}{s^2+as+b}\)
Then, quality factor is given as \(\frac{\sqrt{b}}{a}\)
Here, b = 1, a = 2, K = 1
∴ Q = \(\frac{1}{2}\) = 0.5.
advertisement

8. The filter which passes all frequencies above fc by attenuating significantly, all frequencies above fc is _______________
a) Low-pass
b) High-pass
c) Band-pass
d) Band-stop
View Answer

Answer: b
Explanation: A high-pass filter is one which passes all frequencies above fc by attenuating significantly, all frequencies below fc.

9. For a Band Pass Filter, the slope of the filter is given as 80dB/decade. The order of the Band Pass Filter is __________
a) 10
b) 8
c) 4
d) 6
View Answer

Answer: b
Explanation: The Bode plot is a logarithmic plot which helps in fitting a large scale of values into a small scale by the application of logarithm. Plotting the slope 80dB/decade on the Bode plot, we get n=8. Hence the order of the Band Pass Filter is 8.
advertisement

10. In which of the filter circuits given below, will the bandwidth be equal to the critical frequency?
a) Low-pass
b) High-pass
c) Band-pass
d) Band-stop
View Answer

Answer: a
Explanation: Bandwidth can be calculated by considering,
Largest positive value – Smallest Positive Value
Here, in case of the Low-pass filter only, the largest positive value will of course be the critical frequency, beyond which frequencies have to be blocked. Hence, the bandwidth in a Low-pass filter equals the critical frequency.

11. For providing a Roll-off greater than 60dB/decade/pole, filters with which characteristics are useful?
a) Butterworth
b) Chebyshev
c) Bessel
d) Butterworth & Bessel
View Answer

Answer: b
Explanation: Roll off is a term commonly refers to the steepness of the transmission function with respect to the frequency. For a Chebyshev filter, the Roll-off value greater than 60. This characteristic feature is useful when a rapid roll-off is required because it provides a Roll-off rate more than 60. On the other hand, both Butterworth and Bessel have the Roll-off rate less than or equal to 60 dB/decade/pole.

12. A Low-pass filter circuit has a cut-off frequency of 50 kHz. The bandwidth of the filter is ______________
a) 24.6 kHz
b) 50 kHz
c) 61.5 kHz
d) 36.9 kHz
View Answer

Answer: b
Explanation: The bandwidth is defined as the highest cut-off frequency to the lowest cut-off frequency. Here the lowest cut-off frequency is Zero.
For a Low-pass filter therefore, Cut-off Frequency = Bandwidth of the filter
∴ Bandwidth = 50 kHz.

13. Given a system function H(s) = \(\frac{1}{s+10}\). Let us consider a signal sin 10t. Then the steady state response is ___________
a) 1
b) 2
c) 0
d) 5
View Answer

Answer: c
Explanation: H(s) = \(\frac{V(s)}{J(s)}\)
= \(\frac{1}{s+10}\)
V(s) = \(\frac{1}{s+10}\) . J(s)
J(s) = L (sin 10t) = \(\frac{10}{s^2+100}\)
V (s) = \(\frac{1}{s^2+100} . \frac{10}{s+10}\)
VSS = lims→0⁡ sV(s)
= 0.

14. Current I = – 1 + \(\sqrt{2}\) (sin (ωt + 60°)) A is passed through three meters. The respective readings will be?
a) \(\sqrt{2}\) A, \(\sqrt{2}\) A and 1 A
b) 1 A, \(\sqrt{2}\) A and 1 A
c) – 1 A, \(\sqrt{2}\) A and \(\sqrt{2}\) A
d) -1 A, 1 A and 1 A
View Answer

Answer: c
Explanation: We know that a PMMC instrument reads only DC value and since it is a centre zero type, so it will give – 1.
So, rms = \(\sqrt{1^2 + (\frac{\sqrt{2}}{\sqrt{2}})^2} = \sqrt{2}\) A
Moving iron also reads rms value, so its reading will also be \(\sqrt{2}\) A.

15. For a Band Pass Filter, the slope of the filter is given as 40dB/decade. The order of the Band Pass Filter is __________
a) 2
b) 3
c) 4
d) 6
View Answer

Answer: c
Explanation: The Bode plot is a logarithmic plot which helps in fitting a large scale of values into a small scale by the application of logarithm. Plotting the slope 40dB/decade on the Bode plot, we get n=4. Hence order of the Band Pass Filter is 4.
