Network Theory Questions and Answers – Thevenin’s Theorem

This set of Network Theory Multiple Choice Questions & Answers (MCQs) focuses on “Thevenin’s Theorem”.

1. Thevenin’s voltage is equal to the _____________ voltage across the _______________ terminals.
a) short circuit, input
b) short circuit, output
c) open circuit, output
d) open circuit, input
View Answer

Answer: c
Explanation: Thevenin’s voltage is equal to open circuit voltage across output terminals not the short circuit voltage across output terminals.

2. Consider the circuit shown below. The expression of Thevenin’s voltage (VTh) is?
The expression of Thevenin’s voltage (VTh) is V(Z2/(Z1+Z2)) in circuit
a) V(Z1/(Z1+Z2))
b) V(Z2/(Z1+Z2))
c) V(Z1)
d) V(Z2)
View Answer

Answer: b
Explanation: Thevenin’s theorem gives us a method for simplifying a given circuit. The thevenin’s voltage is VTh = V(Z2/(Z1+Z2)).

3. The value of ZTh in the circuit shown below is?
The expression of Thevenin’s voltage (VTh) is V(Z2/(Z1+Z2)) in circuit
a) Z3+(Z1Z2/(Z1+Z2))
b) Z1+(Z3Z2/(Z3+Z2))
c) Z2+(Z1Z3/(Z1+Z3))
d) (Z1Z2/(Z1+Z2))
View Answer

Answer: a
Explanation: The thevenin’s equivalent form of any complex impedance consists of an equivalent voltage source and an equivalent impedance. The thevenin’s impedance is ZTh = Z3+(Z1Z2/(Z1+Z2)).
advertisement
advertisement

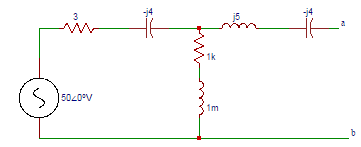

4. In the circuit shown below, find the thevenin’s voltage across ‘ab’ terminals.
Find the thevenin’s voltage across ‘ab’ terminals in the circuit
a) 48.5∠40.35⁰
b) 48.5∠-40.35⁰
c) 49.5∠-40.35⁰
d) 49.5∠40.35⁰
View Answer

Answer: d
Explanation: Though the thevenin’s equivalent circuit is not same as its original circuit, the output current and voltage are the same in both cases. The thevenin’s voltage is equal to the voltage across (4+j6)Ω impedance. VTh =50∠0o×(4+j6)/((4+j6)+(3-j4))=49.5∠40.35⁰V.

5. Find the thevenin’s impedance in the circuit shown below.
Find the thevenin’s voltage across ‘ab’ terminals in the circuit
a) 4.83∠-1.13⁰
b) 5.83∠1.13⁰
c) 4.83∠1.13⁰
d) 5.83∠-1.13⁰
View Answer

Answer: a
Explanation: The impedance is equal to the impedance seen into the network across the output terminals. ZTh = (j5-j4)+(3-j4)(4+j6)/(3-j4+4+j6) = 4.83∠-1.13⁰Ω.

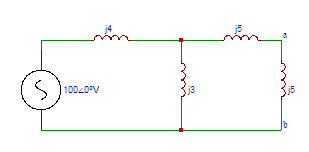

6. Determine the Thevenin’s voltage across ‘ab’ terminals in the circuit shown below.
Find the Thevenin’s voltage across ‘ab’ terminals in the circuit shown
a) 41.86∠0⁰
b) 42.86∠0⁰
c) 43.86∠0⁰
d) 44.86∠0⁰
View Answer

Answer: b
Explanation: The voltage across the points a and b is called thevenin’s equivalent voltage. Thevenin’s equivalent voltage Vab=100∠0o×j3/(j3+j4) = 42.86∠0o V.

7. Find the Thevenin’s impedance across ‘ab’ terminals in the circuit shown below.
Find the Thevenin’s voltage across ‘ab’ terminals in the circuit shown
a) j4.71
b) j5.71
c) j6.71
d) j7.71
View Answer

Answer: c
Explanation: The impedance is equal to the impedance seen into the network across the output terminals. Zab=j5 + (j4)(j3)/j7 = j6.71Ω.
advertisement

8. Determine the load current across j5Ω in the circuit shown below.
The expression of Thevenin’s voltage (VTh) is V(Z2/(Z1+Z2)) in circuit
a) 3.66∠90⁰
b) 3.66∠-90⁰
c) 4.66∠90⁰
d) 4.66∠-90⁰
View Answer

Answer: b
Explanation: The load current is the ratio of thevenin’s equivalent voltage and thevenin’s equivalent impedance. The load current IL = (42.86∠0o)/(j6.71+j5) = 3.66∠-90o A.

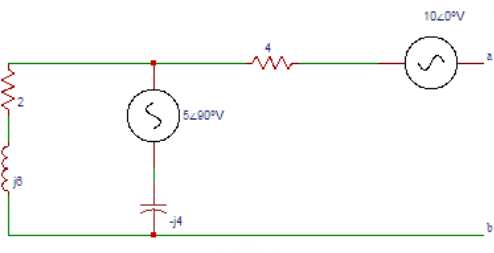

9. Determine the thevenin’s voltage in the circuit shown below.
The thevenin’s voltage in the circuit is 18∠146.31⁰ in circuit
a) 18∠146.31⁰
b) 18∠-146.31⁰
c) 19∠146.31⁰
d) 19∠-146.31⁰
View Answer

Answer: a
Explanation: The voltage across (-j4) Ω resistor is = (5∠90o)/((2+j2)) (-j4) = 7.07∠-45o V. The voltage across ‘ab’ = -10∠0o+5∠90o-7.07∠-45o=18∠146.31o V.
advertisement

10. Find the Thevenin’s impedance in the following circuit.
The thevenin’s voltage in the circuit is 18∠146.31⁰ in circuit
a) 11.3∠45⁰
b) 12.3∠45⁰
c) 11.3∠-45⁰
d) 12.3∠-45⁰
View Answer

Answer: c
Explanation: The impedance is equal to the impedance seen into the network across the output terminals. Zab = 4 + (2+j6)(-j4)/(2+j2) = 11.3∠-45o Ω.
