Network Theory Questions and Answers – Calculation of I(0+), di/dt(0+), d2I/dt2(0+) in Circuits Involving both Capacitor and Inductor

This set of Tough Network Theory Questions and Answers focuses on “Calculation of I(0+), di/dt(0+), d2I/dt2(0+) in Circuits Involving both Capacitor and Inductor”.

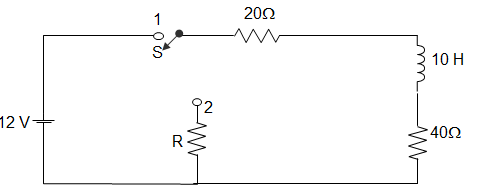

1. A coil of inductance 10 H, resistance 40 Ω is connected as shown in the figure. The switch S connected with point 1 for a very long time, is moved to point 2 at t=0. If, at t=0+, the voltage across the coil is 120 V, the value of the resistance R is __________
The value of resistance R is Zero for switch S connected with point 1 for a very long time
a) Zero
b) 20 Ω
c) 40 Ω
d) 60 Ω
View Answer

Answer: a
Explanation: IL at 0 = \(\frac{120}{60}\) = 2A
120 = 2(R + 40 + 20)
∴ R = 0.

2. A coil of inductance 10 H, resistance 40 Ω is connected as shown in figure. The switch S connected with point 1 for a very long time, is moved to point 2 at t=0. For the value of R obtained, the time taken for 95 % of the stored energy dissipated is ________
The value of resistance R is Zero for switch S connected with point 1 for a very long time
a) 0.10 s
b) 0.15 s
c) 0.50 s
d) 1.0 s
View Answer

Answer: c
Explanation: For source free circuit,
I (t) = Io\(e^{-\frac{R}{T} t}\)
∴ I (t) = 0.05 = 2 × \(e^{-\frac{60}{10} t}\)
Or, t = 0.61 ≈ 0.5 s.

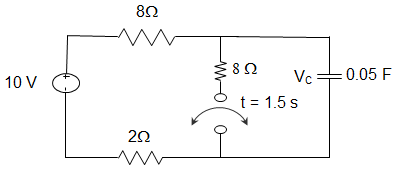

3. In the circuit shown below steady state is obtained before the switch closes at t = 0. The switch is closed for 1.5 s and is then opened. At t = 1 s, V (t) will be?
At t = 1 s, V (t) will be 5.03 V for switch is closed for 1.5 s & is then opened
a) – 3.24 V
b) 1.97 V
c) 5.03 V
d) 13.24 V
View Answer

Answer: c
Explanation: V (0) = 10 V = V (0+)
For 0<t≤1.5 s, τ = 4 × 0.05 = 0.2 s
VOC = 5 V
V (t) = 5 + (10 – 5)\(e^{\frac{-t}{0.2}}\) = 5 + 5e-5t
V (1s) = 5.03 V.
advertisement
advertisement

4. The circuit shown below is at steady state before the switch closes at t=0. The switch is closed for 1.5 s and is then opened. At t = 2 s, V (t) will be?
At t = 1 s, V (t) will be 5.03 V for switch is closed for 1.5 s & is then opened
a) 5.12 V
b) 6.43 V
c) 8.57 V
d) 9.88 V
View Answer

Answer: c
Explanation: V (1.5s) = 5.002 V
For t > 1.5 s, τ = 8 × 0.05 = 0.4
V (t) = 10+ (5-10)\(e^{\frac{-(t-1.5)}{0.4}}\) = 10 – 5e-2.5(t-1.5)
For t≥1.5 s, V (2 s) = 8.57 V.

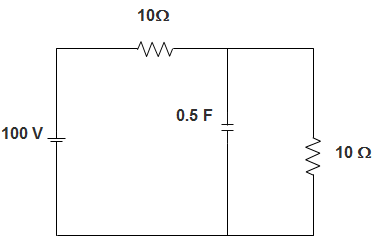

5. In the circuit given below, the voltage across capacitor when switch is closed at t = ∞ is ____________
The voltage across capacitor when switch is closed at t = ∞ is 50 V In the circuiit
a) 50 V
b) 20 V
c) 30 V
d) 7.5 V
View Answer

Answer: a
Explanation: From the figure, we can infer that,
Voltage across capacitor = voltage across 10 Ω resistance.
Now, voltage across the 10 Ω resistance = \(\frac{100}{10+10}\) X 10
= \(\frac{100}{20}\).10
= 50 V.
Note: Join free Sanfoundry classes at Telegram or Youtube

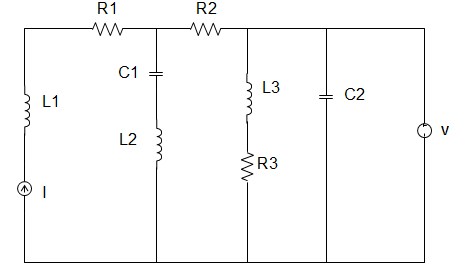

6. In the circuit given below, the current source is 1 A, voltage source is 5 V, R1 = R2 = R3 = 1 Ω, L1 = L2 = L3 = 1 H, C1 = C2 = 1 F. The current through R3 is _________
Find current through R3 for voltage source 5 V, R1 = R2 = R3 = 1 Ω, L1 = L2 = L3
a) 1 A
b) 5 A
c) 6 A
d) 8 A
View Answer

Answer: b

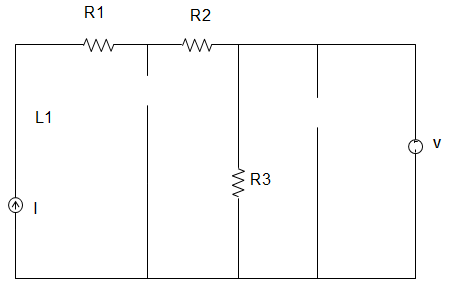

Explanation: At steady state, the circuit becomes,
The current through R3 is 5 A for voltage source 5 V, R1 = R2 = R3 = 1 Ω, L1 = L2 = L3
∴ The current through R3 = \(\frac{5}{1}\) = 5 A.

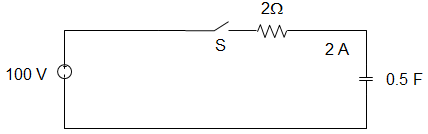

7. In the circuit given below, the capacitor is initially having a charge of 10 C. 1 second after the switch is closed, the current in the circuit is ________
Find the current in the circuit for capacitor is initially having a charge of 10 C
a) 14.7 A
b) 18.5 A
c) 40.0 A
d) 50.0 A
View Answer

Answer: a
Explanation: Using KVL, 100 = R\(\frac{dq}{dt} + \frac{q}{C}\)
100 C = RC\(\frac{dq}{dt}\) + q
Or, \(\int_{q_o}^q \frac{dq}{100C-q} = \frac{1}{RC} \int_0^t \,dt\)
100C – q = (100C – qo)e-t/RC
I = \(\frac{dq}{dt} = \frac{(100C – q_o)}{RC} e^{-1/1}\)
∴ e-t/RC = 40e-1 = 14.7 A.
advertisement

8. In the circuit given below, the current source is 1 A, voltage source is 5 V, R1 = R2 = R3 = 1 Ω, L1 = L2 = L3 = 1 H, C1 = C2 = 1 F. The current through the voltage source V is _________
Find current through R3 5 A for voltage source 5 V, R1 = R2 = R3 = 1 Ω, L1 = L2 = L3
a) 1 A
b) 3 A
c) 2 A
d) 4 A
View Answer

Answer: d
Explanation: At steady state, the circuit becomes,
The current through R3 is 5 A for voltage source is 5 V, R1 = R2 = R3 = 1 Ω, L1 = L2 = L3
∴ The current through the voltage source V = 5 – 1 = 4 A.

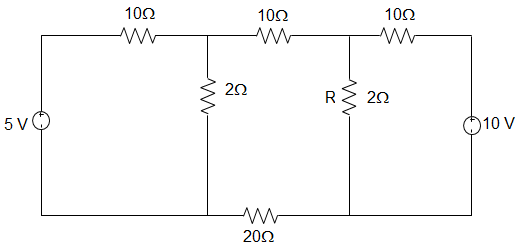

9. In the circuit given below, the voltage across R by mesh analysis is _________
The voltage across R by mesh analysis is 1.54 V in the circuit
a) 1.59 V
b) 1 V
c) 2.54 V
d) 1.54 V
View Answer

Answer: d
Explanation: In loop 1, by KVL, (10 + 2) I1 + (-2) I2 + 0I3 = 5
Or, 12 I1 – 2I2 = 5
In loop 2, -2I1 + (10+2+20+2) I2 + (-2) I3 = 0
Or, -2I1 + 34 I2 – 2I3 = 0
In loop 3, 0I1 + – 2I2 + (2+10) I3 = 10
Or, 0I1 – 2I2 + 12I3 = 10
Now, the voltage across R is VR = (I2 – I3) R
Now, I2 = \(\frac{360}{4800} = \frac{3}{40}\)
Now, I3 = \(\frac{4060}{4800} = \frac{203}{240}\) A
Therefore, VR = (I2 – I3) R = \(\Big[\frac{3}{40} – \frac{203}{240}\Big] 2\) = 1.54 V.
advertisement

10. In a dual slop integrating type digital voltmeter, the first integrating is carried out for 10 periods of the supply frequency of 50 Hz. If the reference voltage used is 2 V, the total conversion time for an input of 1 V is _________
a) 0.01 s
b) 0.05 s
c) 0.1 s
d) 1 s
View Answer

Answer: c
Explanation: In a dual slope integrating digital voltmeter,
\((\frac{t_1}{t_2})\) Vin = Vref
Where, t1 = first integration time = 10 × \(\frac{1}{50}\) = 0.25
But Vin = 1 V and Vref = 2 V
∴ t2 = \(\frac{V_{in} t_1}{V_{ref}}\) = 0.1 s.

11. A rectifier type AC voltmeter consists of a series resistance R, an ideal full-wave rectifier bridge and a PMMC instrument. The internal resistance and a full-scale deflection produced by a DC current are 100 Ω and 1 mA respectively. A voltage of 100 V (rms) is applied to the input terminals. The value of R required is _________
a) 63.56 Ω
b) 89.83 Ω
c) 89.83 kΩ
d) 141.3 kΩ
View Answer

Answer: c
Explanation: VOAverage = 0.636 × \(\sqrt{2}\)Vrms = 0.8993 Vrms
The deflection with AC is 0.8993 times that with DC for the same value of voltage V
SAC = 0.8993 SDC
SDC of a rectifier type instrument is \(\frac{1}{I_{fs}}\) where Ifs is the current required to produce full scale deflection, Ifs = 1 mA; Rm = 100 Ω; SDC = 103 Ω/V
SAC = 0.8993 × 1000 = 899.3 Ω/V. Resistance of multiplier RS = SAC V – Rm – 2Rd, where Rd is the resistance of diode, for ideal diode Rd = 0
∴ RS = 899.3 × 100 – 100 = 89.83 kΩ.

12. A 1 μF capacitor is connected across a 50 V battery. The battery is kept closed for a long time. The circuit current and voltage across capacitor is __________
a) 0.5 A and 0 V
b) 0 A and 50 V
c) 20 A and 5 V
d) 0.05 A and 5 V
View Answer

Answer: b
Explanation: We know that, when the capacitor is fully charged, it acts as an open circuit.
That is when the capacitor is fully charged.
So, the circuit current and voltage across capacitor are 0 A and 50 V respectively.

13. In the circuit given below, the switch is closed at t = 0. At t = 0+ the current through C is ___________
The voltage across capacitor when switch is closed at t = ∞ is 50 V In the circuit
a) 2 A
b) 3 A
c) 4 A
d) 5 A
View Answer

Answer: d
Explanation: We know that,
When the capacitor is fully charged, it acts as a short circuit.
The equivalent resistance Req = (10 + 10) Ω
= 20 Ω
Given voltage = 100 V
So, current through C = \(\frac{100}{20}\) A = 5 A.

14. A digital Multimeter reads 10 V when fed with a triangular wave, which is symmetric about the time-axis. If the input is same, the rms reading meter will read?
a) \(\frac{20}{\sqrt{3}}\)
b) –\(\frac{10}{\sqrt{3}}\)
c) –\(\frac{20}{\sqrt{3}}\)
d) \(\frac{10}{\sqrt{3}}\)
View Answer

Answer: d
Explanation: For triangular wave Average value = \(\frac{V_m}{3}\), rms value = \(\frac{V_m}{\sqrt{3}}\)
∴ \(\frac{V_m}{3}\) = 10 V or, Vm = 30 V.

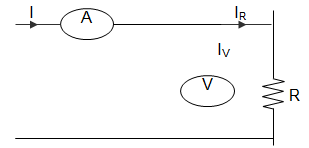

15. A resistance R is measured using the connection shown in the below figure.
The value of R is 12.25 Ω for error of ammeter is ± 0.3% & that of voltmeter±0.4%
The current measured is 10 A on ranges 100A and the voltage measured is 125 V on 150 V range. The scales of the ammeter and voltmeter are uniform. The total number of scale divisions of the ammeter is 100 and that of the voltmeter is 150. The scale division can be distinguished. The constructional error of the ammeter is ± 0.3% and that of voltmeter±0.4%. The resistance of the ammeter is 0.25 Ω. The value of R is _________
a) 12.75 Ω
b) 12.0 Ω
c) 12.25 Ω
d) 12.5 Ω
View Answer

Answer: c
Explanation: Percentage error in ammeter = ± \(\frac{1}{10×100}\) × 100 = ± 0.1%
Percentage error in voltmeter= ±\(\frac{1}{10 ×150}\) × 100 = ± 0.067%
So, δI = ± 0.3 ± 0.1 = ± 0.4%
δV = ± 0.4 ± 0.067 = ± 0.467%
R = \(\frac{V}{I}\)
So, error = ± δV ± δI = ± 0.867
Measured value of resistance = Rm = \(\frac{125}{10}\) = 12.5
∴ True value = Rm(1-\(\frac{R_a}{R_m}\)) = 12.25 Ω.
