# Electronic Devices and Circuits Questions and Answers – Biasing in BJT Amplifier Circuits

«
»

This set of Electronic Devices and Circuits Multiple Choice Questions & Answers (MCQs) focuses on “Biasing in BJT Amplifier Circuits”.

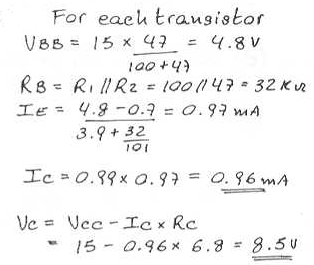

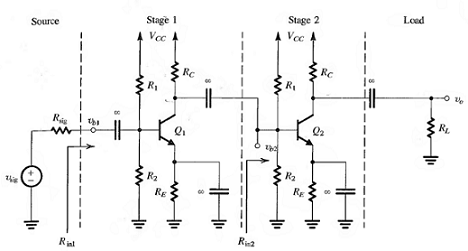

1. For Vcc = 15V, R1 = 100 kΩ, R(E) = 3.9 kΩ, R(C) = 6.8 kΩ and ß = 100, determine the dc collector current for each transistor in the figure shown below. a) 0.29 mA
b) 0.48 mA
c) 0.96 mA
d) 1.92 mA

2. For Vcc = 15V, R1 = 100 kΩ, R(E) = 3.9 kΩ, R(C) = 6.8 kΩ and ß = 100, determine the dc collector voltage for each transistor in the figure shown below. a) 4.25 V
b) 8.5 V
c) 12.75 V
d) 17 V

3. Find R (in 1) for R (sig) = 5 kΩ in the figure shown below. a) 2.4 kΩ
b) 4.8 kΩ
c) 17.3 kΩ
d) 34.6 kΩ

Explanation: It is the parallel combination of the 32 kΩ resistor and 2.6 kΩ resistor respectively.
Note: Join free Sanfoundry classes at Telegram or Youtube

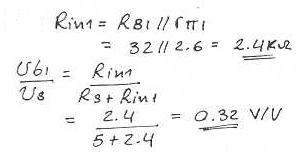

4. Find Vb1/Vsig for R(sig) = 5 kΩ from the following figure. a) 0.08 V/V
b) 0.16 V/V
c) 0.24 V/V
d) 0.32 V/V

5. Find R (in 2) from the following figure. a) 2.4 kΩ
b) 4.8 kΩ
c) 17.3 kΩ
d) 34.6 kΩ

Explanation: It is the parallel combination of the 32 kΩ resistor and 2.6 kΩ resistor respectively.

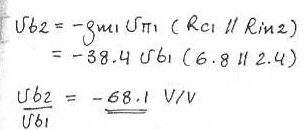

6. Find Vb2/Vb1 from the following figure. a) -34 V/V
b) -51 V/V
c) – 68.1 V/V
d) -100 V/V

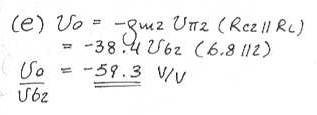

7. For Rl = 2 kΩ find Vo/Vb2 from the following figure. a) -59.3 V/V
b) -29.7 V/V
c) -89.1 V/V
d) None of the mentioned

8. Find the overall voltage gain figure. a) 323 V/V
b) 646 V/V
c) 969 V/V
d) 1292 V/V

Sanfoundry Global Education & Learning Series – Electronic Devices and Circuits.
