Electronic Devices and Circuits Questions and Answers – Biasing Parameters

This set of Electronic Devices and Circuits Multiple Choice Questions & Answers (MCQs) focuses on “Biasing Parameters”.

1. The current gain of BJT is_________
a) gmro
b) gm/ro
c) gmri
d) gm/ri
View Answer

Answer: c
Explanation: We know, current gain AV=hfe. In π model, hfe is referred to β.
We know, ri= β/gm.
From this, β=rigm.

2. For the amplifier circuit of fig. The transistor has β of 800. The mid band voltage gain VO/VI of the circuit will be_________
The mid band voltage gain VO/VI of the circuit will be =1 for transistor has β of 800
a) 0
b) <1
c) =1
d) 800
View Answer

Answer: c
Explanation: The circuit is PNP transistor, collector coupled amplifier. The voltage gain is unity for a CC amplifier. Hence on observation, the CC amplifier gives a unity gain.

3. In a bipolar transistor at room temperature, the emitter current is doubled the voltage across its base emitter junction_________
a) doubles
b) halves
c) increase by about 20mV
d) decreases by about 20mV
View Answer

Answer: c
Explanation: The change in voltage with temperature can be found by, V(T) = 2.3m(∆T)VO . In a bipolar transistor at room temperature if the emitter current is doubled the voltage across its base emitter junction thereby doubles.
advertisement
advertisement

4. A common emitter transistor amplifier has a collector current of 10mA, when its base current is 25µA at the room, temperature. What is input resistance?
a) 3kΩ
b) 5kΩ
c) 1kΩ
d) 7kΩ
View Answer

Answer: c
Explanation: We know, β/gm=ri
= (IC/IB)/(IC/VT)=VT/IB=25m/25µ=1k.

5. For an NPN transistor connected as shown in below, VBE=0.7V. Give that reverse saturation current of junction at room temperature is 10-13A, the emitter current is_________
The emitter current is 49mA for reverse saturation current of junction is 10-13A
a) 30mA
b) 39mA
c) 29mA
d) 49mA
View Answer

Answer: d
Explanation: When the collector and base are shorted, the transistor behaves as a normal diode. So, the diode equations imply. IE=IO(eV/V0-1). We get, IE=49mA.
Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

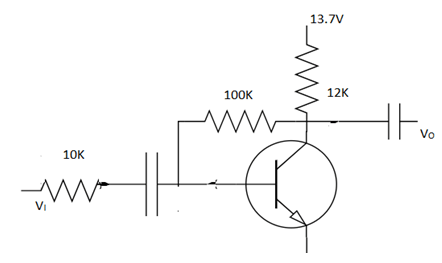

6. The voltage gain of given circuit below is_________
The voltage gain of given circuit below is 10 for the given circuit
a) 100
b) 20
c) 10
d) 30
View Answer

Answer: c
Explanation: The gain for the given circuit can be found by, AV=RF/RS
=100K/10K=10.

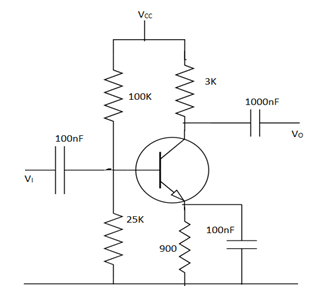

7. A small signal source V(t)=Acos20t+Bsin10000t, is applied to a transistor amplifier as shown. The transistor has β=150 and hie=3KΩ. What will be the VO?
The VO is -150Bsin10000t for small signal source V(t)=Acos20t+Bsin10000t applied
a) 1500(Acos20t+Bsin10000t)
b) -150(Acos20t+Bsin10000t)
c) -1500Bsin10000t
d) -150Bsin10000t
View Answer

Answer: d
Explanation: AV=-hfe RLI/hie=3*150/3=-150. So, VO=-150V(t)
But cos20t has low frequency so capacitors are open circuited. Only, the sine component is allowed.
So, Vo =-150Bsin10000t.

8. Which of the following statements are correct for basic transistor configurations?
a) CB Amplifiers has low input impedance and low current gain
b) CC Amplifiers has low input impedance and high current gain
c) CE Amplifiers has very poor voltage gain but very high input impedance
d) The current gain of CB Amplifier is higher than the current gain of CC Amplifiers
View Answer

Answer: a
Explanation: The CE amplifier has moderate input and output impedances. The CC amplifier has unity voltage gain. The common ba se amplifier has a unity current gain and high voltage gain.
advertisement

9. The collector current is 2.945A and α=0.98. The leakage current is 2µA. What is the emitter current and base current?
a) 3mA and 55µA
b) 2.945mA and 55µA
c) 3.64mA and 33µA
d) 5.89mA and 65µA
View Answer

Answer: a
Explanation: (IC – ICBO)/α=IE
= (2.945-0.002)/0.98=3mA.
IE=IC+IB . So, IB=3-2.495=0.055mA=55µA.
advertisement

10. The change in collector emitter voltage from 6V to 9V causes increase in collector current from 6mA to 6.3mA. Determine the dynamic output resistance.
a) 20kΩ
b) 10kΩ
c) 50kΩ
d) 60kΩ
View Answer

Answer: b
Explanation: ro=∆VCE/∆IC
=3/0.3m=10kΩ.

11. A transistor is connected in CB configuration. The emitter voltage is changed by 200mV, the emitter by 5mA. During this transition the collector base voltage is kept constant. What is the input dynamic resistance?
a) 30Ω
b) 60Ω
c) 40Ω
d) 50Ω
View Answer

Answer: c
Explanation: The ratio of change in emitter base voltage (∆VEB) to resulting change in emitter current (∆IE) at constant collector base voltage (VCB) is defined as input resistance. This is denoted by ri.
We know, ∆VEB/∆IE=ri
=200/5=40Ω.

Sanfoundry Global Education & Learning Series – Electronic Devices and Circuits.
