Android View Example

This Android Program demonstrates Views using Java.

Here is source code of the Program demonstrates Views in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

There may be many times where instead of using android custom view u would require to create your own view. Creating new Views gives you the power to fundamentally shape the way your applications look and feel. By creating your own controls, you can create UIs that are uniquely suited to your needs. To create new controls from a blank canvas, you extend either the View or SurfaceView class. The View class provides a Canvas object with a series of draw methods and Paint classes. Use them to create a visual interface with bitmaps and raster graphics. You can then override user events, including screen touches or key presses to provide interactivity.This class teaches u to create your own view by extending from the View class in android.

Main Activity


package com.example.paintapp;

import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Button start = (Button)findViewById(R.id.button1);
        start.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent("com.example.paintapp.paint"));
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    @Override
    protected void onPause() {
        // TODO Auto-generated method stub
        super.onPause();
        finish();
    }

}

Paint

package com.example.paintapp;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class paint extends Activity implements OnClickListener {

    paint_draw var;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.paint);
        Button red = (Button) findViewById(R.id.red);
        Button blue = (Button) findViewById(R.id.blue);
        Button black = (Button) findViewById(R.id.black);
        red.setOnClickListener(this);
        blue.setOnClickListener(this);
        black.setOnClickListener(this);
    }

    @Override
    public void onClick(View v) {
        // TODO Auto-generated method stub
        switch (v.getId()) {
        case R.id.black:
            startActivity(new Intent("com.example.paintapp.black_rect"));
            break;
        case R.id.blue:
            startActivity(new Intent("com.example.paintapp.blue_rect"));
            break;
        case R.id.red:
            startActivity(new Intent("com.example.paintapp.red_rect"));
            break;
        }
    }

}

Black_rect


package com.example.paintapp;

import android.app.Activity;
import android.os.Bundle;

public class black_rect extends Activity{

    paint_draw var;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        var = new paint_draw(this);
        var.method("black");
        setContentView(var);
    }

}

Paint_draw


package com.example.paintapp;

import org.apache.http.client.CircularRedirectException;

import android.annotation.SuppressLint;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Rect;
import android.view.View;

public class paint_draw extends View{

    String color,shape;
    Paint blue =new Paint();

    public paint_draw(Context context) {
        super(context);
        // TODO Auto-generated constructor stub
    }

    public void method(String color){
      if(color=="blue"){
          blue.setColor(Color.BLUE);
      }
      if(color=="red"){
         blue.setColor(Color.RED);
      }
      if(color=="black"){
          blue.setColor(Color.BLACK);
      }
    }
    @SuppressLint("DrawAllocation")
    @Override
    protected void onDraw(Canvas canvas) {
        // TODO Auto-generated method stub
        super.onDraw(canvas);
        Rect myrect = new Rect(0, 0, canvas.getWidth(), canvas.getHeight()/2);
        blue.setStyle(Paint.Style.FILL);
        canvas.drawRect(myrect, blue);
    }

}

Blue_rect

Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!


package com.example.paintapp;

import android.app.Activity;
import android.os.Bundle;

public class blue_rect extends Activity{

    paint_draw var;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        var = new paint_draw(this);
        var.method("red");
        setContentView(var);
    }

}

Red_rect


package com.example.paintapp;

import android.app.Activity;
import android.os.Bundle;

public class red_rect extends Activity {

    paint_draw var;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        var = new paint_draw(this);
        var.method("red");
        setContentView(var);
    }

}

Xml

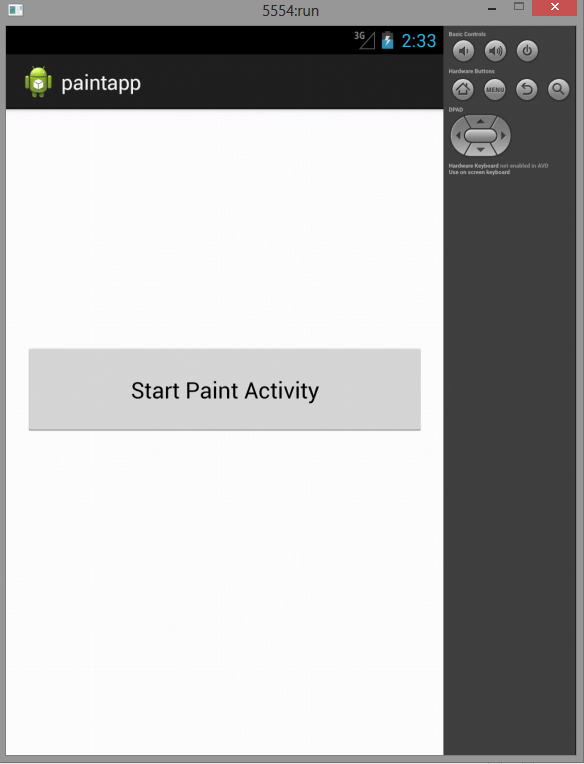

Main


<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <Button
        android:id="@+id/button1"
        android:layout_width="match_parent"
        android:layout_height="80dp"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="190dp"
        android:text="Start Paint Activity"
        android:textDirection="ltr"
        android:textAlignment="center"
        android:textSize="20dp"/>

</RelativeLayout>

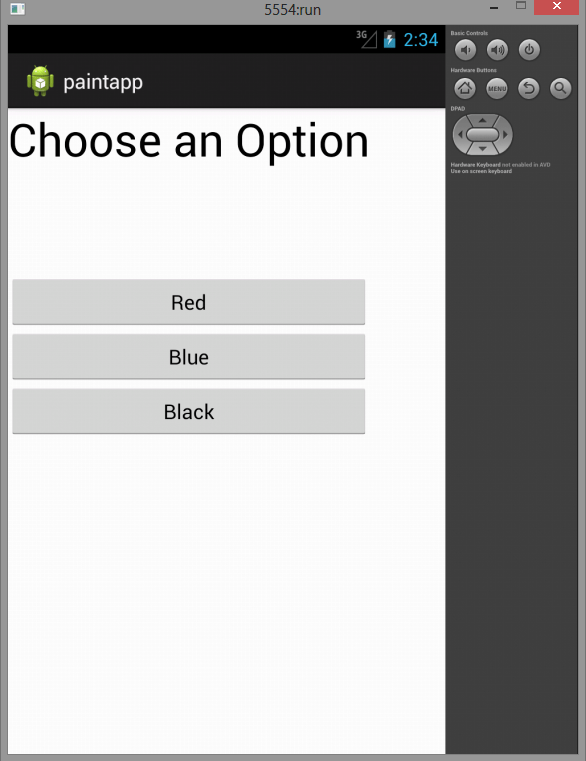

Paint


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:orientation="vertical" >

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="66dp"
        android:text="Choose an Option"
        android:textSize="40dp"
        android:textAppearance="?android:attr/textAppearanceLarge" />

    <Button
        android:id="@+id/red"
        android:layout_marginTop="80dp"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Red" />

    <Button
        android:id="@+id/blue"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Blue" />

    <Button
        android:id="@+id/black"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Black" />

</LinearLayout>

AndroidManifest


<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.paintapp"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="14"
        android:targetSdkVersion="17" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.example.paintapp.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity
            android:name="com.example.paintapp.paint"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="com.example.paintapp.paint" />

                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>

        <activity
            android:name="com.example.paintapp.red_rect"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="com.example.paintapp.red_rect" />

                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>
        <activity
            android:name="com.example.paintapp.blue_rect"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="com.example.paintapp.blue_rect" />

                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>
        <activity
            android:name="com.example.paintapp.black_rect"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="com.example.paintapp.black_rect" />

                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>
    </application>

</manifest>
