Android Program to Demonstrate ShapeDrawable

Here is source code of the Program to Demonstrate Shape Drawables in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Shape Drawables resources let you define simple primitive shapes by defining their dimensions, background, and stroke/outline using the shape tag.Each shape consists of a type (specified via the shape attribute), attributes that define the dimensions of that shape, and subnodes to specify padding, stroke (outline), and background color values.
Android currently supports the following shape types as values for the shape attribute :
1.Line
2.Oval
3.Rectangle
4.Ring
U define a shape in the /res/drawables directory of your Application and when applying to a component say a text view u mention in its android:background field.
The following given code adds a rectangular Shape Drawable with a solid fill, rounded edges, 10dp outline, and 10dp of padding around each edge.

Main Activity

package com.example.round_shape;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

}

Actvity_Main

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <TextView
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:text="@string/hello_world"
        android:background="@drawable/round"
         />

</RelativeLayout>

round

advertisement
advertisement
<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle" >

    <solid android:color="#f0600000" />

    <stroke
        android:width="10dp"
        android:color="#00FF00" />

    <corners android:radius="15dp" />

    <padding
        android:bottom="10dp"
        android:left="10dp"
        android:right="10dp"
        android:top="10dp" />

</shape>

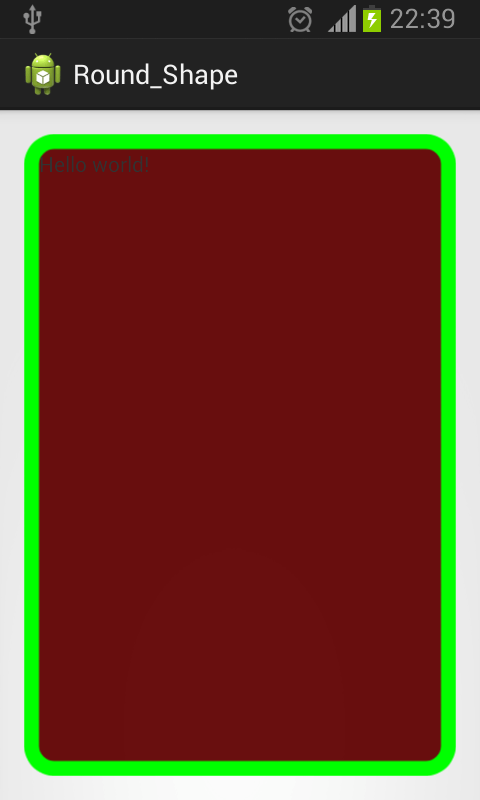

Screenshot_2013-12-06-22-39-29
