Android MediaRecorder Example

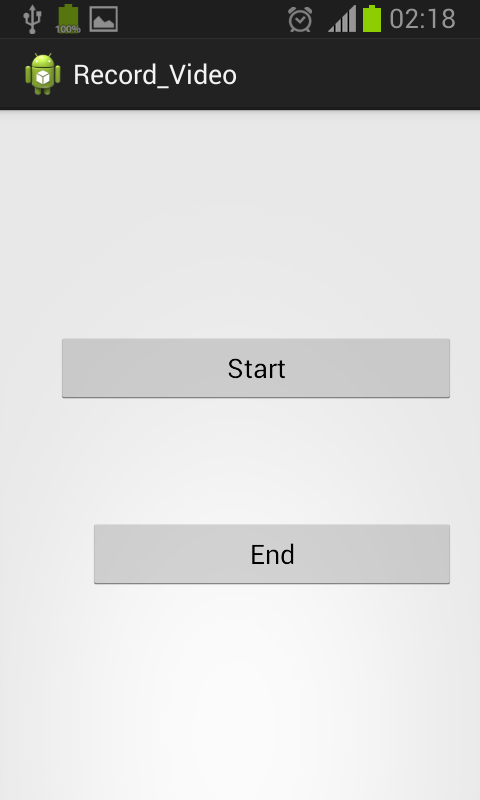

Here is source code of the Program to Record Media Using Media Recorder in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity

package com.example.record_video;

import java.io.File;
import java.io.IOException;

import android.app.Activity;
import android.content.ContentResolver;
import android.content.ContentValues;
import android.content.Intent;
import android.media.MediaRecorder;
import android.net.Uri;
import android.os.Bundle;
import android.os.Environment;
import android.provider.MediaStore;
import android.util.Log;
import android.view.View;
import android.widget.Toast;

public class MainActivity extends Activity {

    MediaRecorder recorder;
    File audiofile = null;
    private static final String TAG = "SoundRecordingActivity";
    private View start;
    private View stop;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        start = findViewById(R.id.start);
        stop = findViewById(R.id.end);
    }

    public void startRecording(View view) throws IOException {

        start.setEnabled(false);
        stop.setEnabled(true);

        File sampleDir = Environment.getExternalStorageDirectory();
        try {
            audiofile = File.createTempFile("sound", ".3gp", sampleDir);
        } catch (IOException e) {
            Log.e(TAG, "sdcard access error");
            return;
        }
        recorder = new MediaRecorder();
        recorder.setAudioSource(MediaRecorder.AudioSource.MIC);
        recorder.setOutputFormat(MediaRecorder.OutputFormat.THREE_GPP);
        recorder.setAudioEncoder(MediaRecorder.AudioEncoder.AMR_NB);
        recorder.setOutputFile(audiofile.getAbsolutePath());
        recorder.prepare();
        recorder.start();
    }

    public void stopRecording(View view) {
        start.setEnabled(true);
        stop.setEnabled(false);
        recorder.stop();
        recorder.release();
        addRecordingToMediaLibrary();
    }

    protected void addRecordingToMediaLibrary() {
        ContentValues values = new ContentValues(4);
        long current = System.currentTimeMillis();
        values.put(MediaStore.Audio.Media.TITLE, "audio" + audiofile.getName());
        values.put(MediaStore.Audio.Media.DATE_ADDED, (int) (current / 1000));
        values.put(MediaStore.Audio.Media.MIME_TYPE, "audio/3gpp");
        values.put(MediaStore.Audio.Media.DATA, audiofile.getAbsolutePath());
        ContentResolver contentResolver = getContentResolver();

        Uri base = MediaStore.Audio.Media.EXTERNAL_CONTENT_URI;
        Uri newUri = contentResolver.insert(base, values);

        sendBroadcast(new Intent(Intent.ACTION_MEDIA_SCANNER_SCAN_FILE, newUri));
        Toast.makeText(this, "Added File " + newUri, Toast.LENGTH_LONG).show();
    }

}

Actvity_Main

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <Button
        android:id="@+id/start"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentRight="true"
        android:layout_alignParentTop="true"
        android:layout_marginLeft="21dp"
        android:layout_marginTop="132dp"
        android:text="Start" />

    <Button
        android:id="@+id/end"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/start"
        android:layout_alignRight="@+id/start"
        android:layout_below="@+id/start"
        android:layout_marginLeft="21dp"
        android:layout_marginTop="76dp"
        android:text="End" />

</RelativeLayout>

AndroidManifest

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.record_video"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="14"
        android:targetSdkVersion="18" />

    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.RECORD_AUDIO" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.example.record_video.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>
