Android Program to Add Action to Home Icon using set parentActivityName

Here is source code of the Program to add Action to Home Icon using set the parentActivityName in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity

package com.example.set_parent_name;

import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.content.IntentFilter;
import android.view.Menu;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Button launch_act = (Button)findViewById(R.id.button1);
        launch_act.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                Intent intent = new Intent(getApplicationContext(), Second.class);
                startActivity(intent);
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

}

Second

package com.example.set_parent_name;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;

public class Second extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_second);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.second, menu);
        return true;
    }

}

Notice the android:parentActivityName attribute of the second Activity defined here.

Manifest

advertisement
advertisement
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.set_parent_name"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="14"
        android:targetSdkVersion="18" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.example.set_parent_name.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity
            android:name="com.example.set_parent_name.Second"
            android:label="@string/title_activity_second"
            android:parentActivityName="android.intent.action.MAIN" >
        </activity>
    </application>

</manifest>

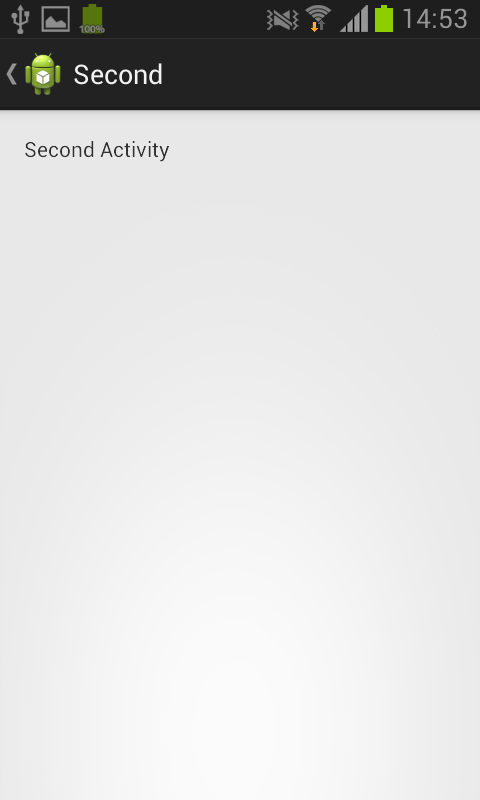

Screenshot_2013-12-24-14-53-58[1]

Sanfoundry Global Education & Learning Series – 100+ Java Android Tutorials.

Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!
If you wish to look at all Tutorials, go to Java Android Tutorials.

If you find any mistake above, kindly email to [email protected]
