Android Preference Activity

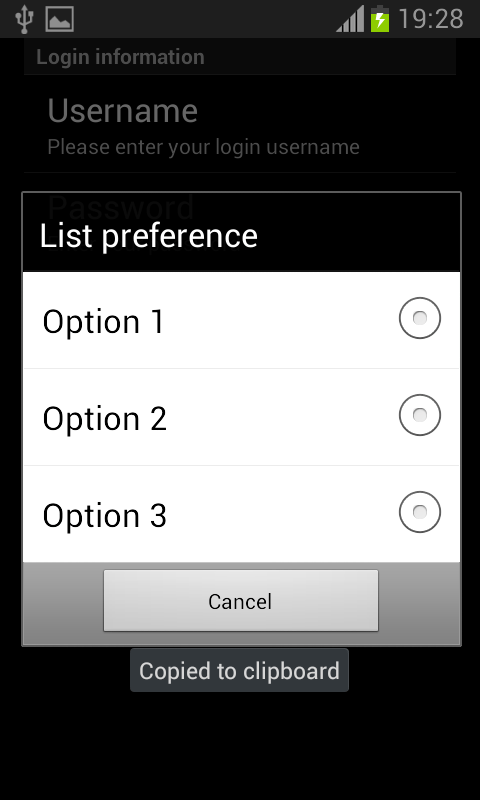

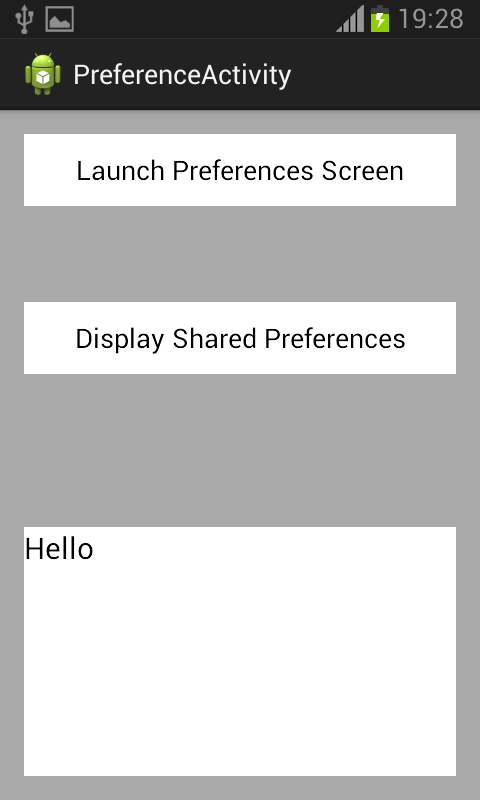

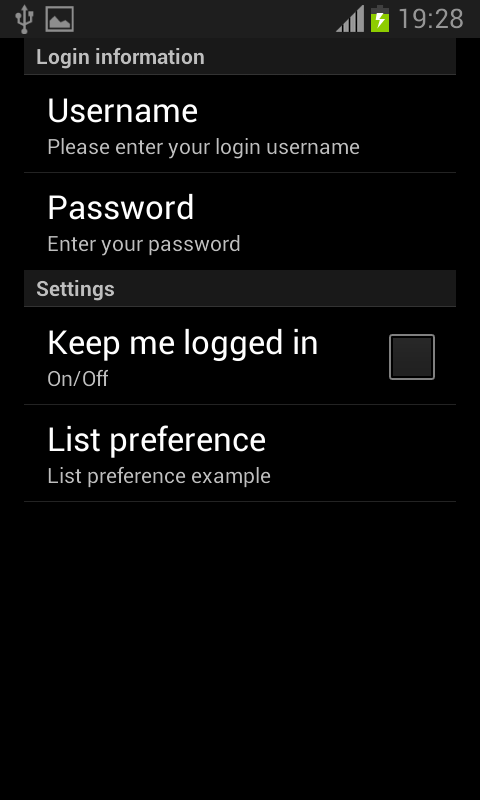

Here is source code of the Program to Demonstrate Preferenece Activity in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity

package com.example.preferenceactivity;

import android.app.Activity;
import android.content.Intent;
import android.content.SharedPreferences;
import android.os.Bundle;
import android.preference.PreferenceManager;
import android.view.Menu;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

public class MainActivity extends Activity {

    TextView text;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Button but1 = (Button) findViewById(R.id.Prefsbutton);
        Button but2 = (Button) findViewById(R.id.GetPreferencesbutton);
        text = (TextView) findViewById(R.id.Prefstext);
        but1.setOnClickListener(new View.OnClickListener() {

            Intent in = new Intent("android.intent.action.Prefs");

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(in);
            }
        });

        but2.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                displaySharedPreferences();
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    private void displaySharedPreferences() {
        SharedPreferences prefs = PreferenceManager
                .getDefaultSharedPreferences(this);

        String username = prefs.getString("username", null);
        String passw = prefs.getString("password", null);
        boolean checkBox = prefs.getBoolean("checkBox", false);
        String listPrefs = prefs.getString("listpref", "Default list prefs");

        StringBuilder builder = new StringBuilder();
        builder.append("Username: " + username + "\n");
        builder.append("Password: " + passw + "\n");
        builder.append("Keep me logged in: " + String.valueOf(checkBox) + "\n");
        builder.append("List preference: " + listPrefs);

        text.setText(builder.toString());
    }
}

PrefFragement

package com.example.preferenceactivity;

import android.os.Bundle;
import android.preference.PreferenceFragment;

public class PrefFragement extends PreferenceFragment{

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // Load the preferences from an XML resource
        addPreferencesFromResource(R.xml.pref);
    }
}

Prefs

package com.example.preferenceactivity;

import android.os.Bundle;
import android.preference.PreferenceActivity;

public class Prefs extends PreferenceActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);

        //addPreferencesFromResource(R.xml.pref);
        getFragmentManager().beginTransaction().replace(android.R.id.content, new PrefFragement()).commit();
    }

}

Activity_Main


<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity"
    android:background="@android:color/darker_gray">

    <TextView
        android:id="@+id/Prefstext"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentLeft="true"
        android:layout_alignParentRight="true"
        android:layout_below="@+id/GetPreferencesbutton"
        android:layout_marginTop="102dp"
        android:text="Hello"
        android:textSize="20dp"
        android:background="@android:color/white"
        android:textColor="@android:color/black"/>

    <Button
        android:id="@+id/Prefsbutton"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:text="Launch Preferences Screen"
        android:background="@android:color/white" />

    <Button
        android:id="@+id/GetPreferencesbutton"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/Prefstext"
        android:layout_below="@+id/Prefsbutton"
        android:layout_marginTop="64dp"
        android:text="Display Shared Preferences"
        android:background="@android:color/white" />

</RelativeLayout>
