Android Program to Show Usage of Scroll View

This Android Program lets you create a Scroll View in an Activity using Java.

Here is source code of the Program to create a Scroll View in an Activity. The program is successfully compiled and run on a Windows system. The program output is also shown below.

Main Activity


package com.example.creating_scroll_view;

import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Button b1 = (Button) findViewById(R.id.button1);
        Button b2 = (Button) findViewById(R.id.button2);
        Button b3 = (Button) findViewById(R.id.button3);
        Button b4 = (Button) findViewById(R.id.button4);
        Button b5 = (Button) findViewById(R.id.button5);
        Button b6 = (Button) findViewById(R.id.button6);
        Button b7 = (Button) findViewById(R.id.button7);
        Button b8 = (Button) findViewById(R.id.button8);
        Button b9 = (Button) findViewById(R.id.button9);
        Button b10 = (Button) findViewById(R.id.button10);

        b1.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.first"));
            }
        });

        b2.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.second"));
            }
        });
        b3.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.third"));
            }
        });
        b4.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.fourth"));
            }
        });
        b5.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.fifth"));
            }
        });
        b6.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.sixth"));
            }
        });
        b7.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.seventh"));
            }
        });
        b8.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.eigth"));
            }
        });
        b9.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.ninth"));
            }
        });
        b10.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                startActivity(new Intent(
                        "com.example.creating_scroll_view.tenth"));
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

}

First Activity


package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class first extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.first);
    }
}

Second Activity

advertisement

package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class second extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.second);
    }
}

Third Activity


package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class third extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.third);
    }
}

Fourth Activity

Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class fourth extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.fourth);
    }
}

Fifth Activity


package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class fifth extends Activity{


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.fifith);
    }
}

Sixth Activity


package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class fourth extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.fourth);
    }
}

Seventh Activity


package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class seventh extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.seventh);
    }
}

Eigth Activity



package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class eigth extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.eighth);
    }

}

Ninth Activity

advertisement

package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class ninth extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.ninth);
    }
}

Tenth Activity


package com.example.creating_scroll_view;

import android.app.Activity;
import android.os.Bundle;

public class tenth extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.tenth);
    }
}

Xml

Main


<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    android:background="@drawable/background1"
    tools:context=".MainActivity" >

    <TextView
        android:id="@+id/textView1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_marginLeft="14dp"
        android:layout_marginTop="26dp"
        android:text="A scroll View"
        android:textAppearance="?android:attr/textAppearanceLarge" />

    <ScrollView
        android:layout_width="match_parent"
        android:layout_height="wrap_content" >

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical" >

            <Button
                android:id="@+id/button1"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignParentLeft="true"
                android:layout_below="@+id/textView1"
                android:layout_marginTop="108dp"
                android:text="Button1" />

            <Button
                android:id="@+id/button2"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignRight="@+id/button1"
                android:layout_below="@+id/button1"
                android:text="Button2" />

            <Button
                android:id="@+id/button3"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button2"
                android:layout_below="@+id/button2"
                android:text="Button3" />

            <Button
                android:id="@+id/button4"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button3"
                android:layout_below="@+id/button3"
                android:text="Button4" />

            <Button
                android:id="@+id/button5"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button4"
                android:layout_below="@+id/button4"
                android:text="Button5" />
            <Button
                android:id="@+id/button6"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button4"
                android:layout_below="@+id/button4"
                android:text="Button6" />
            <Button
                android:id="@+id/button7"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button4"
                android:layout_below="@+id/button4"
                android:text="Button7" />
            <Button
                android:id="@+id/button8"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button4"
                android:layout_below="@+id/button4"
                android:text="Button8" />
            <Button
                android:id="@+id/button9"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button4"
                android:layout_below="@+id/button4"
                android:text="Button9" />

            <Button
                android:id="@+id/button10"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_alignLeft="@+id/button4"
                android:layout_below="@+id/button4"
                android:text="Button10" />

        </LinearLayout>
    </ScrollView>

</RelativeLayout>

First


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image1">


</LinearLayout>

Second


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image6">


</LinearLayout>

Third


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image9">


</LinearLayout>

Fourth


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image4" >


</LinearLayout>

Fifth


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image3">


</LinearLayout>

Sixth


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/ic_launcher">


</LinearLayout>

Seventh


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image7">


</LinearLayout>

Eighth


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image2">


</LinearLayout>

Ninth


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image5">


</LinearLayout>

Tenth


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/image8" >


</LinearLayout>

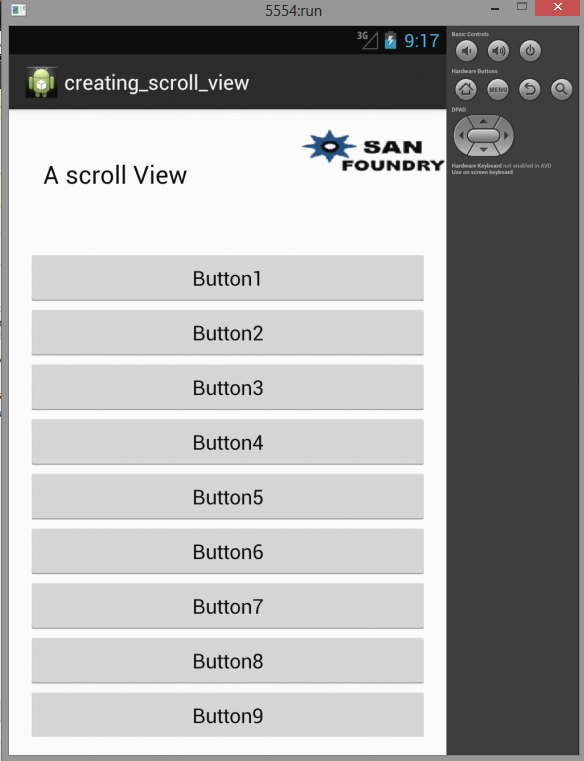

Capture

Sanfoundry Global Education & Learning Series – 100+ Java Android Tutorials.

If you wish to look at all Tutorials, go to Java Android Tutorials.

Get full code here-
creating_scroll_view

Related Posts:

advertisement

Recommended Articles:

  1. Android Program to Show Surface View via Thread
  2. Android Program to Demonstrate Usage of String.xml File
  3. Android Program to Demonstrate a Video View
  4. Grid View Layout in Android with Source Code
  5. Android Program to Demonstrate Action View
  6. How to Create a Text View with Rounded Corner in Android?
  7. Java Program to Create a Vertical Scrollbar with Scroll Button Length 30px
  8. Android Program to Show SMS in Your Phone
  9. How to Add a Custom View to the ActionBar in Android?
  10. How to Specify a Style and Apply to a View in Android?
advertisement
Additional Resources:
Popular Pages:
Subscribe to our Newsletters (Subject-wise). Participate in the Sanfoundry Certification contest to get free Certificate of Merit. Join our social networks below and stay updated with latest contests, videos, internships and jobs!

Youtube | Telegram | LinkedIn | Instagram | Facebook | Twitter | Pinterest
Manish Bhojasia - Founder & CTO at Sanfoundry
Manish Bhojasia, a technology veteran with 20+ years @ Cisco & Wipro, is Founder and CTO at Sanfoundry. He lives in Bangalore, and focuses on development of Linux Kernel, SAN Technologies, Advanced C, Data Structures & Alogrithms. Stay connected with him at LinkedIn.

Subscribe to his free Masterclasses at Youtube & discussions at Telegram SanfoundryClasses.
