Android Program to Demonstrate Touch Listener

This Android Program demonstrates on Touch Listener using Java.

Here is source code of the Program to demonstrates on Touch Listener. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity


package com.example.on_touch_listener;


import android.os.Bundle;
import android.app.Activity;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.view.Menu;
import android.view.MotionEvent;
import android.view.SurfaceHolder;
import android.view.SurfaceView;
import android.view.View;
import android.view.View.OnTouchListener;

public class MainActivity extends Activity implements OnTouchListener {


    Ourview v;
    Bitmap bm;
    float x,y;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        v = new Ourview(this);
        v.setOnTouchListener(this);
        bm = BitmapFactory.decodeResource(getResources(), R.drawable.image4);
        x=0;y=0;
        setContentView(v);
    }

    @Override
    protected void onPause() {
        // TODO Auto-generated method stub
        super.onPause();
        v.pause();
    }

    @Override
    protected void onResume() {
        // TODO Auto-generated method stub
        super.onResume();
        v.resume();
    }

    // surface view is going to be a thread now
    class Ourview extends SurfaceView implements Runnable {

        Thread th = null;
        SurfaceHolder holder;
        boolean var = false;

        public Ourview(Context context) {
            super(context);
            // TODO Auto-generated constructor stub
            holder = getHolder();
        }

        @Override
        public void run() {
            // TODO Auto-generated method stub
            while (var = true) {
                // do stuff
                if (!holder.getSurface().isValid()) {
                    continue;
                }
                Canvas c = holder.lockCanvas();// while drawing on a canvas we
                                                // lock it and after drawing on
                                                // it we unlock it

                c.drawARGB(255, 250, 150, 20);//rgb values
                c.drawBitmap(bm, x -(bm.getWidth()/2), y -(bm.getHeight()/2), null );
                holder.unlockCanvasAndPost(c);
            }
        }

        public void pause() {

            var = false;
            while (true) {
                try {
                    th.join();// would pause the currently executing thread till
                                // the user finishes its job
                } catch (InterruptedException e) {
                    // TODO Auto-generated catch block
                    e.printStackTrace();
                }
                break;
            }
            th = null;
        }

        public void resume() {
            var = true;
            th = new Thread(this);
            th.start();
        }
    }

    @Override
    public boolean onTouch(View v, MotionEvent me) {
        // TODO Auto-generated method stub
        //update the value of x and y on every touch so that our bitmap gets drawn with that x and y position which we just changed on clicking
        x=me.getX();//ontouch listener
        y=me.getY();

            return true;
    }

}

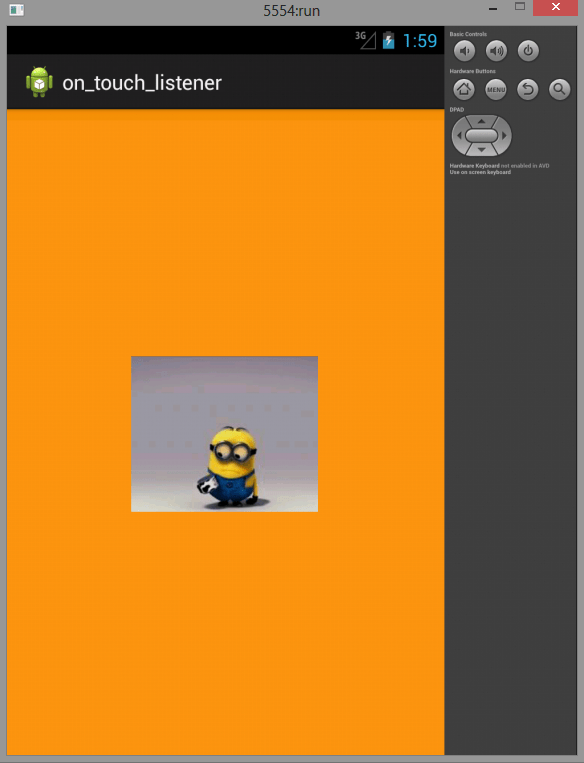

Capture
