Android Program to Demonstrate Action View

Here is the source code to Demonstrate Action View in Android using Java. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity

package com.example.action_view;

import android.annotation.SuppressLint;
import android.app.ActionBar;
import android.app.Activity;
import android.os.AsyncTask;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;

@SuppressLint("NewApi")
public class MainActivity extends Activity {

    private MenuItem menuItem;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        ActionBar actionBar = getActionBar();
        actionBar.setDisplayOptions(ActionBar.DISPLAY_SHOW_HOME
                | ActionBar.DISPLAY_SHOW_TITLE | ActionBar.DISPLAY_SHOW_CUSTOM);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        switch (item.getItemId()) {
        case R.id.menu_load:
            menuItem = item;
            menuItem.setActionView(R.layout.progressbar);
            menuItem.expandActionView();
            TestTask task = new TestTask();
            task.execute("test");
            break;
        default:
            break;
        }
        return true;
    }

    private class TestTask extends AsyncTask<String, Void, String> {

        @Override
        protected String doInBackground(String... params) {
            // Simulate something long running
            try {
                Thread.sleep(2000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            return null;
        }

        @Override
        protected void onPostExecute(String result) {
            menuItem.collapseActionView();
            menuItem.setActionView(null);
        }
    };
}

Activity_Main

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/hello_world" />

</RelativeLayout>

Progressbar

<?xml version="1.0" encoding="utf-8"?>
<ProgressBar xmlns:android="http://schemas.android.com/apk/res/android"
        android:id="@+id/progressBar2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content">

</ProgressBar>

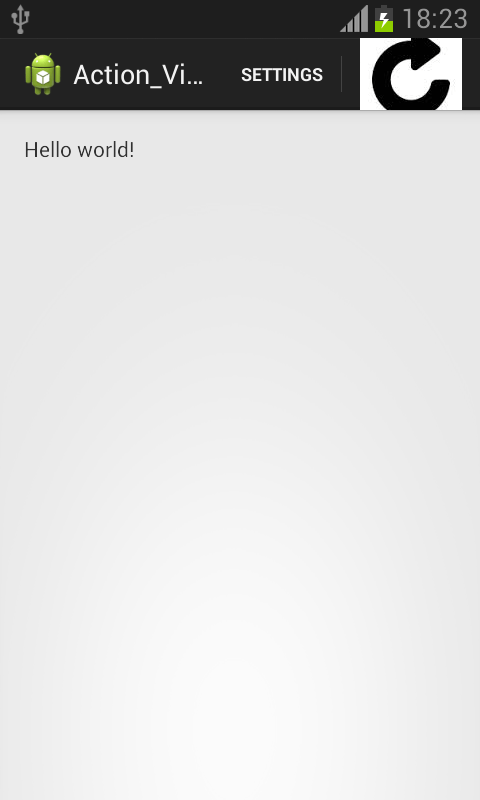

Screenshot_2013-11-16-18-23-27
