PLC Program to Control Conveyor Sequence with Interlock

This is a PLC Program to Control the Sequence of Conveyors and Interlocking Them.

Problem Description

A feeder drops material on the conveyor which sends material for further process through one more conveyor. Conveyor must start automatically when material is dropped on it. Implement automation of this in PLC using Ladder Diagram programming language.

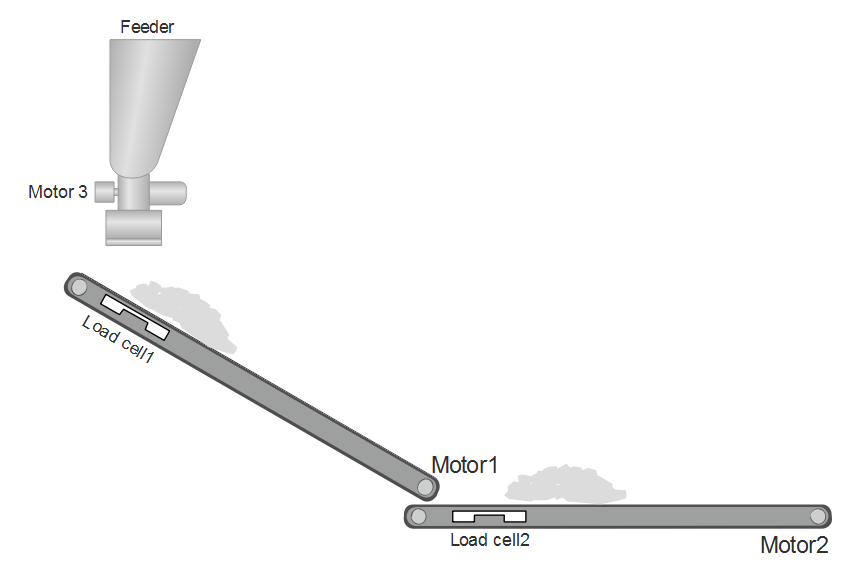

Problem Diagram


Problem Solution
  • Feeder has a motor mounted to feed material on conveyor belts.
  • Load cells are installed at the bottom of conveyor belts to detect if material is present on the conveyor belt.
  • When material falls on conveyor belt 1, motor 1 should start, and when material in present on conveyor belt 2, motor 2 remain On.
  • Switches can also be used sometimes to detect material’s presence. But for more reliable operation, Load cells can be used as shown in the diagram above.
PLC Program

Here is PLC program to Control the Sequence of Conveyors and Interlocking Them, along with program explanation and run time test cases.

List of Inputs and Outputs
 I:1/0	= Start 			(Input)
 I:1/1	= Stop				(Input)
 I:1/2	= Load cell of conveyor 1	(Input)
 I:1/3	= Load cell of conveyor 2	(Input)
 O:2/0	= Latching Coil			(Output)
 O:2/1	= Motor 3 (feeder)		(Output)
 O:2/2	= Motor 1 (Conveyor 1)		(Output)
 O:2/3	= Motor 2 (Conveyor 2)		(Output)

Ladder Diagram of sequencing control of conveyorplc-program-control-sequence-conveyors-interlocking-02

Program Description
  • RUNG000 is for Master Start/Stop the process.
  • RUNG001 is to operate feeder with output address O:2/0 which is operated when Start PB is pressed.
  • RUNG002 is to operate Motor 1 of Conveyor 1 which is operated when Load cell 1 detects the presence of material. As long as material is on the conveyor, Motor 1 remains energized.
  • RUNG003 is to operate Motor 2 of Conveyor 2 O:2/3 which is operated whenever Motor 1 is ON AND/OR as long as material is presence on the conveyor 2 which is detected by Load cell 2 (I:1/3).
Runtime Test Cases
Inputs	                Outputs	     Physical Elements
I:1/0 = 1	        O:2/1 = 1    Start Motor 3
I:1/0 = 1, I:1/2 = 1	O:2/2 = 1    Start Motor 1
I:1/0 = 1, O:2/2 = 1	O:2/3 = 1    Start Motor 2
I:1/0 = 1, I:1/3 = 1	O:2/3 = 1    Start Motor 2
