1. Which of the following structural loads are not applied commonly to a building?
a) Environmental load
b) Live load
c) Dead load
d) Rain load
View Answer
Explanation: Rest three types of loads are always applied to buildings.
2. In the case of a structural member supporting more than one floor with load exceeding 100psf., what is the maximum permitted reduction %?
a) 20
b) 25
c) 15
d) 10
View Answer
Explanation: In buildings supporting more than one floor, studies have shown that rarely it is loaded (a floor) with more than 80% of its design load.
3. Which of the following is statically determinate structure?
a) Two hinged arch
b) Fixed beam
c) Double overhanging
d) Continuous beam
View Answer
Explanation: Double overhanging can be analysed by available three equilibrium equations i.e. ∑Fx=0, ∑Fy=0, and ∑M = 0.
4. In the equation U0.9D + 1.6W + 1.6H, what is the load factor for H if the structural action of H counteracts that due to W or E?
a) 0.005
b) 0
c) 0.1
d) 0.05
View Answer
Explanation: H should be included in design resistance here as lateral earth pressure opposes action of other forces.
5. What will be V_{max} in the above question if the hospital is made up of structural steel frames?
a) .04813gw
b) .01813gw
c) .02813gw
d) .03813gw
View Answer
Explanation: V_{max} = S_{DS}W/(R/I), and value of R foe structural steel frames is approximately 8.
6. If we use link support in a structural system, then how many unknowns would we have?
a) 1
b) 2
c) 0
d) 4
View Answer
Explanation: There will always be only 1 unknown if link support is used and that is the force acting along the axis of the link.
7. Which of the following material is not used in making trusses?
a) Metal bars
b) Concrete
c) Wooden struts
d) Channel
View Answer
Explanation: Concrete is good in compression but weak in tension.

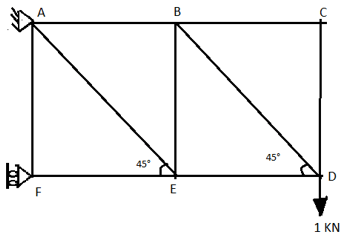

8. Calculate the force in member BC.
a) 0KN
b) \(\sqrt{2}\) KN (TENSILE)
c) 1KN (TENSILE)
d) 1KN (COMPRESSIVE)
View Answer
Explanation: By observing the member BC and member CD, it is not acted upon by any form of external forces, thus zero force is introduced into them. Thus, member BC and member CD are zero forces member.
9. Why is base plate provided in short roof trusses?
a) For rigidity
b) As provision for temperature related expansion/contraction
c) To transmit load effectively
d) For stability
View Answer
Explanation: Base plate is provided on one end of the long roof truss so that it can slide in case of temperature fluctuations.

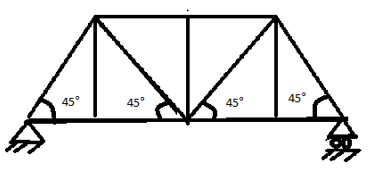

10. Calculate the kinematic indeterminacy of the following pin jointed plane frame.
a) 15
b) 12
c) 13
d) 14
View Answer
Explanation: The truss is supported by hinged support at one end and roller support at other end. Hinged support in a pin jointed plane frame does not offers any degree of freedom as rotation is not considered. But roller support offers horizontal movement and hence degree of freedom is 1. For the given truss, it consists of six pin joint offering two degree of freedom each. Therefore, the degree of freedom is 12 + 1 = 13.

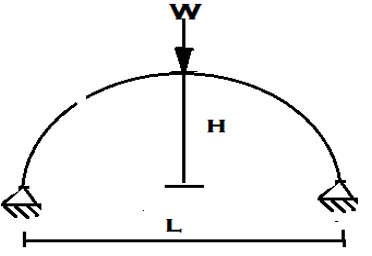

11. Calculate the horizontal thrust for the two hinged semicircular arch loaded with point load at its crown.
a) \(\frac{W}{2\pi}\)
b) \(\frac{4RW}{3\pi}\)
c) \(\frac{W}{\pi}\) ^{2}∞
d) \(\frac{W}{\pi}\)
View Answer
Explanation: ∑H = 0
H = \(\frac{∫M.y dy}{∫y^2 dy}\)
Y = \(\sqrt{R^2 x^2} – \sqrt{R^2(\frac{L^2}{2})} \)
Hence, H = \(\frac{W}{\pi}\)
12. Which of the following is false for deflection of a point nearby a fixed support?
a) Displacement and slope is zero
b) Displacement as well as slope is nonzero
c) Displacement is zero
d) Slope is zero
View Answer
Explanation: Due to presence of vertical reaction and moment, there won’t be any displacement and slope will be zero.
13. ILD for the shear force at the support of the cantilever beam is __________
a)
b)
c)
d)
View Answer
Explanation: For drawing ILD of shear force at the support we must neglect the support at the given point and then lift the member providing it unit displacement upward and let the rest of the beam follow the suit.
14. Which structure will perform better during earthquake?
a) Statically determinate and indeterminate
b) Depends upon magnitude of earthquake
c) Statically indeterminate
d) Statically determinate
View Answer
Explanation: Indeterminate structure has a tendency to redistribute its load to its redundant supports in case of overloading.
15. Which type of structure would cost less in terms of materials?
a) Statically indeterminate
b) Both will cost equally
c) Depends upon loading
d) Statically determinate
View Answer
Explanation: Statically indeterminate would cost less as they can support a loading with thinner members and increased stability.

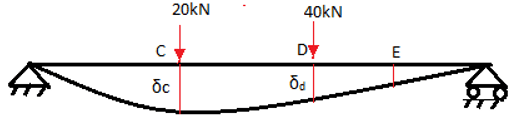

16. The beam shown in the figure carries loads of 20kN and 40kN at point C and D respectively and produces a deflection of 6mm at point E. To produce a deflection of 8mm and 5mm at C and D respectively, the load required at E would be ______
a) 40kN
b) 60kN
c) 20kN
d) 50kN
View Answer
Explanation: By Betti’s Theorem,
20 * 8 + 40 * 5 = W * 6
W = 60kN.
17. What is the relation between Fad and Fda in the below figure?
a) Fad = 2Fda
b) Fad = 2Fda
c) Fad = Fda
d) Fad = Fda
View Answer
Explanation: Magnitudes will be same as stated above. Now, sign will be opposite as slope at B won’t change in deflection diagram and there won’t be and vertical deflection at point C.
18. Calculate the k value of the member BC for the given external redundant truss, considering the horizontal reaction of support B as a redundant force.
a) 2.89kN
b) 0kN
c) 3kN
d) 1kN
View Answer
Explanation: If the support reaction at support is considered 1kN rightward, the horizontal force at the joint will be balanced by horizontal force in member AB. Thus, member BC becomes a zeroforce member.
19. Which of the following is carried by truss members?
a) flexural load
b) bending load
c) axial load
d) shear load
View Answer
Explanation: Truss members are only capable of carrying axial loads.

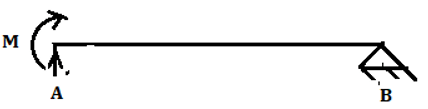

20. Carryover Moment at end B due to moment M applied at end A for the given beam is _______
a) M
b) +\(\frac{M}{2} \)
c) +M
d) 0
View Answer
Explanation: For a moment applied M at free end with hinged support at another end, as the hinged support cannot carry or resist any bending moment thus carry over moment is zero.
21. When a structural member of the uniform section is subjected to a moment at one end only, then the moment required so as to rotate that end to produce a unit slope, is called _____
a) Stiffness of member
b) Capacity of member
c) Potential of member
d) Resistance of member
View Answer
Explanation: When a structural member of the uniform section is subjected to a moment at one end only, then the moment required so as to rotate that end to produce a unit slope, is called stiffness of the member. Stiffness is basically a measure of the ability of the member to resist rotational deformation.
22. If in an interior beam, adjacent structures are exactly similar then the tributary area is:
a) Obtuse triangle
b) Right angled triangle
c) Acute triangle
d) Trapezium
View Answer
Explanation: Since, the structures are similar; angles of triangle will be 45 and 90 degrees.
23. What will be the static lateral force at 10^{th} level of a structure if total gravity load is x and portion assigned to the 10^{th} level is 10%?
a) 0.01x
b) x
c) 0.001x
d) 0.1x
View Answer
Explanation: F_{x} = 0.01w_{x}.
24. If a structure has total 10 joints, then what should be the minimum no. of joints in which equilibrium equations should be concurrently satisfied for stability?
a) 9
b) 10
c) 8
d) 7
View Answer
Explanation: For stability, equilibrium equations should be satisfied concurrently at each and every joint of the structure.
25. If a structure has 2j – r no. of members, then it will be:
a) depends upon structure
b) depends upon magnitude of load
c) unstable
d) stable
View Answer
Explanation: In these cases, structures can be stable as well unstable.
26. The following structure is ________
a) Statically Unstable
b) Geometrically Unstable
c) Internally Unstable
d) Stable
View Answer
Explanation: The following structure has minimum three reaction required for statically stability, it has no concurrent reactions and thus it is geometrically stable. It regains its original position if laterally displaced. Hence, it’s a stable structure.
27. U_{i} is not developed when?
a) Structure deforms
b) Structure elongates
c) External force is zero
d) Structure bends
View Answer
Explanation: U_{i} is developed when structure deforms, which is happening in other three options.
28. Which of the following methods for solving indeterminate structures are easiest for computational purposes?
a) Displacement method
b) Method of consistent deformation
c) Moment area method
d) Force method
View Answer
Explanation: A and C are same options and deflection method requires less effort.
29. Which of the following methods of structural analysis is a force method?
a) three moment equation
b) slope deflection method
c) column analogy method
d) moment distribution method
View Answer
Explanation: The column analogy method is a force method used to analyze the indeterminate structures mainly frames, fixed beams, and arches
30. Forcedisplacement requirement of statically indeterminate structures depend upon which factor?
a) supports
b) material’s response
c) position of load applied
d) magnitude of load applied
View Answer
Explanation: It depends upon material’s response. We have assumed the material to linear elastic for further discussions.

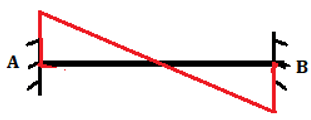

31. To draw qualitative ILD of indeterminate structure, which of the following concept is used.
a) Mullers Breslou’s Principle
b) Kani’s Method
c) Unit Load Method
d) Castigilano’s First energy theorem
View Answer
Explanation: Mullers Breslou’s Principle is very useful in performing a qualitative analysis of ILD for indeterminate structure. Unit Load Method, Castigliano’s First Theorem and Kani’s Method are among various methods to determine displacement and rotation in a structure.
32. Which one the following is the ILD for the bending moment at section C for the given fixed beam?
a)
b)
c)
d)
View Answer
Explanation: For the drawing ILD for the shear force at a particular section, we assume roller hinge in between and provide unit displacement in upward and downward direction alongside. Since it is an indeterminate structure, variation would not be linear as indeterminate cases.
33. Which of the following material will have the highest value of response modification factor?
a) Structural steel frames
b) Reinforced concrete shear walls
c) Wood
d) Reinforced concrete frames with flexible joints
View Answer
Explanation: More ductile a material is, higher will be the value of response modification factor.
