Machine Design Questions and Answers – Hydrodynamics Step Bearing

«
»

This set of Machine Design Multiple Choice Questions & Answers (MCQs) focuses on “Hydrodynamics Bearings”.

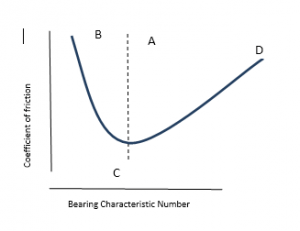

1. The bearing characteristic number shown in the graph is directly proportional to the unit bearing pressure.
The graph is inversely proportional to the unit bearing pressure
a) True
b) False
View Answer

Answer: b
Explanation: BCN=µN/P.

2. In the graph shown below, which regions points the partial metal to metal contact.
The graph is inversely proportional to the unit bearing pressure
a) BC
b) CD
c) Both BC and CD
d) Can’t be determined
View Answer

Answer: a
Explanation: BC is the condition of thin film and hence surfaces are not completely separated.

3. Hydrodynamic lubrication takes place in which region?
The graph is inversely proportional to the unit bearing pressure
a) BC
b) CD
c) Both BC and CD
d) None of the mentioned
View Answer

Answer: b
Explanation: In CD thick film of lubrication has developed.
Note: Join free Sanfoundry classes at Telegram or Youtube
advertisement
advertisement

4. Coefficient of friction is minimum at
The graph is inversely proportional to the unit bearing pressure
a) It is same at each point
b) B
c) C
d) D
View Answer

Answer: c
Explanation: It is minimum at the transition zone.

5. Bearing modulus is the bearing characteristic number at
The graph is inversely proportional to the unit bearing pressure
a) B
b) C
c) D
d) None of the listed
View Answer

Answer: b
Explanation: BCN modulus is the the BCN number corresponding to the minimum coefficient of friction.

6. If viscosity of the lubricant is very low than BCN will lie in the region.
The graph is inversely proportional to the unit bearing pressure
a) BC
b) Point C
c) CD
d) Can’t be determined
View Answer

Answer: a
Explanation: Due to low viscosity, lubricant will not separate the two surfaces resulting in partial contact.

7. The fundamental equation for viscous flow is given by ∆pbhᵌ/6µl where symbols have their usual meanings.
a) 6 is to be replaced by 3
b) 6 is to be replaced by 12
c) 6 is to be replaced by 9
d) 6 is to be replaced by 15
View Answer

Answer: b
Explanation: It is givenby ∆pbhᵌ/12µl.
advertisement

8. A single transverse weld is preferred over double transverse fillet weld.
a) True
b) False
View Answer

Answer: b
Explanation: A single transverse weld is not preferred because the edge of the plate which is not welded can warp out of shape.

9. Transverse fillet weld can be designed using the same equations as of parallel fillet weld.
a) True
b) False
View Answer

Answer: b
Explanation: Vice versa is true as strength of transverse fillet weld is greater than that of parallel fillet weld.
advertisement
