This set of Fluid Mechanics Multiple Choice Questions & Answers (MCQs) focuses on “Most Economic Circular Section – 2”.

1. Estimate the hydraulic depth for a most economical circular channel section in case of maximum velocity.
a) 0.2D
b) 0.3D
c) 0.4D
d) 0.5D
View Answer

Answer: b
Explanation:

Hydraulic depth for economical circular channel section in maximum velocity is 0.3D

2. What is the value of θ in a most economical circular section in case of maximum discharge?
a) 150°
b) 152°
c) 154°
d) 156°
View Answer

Answer: c
Explanation: The equation in case for maximum discharge is,
4Ɵ – 6θ cos⁡ 2θ + sin ⁡2θ = 0 where θ = 154°.

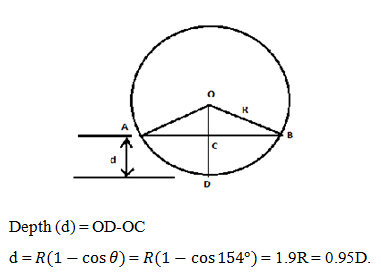

3. Calculate the depth in a most economical circular section in case of maximum discharge.
a) 0.65D
b) 0.75D
c) 0.85D
d) 0.95D
Answer: d
View Answer

Answer: d
Explanation:

The depth in a most economical circular section in case of maximum discharge is 0.95D

4. Calculate the hydraulic radius of a circular channel in case of maximum discharge if the radius of the channel is 4m.
a) 1.7m
b) 2.0m
c) 2.3m
d) 2.6m
View Answer

Answer: c
Explanation:

Hydraulic radius of circular of maximum discharge if radius of channel is 4m is 2.3m

5. Calculate the wetted area of a circular channel section in case of maximum velocity.
a) 5.47m²
b) 6.47m²
c) 7.47m²
d) 8.47m²
View Answer

Answer: a
Explanation:

Subscribe Now: Fluid Mechanics Newsletter | Important Subjects Newsletters

6. Calculate the wetted perimeter of the most economical circular section having radius 3m in case of maximum discharge.
a) 15.12m
b) 16.12m
c) 17.12m
d) 18.12m
View Answer

Answer: b
Explanation: P = 2Rθ = 2(3)(2.6864) = 16.12m.

7. What is the value of wetted perimeter of a circular section having radius 6m in case of maximum velocity?
a) 12.47m
b) 13.47m
c) 14.47m
d) 15.47m
View Answer

Answer: b
Explanation: P = 2Rθ = 2(6)(2.2460) = 13.47m.

8. Estimate the value of wetted area of a circular section in case of maximum discharge if the radius of the channel is 7m.
a) 134m²
b) 144m²
c) 154m²
d) 164m²
View Answer

Answer: a
Explanation:

9. Calculate the hydraulic radius in case of maximum velocity if the radius of the section is 8m.
a) 7.87m
b) 6.87m
c) 5.87m
d) 4.87m
View Answer

Answer: d
Explanation:

10. Calculate the discharge through a most economical circular section in case of maximum velocity if the radius of the channel is 0.5m, bed slope of 1 in 500 and the value of n = 0.016.
a) 0.43 m³/s
b) 0.53 m³/s
c) 0.63 m³/s
d) 0.73 m³/s
View Answer

Answer: a
Explanation:
