Compilers Questions and Answers – Obtaining the regular Expression from the Finite automata – 1

This set of Compilers Multiple Choice Questions & Answers (MCQs) focuses on “Obtaining the regular Expression from the finite automata – 1”.

1. L1 is accepted by the NFA, obtained by changing the accepting state of M to a non-accepting state and vice versa. Which of the following statements is true?
Find the accepting state of M from the given diagram
a) L1 = {0, 1}* – L
b) L1 = {0, 1}* – L
c) L1 ⊆ L
d) L1=L
View Answer

Answer: b
Explanation: Either it takes 0 or 1 or iterations of it or none.compilers-questions-answers-Obtaining the regular Expression from the Finite automata

2. Given an arbitrary non-deterministic finite automaton (NFA) with N states, the maximum number of states in an equivalent minimized DFA is at least?
a) N2
b) 2N
c) 2N
d) N!
View Answer

Answer: c
Explanation: If the NFA has n states, the resulting DFA may have up to 2n states, an exponentially larger number, which sometimes makes the construction impractical for large NFAs.

3. What can be said about a regular language L over {a} whose minimal finite state automaton has two states?
a) L must be {an| n is odd}
b) L must be {an| n is even}
c) L must be {an| n is even}
d) Either L must be {an | n is odd}, or L must be {an | n is even}
View Answer

Answer: d
Explanation: There are two states. When first state is final, it accepts even no. of a’s. When second state is final, it accepts odd no. of a’s.
advertisement
advertisement

4. How many minimum states are required to find whether a string has odd number of 0’s or not?
a) 1
b) 2
c) 3
d) 4
View Answer

Answer: b
Explanation: 2 minimum states are required to find whether a string has odd number of 0’s or not.

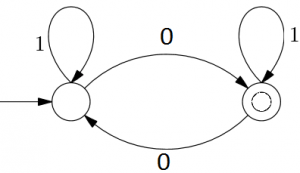

Find the odd number of 0’s from the given diagram

5. The number of states in DFA that accepts the language L(M) ∩ L(N) is _________
Find the number of states from the given diagram
a) 0
b) 1
c) 2
d) 3
View Answer

Answer: b
Explanation: In DFA M: all strings must end with ‘a’. In DFA N: all strings must end with ‘b’. So the intersection is empty. For an empty language, only one state is needed. Find the empty language from the given diagram
Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

6. Consider alphabet ∑ = {0, 1}, the null/empty string λ and the sets of strings X0, X1 and X0. How are X1 and X2 are related?

X0 = 1 X1
X1 = 0 X1 + 1 X2
X2 = 0 X1 + {λ}

Which one of the following represents the strings in X0?
a) 10 (0* + (10)*)1
b) 10 (0* + (10)*)*1
c) 10 (0* + (10)*)*1
d) 10 (0 + 10)*1 + 110 (0 + 10)*1
View Answer

Answer: c
Explanation: The smallest possible string by given grammar is “11”.
X0 = 1X1
= 11X2 [Replacing X1 with 1X2]
= 11 [Replacing X2 with λ]
The string “11” is only possible with option 10 (0* + (10)*)*1.
advertisement

7. Which of the following languages is/are regular?

L1: {wxwR ⎪ w, x ∈ {a, b}* and ⎪w⎪, ⎪x⎪ >0} wR is the reverse of string w
L2: {anbm ⎪m ≠ n and m, n≥0}
L3: {apbqcr ⎪ p, q, r ≥ 0}

a) L1 and L3 only
b) L2
c) L2 and L3 only
d) L3 only
View Answer

Answer: a
Explanation: L3 is simple to guess, it is regular.
Below is DFA for L1.
Find the length of x from the given diagram
L1 is interesting. The important thing to note
about L1 is length of x is greater than 0.
advertisement

8. The reorganizing capability of NDFA and DFA is?
a) May be different
b) Must be different
c) Must be same
d) None of the mentioned
View Answer

Answer: c
Explanation: Given any NDFA one can construct an equivalent DFA.

9. Which of the following is not regular?
a) String whose length is perfect square and consists of 0s
b) Palindromes consisting of 0’s and 1’s
c) String whose length is perfect square and consists of 0s & Palindromes consisting of 0’s and 1’s
d) None of the mentioned
View Answer

Answer: c
Explanation: Strings of odd numbers of zeros can be generated by regular expression (00)*0.

10. Which of the following pairs of regular expression are equivalent?
a) 1(01)* and (10)*1
b) X(xx)* and (xx)*x
c) 1(01)* and (10)*1 & X(xx)* and (xx)*x
d) None of the mentioned
View Answer

Answer: c
Explanation: R1 and R2 are reverse of each other. If ant one of them can be generated them the other can be generated as well.
