Power Electronics Questions and Answers – Type C Chopper

This set of Power Electronics Multiple Choice Questions & Answers (MCQs) focuses on “Type C Chopper”.

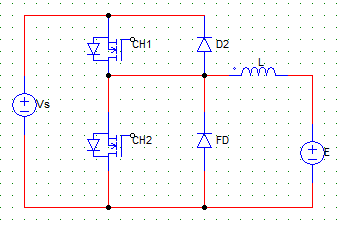

1. Name the below given circuit.
The type C chopper or Two quadrant type A chopper operates in first & second quadrant
a) Type D chopper
b) Type B chopper
c) Two-quadrant type A chopper
d) Two-quadrant type B chopper
View Answer

Answer: c
Explanation: It is a type C chopper or Two quadrant type A chopper. It operates in the first and second quadrant.

2. In the below given circuit output voltage will be 0 when
The type C chopper or Two quadrant type A chopper operates in first & second quadrant
a) SW1 is on
b) FD is not conducting
c) D2 is conducting
d) SW2 is on
View Answer

Answer: d
Explanation: Output voltage will be zero if SW 2 is on, because it will short circuit the load circuit and output voltage will be zero.

3. In the below given circuit
The type C chopper or Two quadrant type A chopper operates in first & second quadrant
a) current can never be zero
b) current can flow in both the directions of the load
c) voltage can never be zero
d) none of the mentioned
View Answer

Answer: b
Explanation: In type C chopper, current can flow in both the directions. It would be negative if SW2 in on or D2 conducts.
advertisement
advertisement

4. In the below given type C chopper circuit, _______ and _________ together operate like type A chopper.
The type C chopper or Two quadrant type A chopper operates in first & second quadrant
a) CH1, FD
b) CH2, FD
c) CH1, D2
d) CH2, D2
View Answer

Answer: a
Explanation: In the above shown type C chopper circuit, when CH1 is on and current flows VS-CH1-L-E-Vs. When CH1 is switched off, current freewheels through the FD. Hence, current and voltage both are positive giving type A chopper operation.

5. In the below given type C chopper circuit, ________ and ___________ together operate like type B chopper.
The type C chopper or Two quadrant type A chopper operates in first & second quadrant
a) CH1, FD
b) CH2, FD
c) CH1, D2
d) CH2, D2
View Answer

Answer: d
Explanation: In the above shown type C chopper circuit, when CH2 is on current flows in the negative direction E-L-CH2-E and hence voltage is zero. When D2 operates E and L deliver power to the supply Vs hence, giving a type B chopper operation.

6. Which type of chopper is used in the regenerative braking of DC motors?
a) type A
b) type B
c) type C
d) type D
View Answer

Answer: c
Explanation: In regenerative braking of DC motors, power needs to flow from load to source as well as source to load depending on whether the machine is in the motoring mode or generative braking.

7. Type C chopper consists of
a) two diodes and two switches
b) one diode and one switch
c) one diode and three switches
d) three diodes and two switches
View Answer

Answer: a
Explanation: Type C consists of, two diodes and two switches. One diode switch pair is used for operation in a particular quadrant.
advertisement

8. In a type C chopper, if only one switch is operated
a) only one quadrant operation will be obtained
b) two quadrant operation can be obtained
c) the chopper won’t work
d) none of the mentioned
View Answer

Answer: a
Explanation: Only one quadrant operation will be operated if only one switch is used. It can be either 1st and 2nd quadrant depending on which switch is operated.

9. A type C chopper is operated with only positive load current. Choose the correct statement.
The type C chopper or Two quadrant type A chopper operates in first & second quadrant
a) CH1 would remain idle
b) D2 would remain idle
c) CH2 would remain idle
d) Both D2 and CH2 would remain idle
View Answer

Answer: d
Explanation: It is a type C chopper or two quadrant type A chopper. It operates in the first and second quadrant. CH1 and FD in the first quadrant and CH2 and D2 in second quadrant.
advertisement

10. A type C chopper is operated with only negative load current. Choose the correct statement.
The type C chopper or Two quadrant type A chopper operates in first & second quadrant
a) CH1 would remain idle
b) FD would remain idle
c) CH2 would remain idle
d) Both FD and CH1 would remain idle
View Answer

Answer: d
Explanation: It is a type C chopper or two quadrant type A chopper. It operates in the first and second quadrant. CH1 and FD in the first quadrant and CH2 and D2 in second quadrant.
