Power Electronics Questions and Answers – Three Phase Converters-3

This set of Power Electronics Multiple Choice Questions & Answers (MCQs) focuses on “Three Phase Converters- 3”.

1. A three-phase full converter supplied from a 230 V source is working as a line commutated inverter. The load consists of RLE type with R = 5 Ω, E = 200 V and L = 1 mH. A continues current of 10 A is flowing through the load, find the value of the firing angle delay.
a) 119°
b) 127°
c) 156°
d) 143°
View Answer

Answer: a
Explanation: Vo = 200 – 10×5 = 150V as the circuit is operating as an inverter Vo = -150V
Now, Vo = (3Vml/π) cos α
α = cos-1(-150π/3√2×230) = 118.88°.

2. A three-phase full converter is driving a DC motor. If a continues current of Im amperes is flowing through the motor load, then find the rms value of supply current drawn by the converter to drive the motor.
a) Im/√2
b) Im2/3
c) √2Im/√3
d) √2Im/3
View Answer

Answer: c
Explanation: The RMS value of the supply current IS over π radians would be
(IS)2 = (1/π) x (Im)2 x (2π/3) = Im√2/√3.

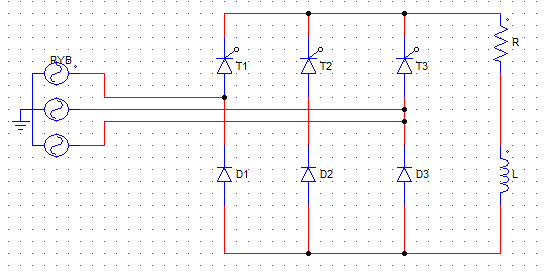

3. Name the below given circuit.
Two pulse M-2 Connection uses 3 SCRs & 3 diodes
a) Full controlled, bridge converter
b) Full controlled, semi converter
c) Bridge type semi-converter
d) Half controlled, full converter
View Answer

Answer: c
Explanation: It uses 3 SCRs and 3 diodes, hence it is a semi-converter. Option (b) and (d) make no sense, because there can be no full controlled semi-converter.
advertisement
advertisement

4. In the below given circuit, each SCR and diode conduct for
Two pulse M-2 Connection uses 3 SCRs & 3 diodes
a) 60° and 120° respectively
b) 120° and 60° respectively
c) 120°
d) 60°
View Answer

Answer: c
Explanation: At any given time, one SCR and one diode is conducting, each conduct for 120° per cycle.

5. In the below given circuit, __ and __ conduct along with T2.
Two pulse M-2 Connection uses 3 SCRs & 3 diodes
a) T1, T3
b) D1, D2
c) D1, D3
d) T1, T2
View Answer

Answer: c
Explanation: When one SCR conducts, a diode conducts along with it at a time to provide the path of current flow. . For example, if T2 starts conducting at 90° it will conduct till 90+120 = 210°. But while T2 is conducting, half of the time i.e. from 90 to 150 D1 is conducting and another half of the time D3 is conducting. T2 and D2 cannot conduct together as it will cause a short circuit. Hence, T2-D1 conduct for 60° and then T2-D3 conduct for another 60°.
Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

6. In a three-phase semi-converter, at a time one SCR and one diode conduct simultaneously. With SCR T1 conducting which diode(s) is most likely to conduct along with T1?
T1 & D1 together will cause a S.C. D2 or D3 any of these two can conduct along with T1
a) D2 only
b) D3 only
c) D1 and D2
d) D2 and D3
View Answer

Answer: d
Explanation: T1 and D1 together will cause a S.C. D2 or D3 any of these two can conduct along with T1 depending on which phase voltage is currently active RB or RY.

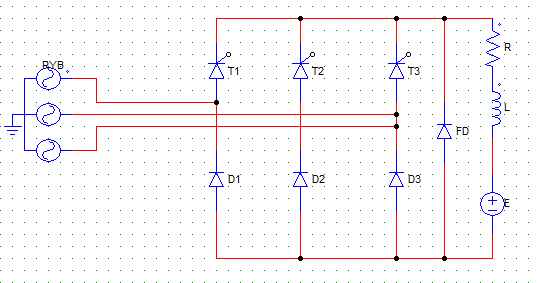

7. What is the value of voltage at the output terminal when the freewheeling diode (FD) is conducting?
T1 & D1 together will cause a S.C. D2 or D3 any of these two can conduct along with T2
a) Zero
b) Maximum
c) E
d) It could be anything depending on α
View Answer

Answer: a
Explanation: When FD is conducting it will short circuit the load terminal resulting in zero voltage. It won’t be E because the terminals are shorted. It can be E when none of the devices are conducting (This can happen only when α > 120°).
advertisement

8. A 3-phase full converter feeds power to an R load of 10 Ω. For a firing angle delay of 30° the load takes 5 kW. An inductor of large value is also connected to the load to make the current ripple free. Find the value of per phase input voltage.
a) 133 V
b) 230/√3 V
c) 191/√3 V
d) 298/√3 V
View Answer

Answer: c
Explanation: Ior = Vo/R = (3Vml/Rπ) cos α
P = 5 kW = Ior2 x R = [(3Vml/π) cos α]2 x 1/R] Therefore, Vs (line) = √50000 x (π/√2 x 3 x cos30) = 191.22 V
Vs (phase) = 191/√3 V.

9. A three-phase semi-converter circuit is given a supply of 400 V. It produces at the output terminals an average voltage of 381 V. Find the rectification efficiency of the converter circuit.
a) 99.65 %
b) 95.25 %
c) 91 %
d) 86.5 %
View Answer

Answer: b
Explanation: Rectification efficiency = Pdc/Pac
Pdc = Vo x Io . . . (both average values of output current and voltage)
Pac = Vrms x Irms . . . (both rms values of input current and voltage)
For a semi-converter Irms = Io
Therefore, Rectification efficiency = 381/400 = 95.25 %.
advertisement

10. In a 3-phase semi-converter, for firing angle less than 60° the freewheeling diode conducts for
a) 30°
b) 60°
c) 120°
d) 0
View Answer

Answer: d
Explanation: In case of a semi-converter operating with α < 60°, FD does not comes into play, as the voltage never falls to zero and gives no chance for the inductor to discharge.

Sanfoundry Global Education & Learning Series – Power Electronics.

To practice all areas of Power Electronics, here is complete set of 1000+ Multiple Choice Questions and Answers.
