Power Systems Questions and Answers – Switchgear and Protection – 4

This set of Tough Power Systems Questions and Answers focuses on “Switchgear and Protection – 4”.

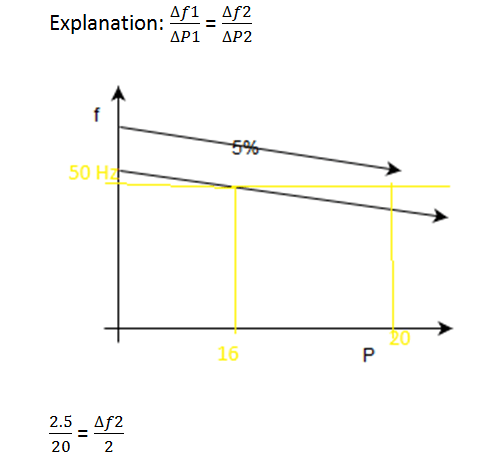

1. An isolated generator connected to a turbine with its continuous maximum power of 20 MW, 50 Hz. Generator connected with two loads of 8 MW, each operate at 50 Hz.. Generator has 5% droop characteristic. If an additional load of 6 MW is added then the change in the frequency will be ____________
a) 0.25
b) 0.75
c) 0.5
d) 1
View Answer

Answer: a
The change in the frequency will be 0.25 if an additional load of 6 MW is added

2. For the given system the Ybus matrix is show below.
Find the Ybus matrix in given diagram
For the given system the Ybus matrix is -(1/5j) = 0.2j; Y13=0
d) None of the mentioned
View Answer

Answer: a
Explanation: Y11=j2+(1/5j) = 1.8j
Y12=-(1/5j) = 0.2j; Y13=0
Hence option ‘a’ is most applicable.

3. If short TL is delivering a lagging power factor load, sending end p.f. would be ________
a) (VrcosФr+IR)/Vs
b) (VrcosФr+IRsinФr)/Vs
c) (VrsinФr+IR)/Vs
d) (VssinФr+IRcosФr)/Vs
View Answer

Answer: a
Explanation: The phasor diagram is given below
Sending end p.f. would be (VrcosФr+IR)/Vs if short TL is delivering lagging factor load
advertisement
advertisement

4. If all the sequence voltages at the fault point in a power system are equal, then fault is __________
a) LLG fault
b) LG fault
c) Three phase to ground fault
d) Line to Line fault
View Answer

Answer: a
Explanation: It is LLG fault.

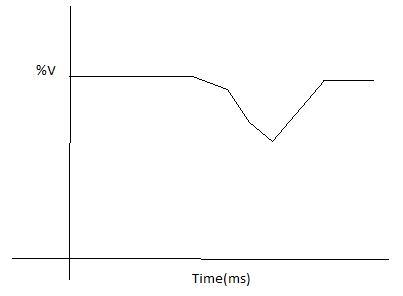

5. The below mentioned graph is a recorded data of the voltage fluctuation of the network, then it can be concluded that these faults are __________
The graph is recorded data of voltage fluctuation then concluded that faults are L-G
a) L-G
b) A three phase motor short
c) Feeder fault
d) Any of the mentioned
View Answer

Answer: a
Explanation: The sudden dip is the LG fault in the graph as the dips are not very large and the system is maintaining its stability.
Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

6. The inertia constant of two groups of machines which do not swing together are 4 and 20 MJ/MVA, the equivalent inertia constant of the system is _________
a) 2.85
b) 14
c) 6
d) 12
View Answer

Answer: a
Explanation: For the incoherent system, the equivalent inertia = H1H2/(H1+H2).

7. A fault current of 1500A passing through the primary side of a 400/5 CT. On the secondary side an inverse time over current relay is connected whose current setting is 75%, the plug setting is __________
a) 5
b) 3.75
c) 6
d) 4
View Answer

Answer: a
The plug setting is 5 on secondary side an inverse time over current relay is connected
advertisement

8. The three phase line is working at 50 Hz with conductors rearranged as shown. The Cph of TL at 132 kV is ___________
Find the Cph of TL at 132 kV for three phase line at 50 Hz with conductors
a) 8.75*10-9
b) 8.75*10-12
c) 26.2*10-12
d) 26.2*10-9
View Answer

Answer: a
The Cph of TL at 132 kV is 8.75*10-9 for three phase line at 50 Hz with conductors

9. For a 100 MVA, 11 kV three phase Alternator observes a three phase fault at terminals of it. If the fault current is 2000 A, the pu value of positive sequence reactance ______
a) 2.62
b) 0.46
c) 1.31
d) 0.92
View Answer

Answer: a
Explanation: PU fault current = 2000/5248.63 = 0.381 pu
0.381 = 1/X
X= 1/0.381 =2.62 pu.
advertisement

10. A lossless TL having SIL of 3000 MW is provided with uniform distributed series capacitance compensation of 25% and shunt compensation of 30% then the SIL of compensated TL will be _______________
a) 3949.9
b) 3289
c) 2784.9
d) 2877.6
View Answer

Answer: a
Explanation: SIL=(V2 )/Z
SIL α 1/Z
Zcomp = Zs√((1-kse)/((1+ksh)(1-Klsh)))
Kse = 0.25; Klsh = 0; Kcsh = 0.3,
Zcomp =0.7595
SILcomp = 0.7595*3000 = 3949.96 MVA.

11. A lossless TL having SIL of 3000 MW is provided with uniform distributed series capacitance compensation of 25% and shunt compensation of 30% then the compensated impedance of TL will be(in pu) ____________
a) 0.7595
b) 2.88
c) 0.647
d) 3.27
View Answer

Answer: a
Explanation: SIL=(V2)/Z
SIL α 1/Z
Zcomp = Zs√((1-kse)/((1+ksh)(1-Klsh)))
Kse = 0.25; Klsh = 0; Kcsh = 0.3,
Zcomp =0.7595.

Sanfoundry Global Education & Learning Series – Power Systems.

To practice tough questions and answers on all areas of Power Systems, here is complete set of 1000+ Multiple Choice Questions and Answers.

If you find a mistake in question / option / answer, kindly take a screenshot and email to [email protected]
