Prestressed Concrete Structures Questions and Answers – Resultant Stresses

This set of Prestressed Concrete Structures Multiple Choice Questions & Answers (MCQs) focuses on “Resultant Stresses”.

1. The resultant stresses in concrete at any section are obtained by the effect of ___________
a) Prestress and flexural stresses
b) Prestress and bending stresses
c) Prestress and shear stresses
d) Prestress and torsion stresses
View Answer

Answer: a
Explanation: Resultant stresses in concrete at any section are obtained by superimposing the effect of prestress and flexural stresses developed due to the loads, other common types of corrosion frequently encountered in prestressed concrete construction are pitting corrosion and chloride corrosion, a critical review of the different types of corrosion of high tensile steel in structural concrete is reported.

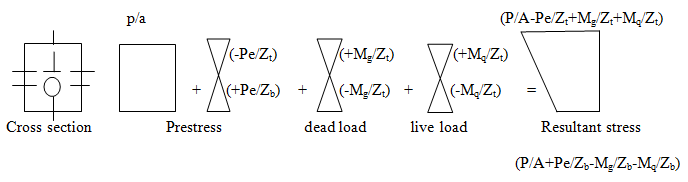

2. The resultant stress distribution due to eccentric prestressing, dead and live loads at any given section are obtained as ___________
a) Fsup = (p/a-pe/zt)+(mg/zt)+(mq/zt)
b) Fsup = (p/a-pe/zt)+(mg/zt)+(mq/zt)
c) Fsup = (p/a-pe/zt)+(mg/zt)+(mq/zt)
d) Fsup = (p/a-pe/zt)+(mg/zt)+(mq/zt)
View Answer

Answer: a
Explanation: If Mq and Mg are live loads and dead load moments at the central span section;
Mq=ql2/8
Mg=gl2/8
Mq & Mg are live loads & dead load moments at the central span section

3. A concrete beam of rectangular section, 250mm wide and 600mm deep. Calculate the bending moment that can be applied without applying tension at the soffit of the beam with given m/z value as 5.74?
a) 26.4
b) 54.8
c) 34.5
d) 86.1
View Answer

Answer: d
Explanation: m/z = 5.74, b = 250mm, d = 600mm
Z = (250×6002/6) = 15×106mm3,
M = (5.74×15×106) = 86.1×106nmm = 86.1knm.
advertisement
advertisement

4. A prestressed concrete beam of section 200mm wide by 300mm deep of imposed load 4kn/m at a span of 6m, density of concrete is 24kn/m3. Find the concentric prestressing force necessary for zero fiber stress at the soffit?
a) 490
b) 560
c) 230
d) 310
View Answer

Answer: a
Explanation: b = 200mm, d = 300mm, A = (200×300) = 6×104mm2, g = (0.2×0.3×24),
Mg = (0.125×1.44×62) = 6.48knm, Mq = (0.125×4×62) = 18knm, Zb=Zt = (200×3002/6) = 3×106mm3
P/A = 8.16, P = (8.16×6×104) = 489.6kn.

5. The locus of the points of application of resultant force in any structure is termed as ___________
a) Pressure line
b) Hollow line
c) Beam line
d) Tendon line
View Answer

Answer: a
Explanation: The combined effect of prestressing force and the externally applied load will result in a distribution of concrete stresses that can be resolved into a single force and the locus of the points of application of this resultant force in any structure is termed as “pressure or thrust line”.
