Power Systems Questions and Answers – Distribution Systems – 3

This set of Power Systems Assessment Questions and Answers focuses on “Distribution Systems – 3”.

1. For an ac three-phase four wire system, having a voltage of 415V, with load of 120 kW and resistance of 0.05Ω at power factor of 0.75. The incurred copper losses of the system is ____
a) 4.955 kW
b) 47 kW
c) 49 kW
d) 7.9 kW
View Answer

Answer: a
Explanation: Copper losses for a three-phase four wire system will be,
The incurred copper losses is 4.955 kW with load of 120 kW & resistance of 0.05Ω

2. The ratio of area of cross section of the wire of a 3-phase 3-wire and that of dc 2-wire mid point earthed system will be _________
Find ratio of area of wire of 3-phase 3-wire & dc 2-wire mid point earthed system
View Answer

Answer: a
Explanation: The ratio of area of cross section of the conductor used in 3-ph 3-wire to dc 2-wire will be The ratio of area of cross section of the conductor used in 3-ph 3-wire to dc 2-wire as the power factor will come into picture.

3. Distributors fed at both ends has an advantage of ________________
a) continuous supply
b) fault isolation
c) being economical
d) all of the mentioned
View Answer

Answer: d
Explanation: All the points mentioned are the benefits of the dual fed distribution system.
advertisement
advertisement

4. Why is a ring main distribution system preferred to a radial system?
1. Voltage drop in feed is more
2. Supply is reliable
3. Power factor is higher
a) 2
b) 1,2
c) 1,2,3
d) 2,3
View Answer

Answer: a
Explanation: Ring main system has less voltage drop and power factor at the consumer level is not high.

5. For a given power delivered, if the working voltage of a distribution line is decreased to ‘x’ times, the cross sectional area ‘a’ of distributor line would reduce to ___________
Find cross sectional area ‘a’ of distributor line of line is decreased to ‘x’ times
View Answer

Answer: d
Explanation: The cross-sectional area has to be increased not reduced after reducing the voltage levels.
Note: Join free Sanfoundry classes at Telegram or Youtube

6. For a given power delivered, if the working voltage of a distribution line is increased to ‘x’ times, the cross sectional area ‘a’ of distributor line would reduce to _____________
Find cross sectional area ‘a’ of distributor line of line is increased to ‘x’ times
View Answer

Answer: a

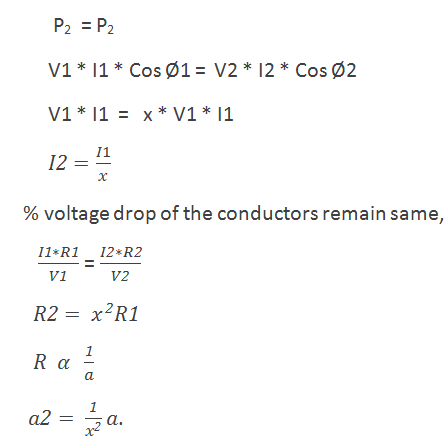

Explanation: Assuming the power at both the times remain constant.
The power at both the times remain constant

7. The distribution feeding system of ring main system has ______________
a) one feeder
b) 2 feeders
c) 4 feeders
d) cannot be said
View Answer

Answer: a
Explanation: Ring main uses only one feeder.
advertisement

8. A substation records a dip in the voltage received by 15%. To overcome this issue, the booster employed at the substation is ___________
a) a series wound generator coupled to dc shunt motor
b) a series wound motor
c) a shunt motor operating at lagging power factor
d) a shunt motor coupled to differential motor
View Answer

Answer: a
Explanation: A dc series motor coupled with the shunt motor has the ability to boost the voltage at its input supply.

9. A substation records a dip in the voltage received by 15%. To overcome this issue, the booster employed at the substation which should have a _____________
a) low voltage and high current generator
b) high voltage and low current generator
c) medium voltage but high current generator
d) any of the mentioned
View Answer

Answer: a
Explanation: The booster need to have the low voltage and high current profile so that it can easily boost the voltage levels at its output.
advertisement

10. Single core cables for an ac systems are not provided with armouring.
a) True
b) False
View Answer

Answer: a
Explanation: Because of the armouring of the cables leads to eddy current in the power cables adding more to the losses.
