Pavement Design Questions and Answers – Highway Materials – Subgrade Soil Tests – 1

«
»

This set of Pavement Design Multiple Choice Questions & Answers (MCQs) focuses on “Highway Materials – Subgrade Soil Tests – 1”.

1. The tests to evaluate the strength of subgrade soil can be broadly classified as ______
a) Shear and penetration tests
b) Shear and bearing tests
c) Bearing and penetration tests
d) Shear, bearing and penetration tests
View Answer

Answer: d
Explanation: There are three broad classifications of test types to evaluate subgrade soil strength. They are shear, bearing and penetration tests. Each contains several other tests under them to evaluate the strength.
advertisement

2. The ______ test can be conducted in-situ as well as in the laboratory.
a) CBR
b) Unconfined compression
c) Triaxial
d) Direct shear
View Answer

Answer: a
Explanation: CBR is a type of penetration test and there have been procedures developed to allow conducting the test both in-situ and in the laboratory. Unconfined compression test, triaxial test and direct shear test are all types of shear tests. These are usually conducted in the laboratory only.

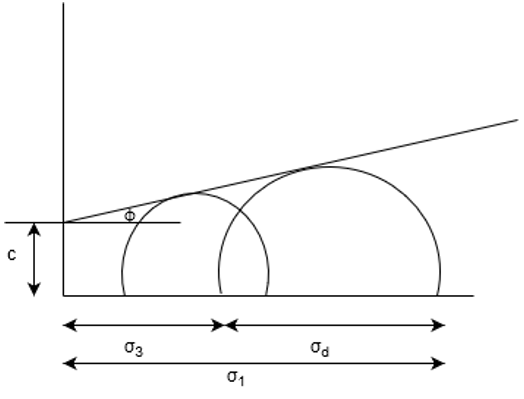

3. The figure below represents the Mohr’s envelope. What does the symbol “σd” represent in the figure?
The symbol “σd” represent in the figure is Deviator stress in the Mohr’s envelope
a) Differential stress
b) Direct stress
c) Derived stress
d) Deviator stress
View Answer

Answer: d
Explanation: The stresses obtained in the triaxial test are plotted in the Mohr’s envelope. The lateral pressure is represented as σ3 and the vertical pressure is represented as σ1. “σd” represents the deviator stress and is obtained as the difference between σ1 and σ3.
