Linear Integrated Circuit Questions and Answers – Basic Principles of Sine Wave Oscillator – 2

This set of Linear Integrated Circuit Multiple Choice Questions & Answers (MCQs) focuses on “Basic Principles of Sine Wave Oscillator – 2”.

1. What will be the phase shift of feedback circuit in RC phase shift oscillator?
a) 360o phase shift
b) 180o phase shift
c) 90o phase shift
d) 60o phase shift
View Answer

Answer: b
Explanation: The RC feedback network provide 180o phase shift and amplifier used in RC phase shift oscillator provide 180o phase shift (op-amp is used in the inverting mode) to obtain a total phase shift of 360o.

2. How many RC stages are used in the RC phase shift oscillator?
a) Six
b) Two
c) Four
d) Three
View Answer

Answer: d
Explanation: The RC stage forms the feedback network of oscillator. It consist of three identical RC stages, each of 60o phase shift so as to provide a total phase shift of 180o.

3. Calculate the frequency of oscillation for RC phase shift oscillator having the value of R and C as 35Ω and 3.7µF respectively.
a) 1230 Hz
b) 204 Hz
c) 502Hz
d) 673 Hz
View Answer

Answer: c
Explanation: The frequency of oscillation of RC phase shift oscillator is,
fo=1/(2πRC√6) = 1/(2×3.14×√6×3.7µF×35Ω)
=> fo= 1/ 1.9921×10-3 = 502Hz.
advertisement
advertisement

4. What must be done to ensure that oscillation will not die out in RC phase shift oscillator?
a) Gain of amplifier is kept greater than 29
b) Gain of amplifier is kept greater than 1
c) Gain of amplifier is kept less than 29
d) Gain of amplifier is kept less than 1
View Answer

Answer: a
Explanation: For a sustained oscillation in RC phase shift oscillator the gain of the inverting op-amp should be at least 29. Therefore, gain is kept greater than 29 to ensure the variation in circuit parameter will not make |Aß|<1, otherwise oscillation will die out.

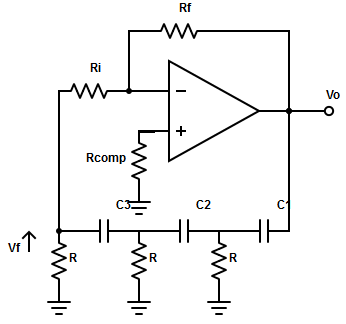

5. Calculate the feedback voltage from phase shit network.
Calculate the feedback voltage from phase shit network
a) Vf = ( VoR3S3C3) / (1+ 6SRC+5S2C2R2+S3R3C3)
b) Vf = ( VoR3S3C3) / (1+ 5SRC+6S2C2R2+S3R3C3)
c) Vf = ( VoR3S3C3) / (1+ 5SRC+5S2C2R2+S3R3C3)
d) Vf = ( VoR2S3C3) / (1+ 6SRC+5S2C2R2+S3R3C3)
View Answer

Answer: b
Explanation: Applying KVL equation to the circuit, we get
=> I1(R+(1/SC))-I2=Vo -> Equ1
=> -I1R+ I2(2R+(1/SC))- I3R=0 -> Equ2
=> 0- I2R+ I3(2R+(1/SC)=6 -> Equ3
WKT, Vf = I3× 2R,
Solving Equ 1, 2, and 3 for I3
=> I3= ( VoR2S3C3)/ (1+ 5SRC+6S2C2R2+S3R3C3)
=> Vf = I3× 2R
=( VoR3S3C3) / (1+ 5SRC+6S2C2R2+S3R3C3).
Note: Join free Sanfoundry classes at Telegram or Youtube

6. Which type of op-amp is avoided for high frequencies?
a) LM318
b) Op-amp 741
c) LF 351
d) None of the mentioned
View Answer

Answer: b
Explanation: Op-amp741 is generally used for low frequencies < 1 kHz.

7. Find out the constant values of α and ß in phase shift oscillator.
a) α = √6, ß = -1/29
b) α = 6, ß = -1/29
c) α = √6, ß = 1/29
d) α = 6, ß = -1/29
View Answer

Answer: a
Explanation: From phase shift network, we obtain
ß= 1/(1-5 α2)+j α(6- α2) -> Equ1
For Aß=1, ß should be real and the imaginary terms must be zero
α(6- α2) =0
=> α=√6
Now substituting α2=6 in Equ 1, we get
ß=-1/29 (Negative sign indicates that the feedback network produces a phase shift of 180o).
advertisement

8. A phase shift oscillator is designed to oscillate at 155Hz. Determine the value of Rf. (Take C=0.30µF)
a) 399Ω
b) 3.98MΩ
c) 13.9kΩ
d) 403kΩ
View Answer

Answer: d
Explanation: R = 1/(2πC√6×fo)
=> R= 1/7.153×10-4= 1398=13.9kΩ.

9. The value of feedback resistor in phase shift oscillator is 180kΩ. Find its input resistance?
a) 52kΩ
b) 151kΩ
c) 209kΩ
d) 6.2kΩ
View Answer

Answer: c
Explanation: To obtain sustained oscillation in phase shift oscillator.
=> |A|=29 or |Rf / R1|=29
=> R1|= Rf / 29 = 180kΩ/29= 6.21kΩ,
advertisement

10. Determine the frequency of oscillation (fo) in phase shift oscillator?
a) fo = √6/ωRC
b) fo = 0.56/ωRC
c) fo = 0.065/ωRC
d) fo = 6/ωRC
View Answer

Answer: c
Explanation: The frequency of oscillation of phase shift oscillator is given as
fo = 1/(2π×RC×√6) = 1/15.38×RC
=> fo = 0.065/RC.

11. The condition for zero phase shift in wein bridge oscillator is achieved by
a) Connecting feedback to non-inverting input terminal of op-amp
b) Balancing the bridge
c) Applying parallel combination of RC to the feedback network
d) All of the mentioned
View Answer

Answer: b
Explanation: In wein bridge oscillator, the feedback signal in the circuit is connected to the non-inverting input of op-amp. So, feedback network does not provide any feedback and the condition of zero phase shift around the circuit is achieved by balancing the bridge.

Sanfoundry Global Education & Learning Series – Linear Integrated Circuits.

To practice all areas of Linear Integrated Circuits, here is complete set of 1000+ Multiple Choice Questions and Answers.

If you find a mistake in question / option / answer, kindly take a screenshot and email to [email protected]
