Heat Transfer Operations Questions and Answers – Shell and Tube Heat Exchangers – Concurrent and Countercurrent Operation

This set of Heat Transfer Operations Multiple Choice Questions & Answers (MCQs) focuses on “Shell and Tube Heat Exchangers – Concurrent and Countercurrent Operation”.

1. In a shell and tube heat exchanger, the flow pattern is usually ________
a) Concurrent
b) Counter current
c) Concurrent at a part and Counter current at the other
d) Mixed flow
View Answer

Answer: c
Explanation: In a shell and tube HE when the fluids are flowing in their respective paths, there are regions where both Concurrent and Counter current flow is observed.

2. In a 2-4 Shell and Tube heat exchanger, how many concurrent and counter current flow regimes are observed?
a) 2 concurrent and 2 counter current
b) 1 concurrent and 1 counter current
c) 4 concurrent and 0 counter current
d) 0 concurrent and 4 counter current
View Answer

Answer: a
Explanation: In a 2-4 Shell and Tube heat exchanger, we observe alternate concurrent and counter current flow regimes, as there are total 4 interaction areas, we get alternating 2 concurrent and 2 counter current flow patterns.

3. In the following Figure determine the number of Concurrent flow and Counter-current flow regime.
Find the number of Concurrent flow & Counter-current flow regime
a) 2 concurrent and 2 counter current
b) 1 concurrent and 1 counter current
c) 2 concurrent and 0 counter current
d) 0 concurrent and 2 counter current
View Answer

Answer: b
Explanation: In the temperature pattern shown above, we observe alternate concurrent and counter current flow regimes, as there are total 2 interaction areas, we get alternating 1 concurrent(Tc2-TH) and 1 counter current(Tc1-TH) flow patterns.
advertisement
advertisement

4. In a 1-2 Shell and Tube heat exchanger, how many concurrent and counter current flow regimes are observed?
a) 2 concurrent and 2 counter current
b) 1 concurrent and 1 counter current
c) 4 concurrent and 0 counter current
d) 0 concurrent and 4 counter current
View Answer

Answer: b
Explanation: In a 1-2 Shell and Tube heat exchanger, we observe alternate concurrent and counter current flow regimes, as there are total 2 interaction areas, we get alternating 1 concurrent and 1 counter current flow patterns.

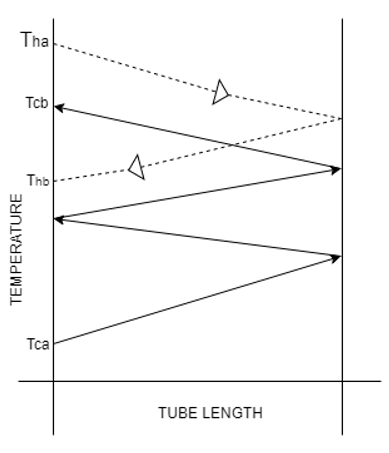

5. In the following Figure determine the number of Concurrent flow and Counter-current flow regime.
Number of Concurrent flow & current flow regime is 2 concurrent & 2 counter current
a) 2 concurrent and 2 counter current
b) 1 concurrent and 1 counter current
c) 2 concurrent and 0 counter current
d) 0 concurrent and 2 counter current
View Answer

Answer: a
Explanation: In the temperature pattern shown above, we observe alternate concurrent and counter current flow regimes. Looking at the region THA to Ti, there is a single Concurrent and Counter-current interaction, as there are total 2 interaction areas, we get alternating 2 concurrent and 2 counter current flow patterns.
Note: Join free Sanfoundry classes at Telegram or Youtube

6. In a shell and tube Heat exchanger, sometimes flow regimes cannot be expressed as concurrent or counter-current.
a) True
b) False
View Answer

Answer: b
Explanation: Flow regimes can always be represented by counter-current and concurrent by any point of consideration in the setup as possible. This is because the fluid in contact with the tube always has a direction of flow.

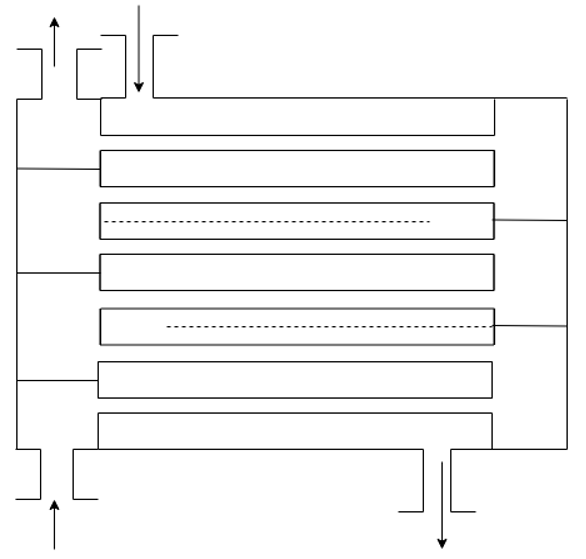

7. In the following shell and tube setup as shown, recognise the number of Concurrent and Counter-current interactions.
Find the number of Concurrent & Counter-current interactions
a) 2 concurrent and 4 counter current
b) 3 concurrent and 3 counter current
c) 6 concurrent and 0 counter current
d) 0 concurrent and 6 counter current
View Answer

Answer: b

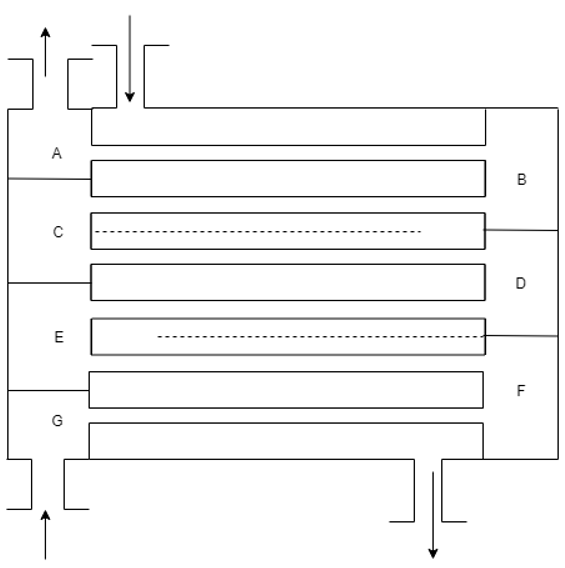

Explanation: In the setup shown above, we observe alternate concurrent and counter current flow regimes. Looking at the region THA to Ti, there is a single Concurrent and Counter-current interaction, as there are total 3 interaction areas, we get alternating 3 concurrent and 3 counter current flow patterns.
The alternate concurrent & counter current flow regimes
AB – Counter-current
BC – Con-current
CD – Counter-current
DE – Con-current
EF – Counter-current
FG – Con-current.
advertisement

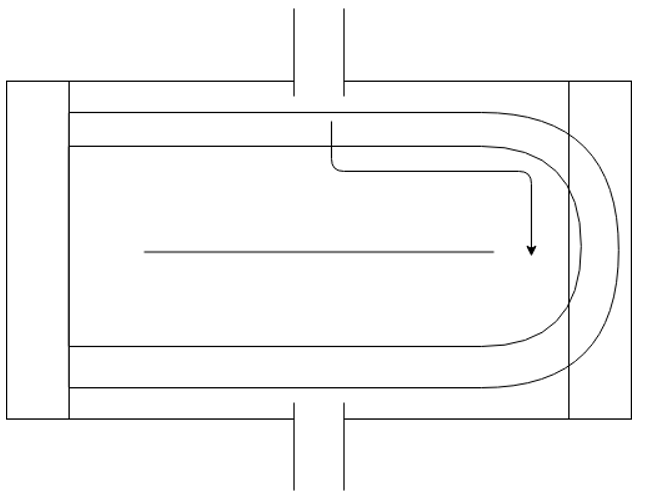

8. What is the total number of counter-current flow regime in the given setup of split flow?
Find the total number of counter-current flow regime in the given setup of split flow
a) 1
b) 2
c) 3
d) 4
View Answer

Answer: b

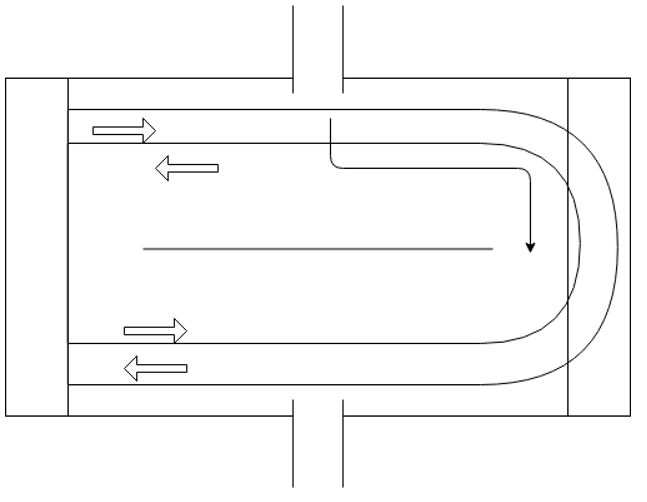

Explanation: We can observe by the below diagram that the number of counter flow regime is 2.
The below diagram shows that the number of counter flow regime is 2

9. What is the total number of counter-current flow regime in the given setup of double split flow?
Find the total number of counter-current flow regime in given setup of double split flow
a) 1
b) 2
c) 3
d) 4
View Answer

Answer: d

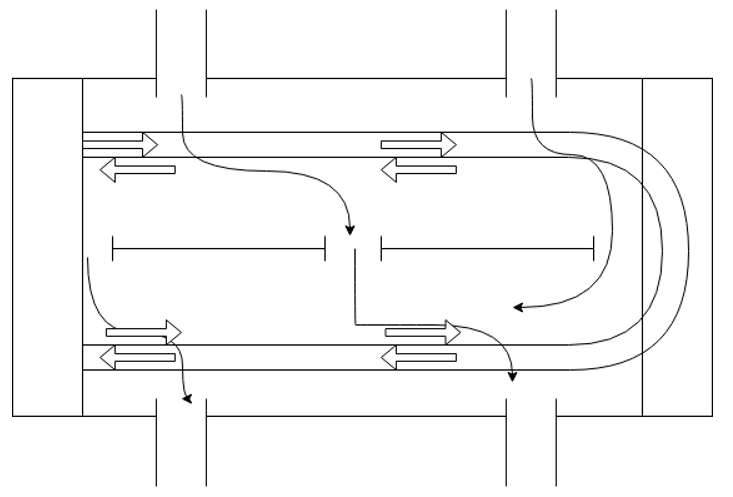

Explanation: We can observe by the below diagram of double split flow, that the number of counter flow regime is 4.
The below diagram of double split flow, that the number of counter flow regime is 4
advertisement

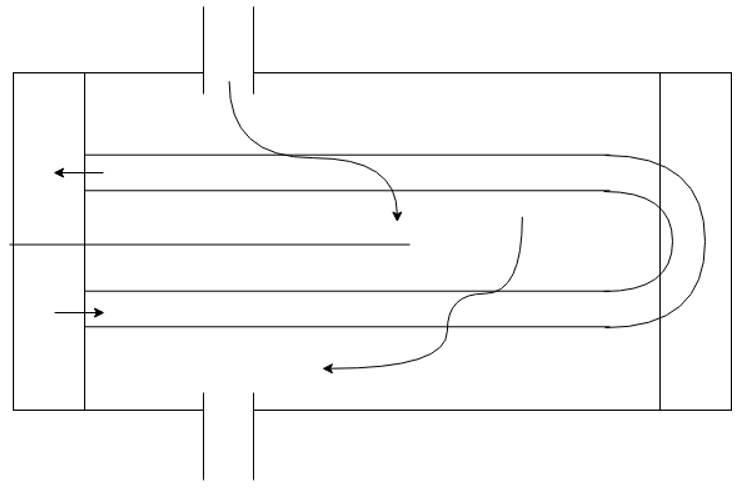

10. What is the total number of concurrent flow regime in the given setup of Shell and Tube HE?
Find the total number of concurrent flow regime in the given setup of Shell & Tube HE
a) 1
b) 2
c) 3
d) 0
View Answer

Answer: d
Explanation: We can observe by the given flow, that the number of concurrent regime is 0 and is totally counter current as is visible from the fact that the flow at every point is opposite to that in tube.
