Finite Element Method Questions and Answers – Plane Elasticity – Evaluation of Integrals

This set of Finite Element Method Multiple Choice Questions & Answers (MCQs) focuses on “Plane Elasticity – Evaluation of Integrals”.

1. In the Finite Element Method, which expression is correct for a linear triangular element if S is the shape function, Ae is its area, and K is a constant?
a) \(\frac{\partial S}{\partial x}=\frac{K}{A_e}\)
b) \(\frac{\partial S}{\partial y}=\frac{K}{A_e^2}\)
c) \(\frac{\partial S}{\partial x}\)=KAe
d) \(\frac{\partial S}{\partial y}\)=KAe2
View Answer

Answer: a
Explanation: For a linear triangular (i.e., constant-strain triangle) element, the shape function \(\psi_i^e\) and its derivatives are given by \(\psi_i^e=\frac{1}{2A_e}(\alpha_i^e+\beta_i^e x+\gamma_i^e y)\), \(\frac{\partial \psi_i^e}{\partial x}=\frac{\beta_i^e}{2A_e}\) and \(\frac{\partial \psi_i^e}{\partial y}=\frac{\gamma_i^e}{2A_e}\)where Ae is the area of the element, α, β and γ are constants. Note that the derivatives of the shape function are constants.

2. In Finite Element Analysis, what is the correct load vector for a linear triangular element with area Ae, thickness he and uniform body force vector f?
a) \(\frac{A_e h_e}{4}\)f
b) \(\frac{A_e h_e}{3}\)f
c) \(\frac{h_e}{3A_e}\)f
d) \(\frac{h_e}{4A_e}\)f
View Answer

Answer: b
Explanation: For a linear triangular (i.e., constant-strain triangle) element, for the case in which the body force is uniform and thus the body force components fx and fy are element-wise constant (say, equal to, \(f_{x0}^e\) and \(f_{y0}^e\) respectively), the load vector F has the form F=∫Ωchee)T\(f_0^e\)dx
=\(\frac{A_e h_e}{4}\begin{bmatrix}f_{x0}^e\\f_{y0}^e\\f_{x0}^e\\f_{y0}^e\\f_{x0}^e\\f_{y0}^e\end{bmatrix}\). The internal load vector Q is computed only when the element falls on the boundary of the domain on which tractions are specified.

3. In Finite Element Analysis, what is the correct load vector for the linear quadrilateral element with area Ae, thickness he and uniform body force vector f?
a) \(\frac{A_e h_e}{4} \)f
b) \(\frac{A_e h_e}{3}\)f
c) \(\frac{h_e}{3A_e}\)f
d) \(\frac{h_e}{4A_e}\)f
View Answer

Answer: a
Explanation: For a linear quadrilateral element,for the case in which the body force is uniform and thus the body force components are element-wise constant (say, equal to, \(f_{x0}^e\) and \(f_{y0}^e\) respectively), the load vector F has the form F=\(\int_{\Omega_c}h_e(\psi^e)^T f_0^edx\) =\(\frac{A_e h_e}{4}\begin{bmatrix}f_{x0}^e\\f_{y0}^e\\f_{x0}^e\\f_{y0}^e\\f_{x0}^e\\f_{y0}^e\\f_{x0}^e\\f_{y0}^e\end{bmatrix}\). The internal load vector Q is computed only when the element falls on the boundary of the domain on which tractions are specified.
advertisement
advertisement

4. In the Finite Element Method, the vector of internal forces is computed only when the element falls on the boundary of the domain on which tractions are absent.
a) True
b) False
View Answer

Answer: b
Explanation: In Finite Element Analysis, internal load vector Q is computed only when the element falls on the boundary of the domain on which tractions are specified (i.e., known). Computation of Q involves the evaluation of line integrals (for any type of element). In practice, it is convenient to express the surface traction t in the element coordinates. In that case, Q can be evaluated in the element coordinates and then transformed to the global coordinates for assembly.

5. Which option is not correct concerning the internal load vector in the finite element model of plane elasticity problems?
a) It is computed at all the nodes interior of the element
b) It is computed only when the element falls on the boundary of the domain on which tractions are known
c) Its computation doesn’t involve evaluation of line integrals for any type of element
d) It is evaluated in global coordinates but not in element coordinates
View Answer

Answer: b
Explanation: In Finite Element Analysis, internal load vector Q is computed only when the element falls on the boundary of the domain on which tractions are specified (i.e., known). Computation of Q involves the evaluation of line integrals (for any type of element). In practice, it is convenient to express the surface traction t in the element coordinates. In that case, Q can be evaluated in the element coordinates and then transformed to the global coordinates using a transformation matrix.
Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

6. In transformations, what is the transformation matrix R in the relation F=RQ if the load vector in global coordinates is F and the load vector in element coordinates is Q?
a) \(\begin{bmatrix}
cos \alpha & sin \alpha & 0 & 0 & \\-sin \alpha & cos \alpha & 0 & 0 & \\0 & 0 & cos \alpha & sin \alpha & \\0 & 0 & -sin \alpha & cos \alpha & \\& & & & \ddots\end{bmatrix}\)
b) \(\begin{bmatrix}cos \alpha & -sin \alpha & 0 & 0 & \\
sin \alpha & cos \alpha & 0 & 0 & \\0 & 0 & cos \alpha & -sin \alpha & \\0 & 0 & sin \alpha & cos \alpha & \\& & & & \ddots\end{bmatrix}\)
c) \(\begin{bmatrix}cos \alpha & sin \alpha & 0 & 0 & \\-sin \alpha & cos \alpha & 0 & 0 & \\0 & 0 & cos \alpha & -sin \alpha & \\0 & 0 & sin \alpha & cos \alpha & \\& & & & \ddots\end{bmatrix}\)
d) \(\begin{bmatrix}cos \alpha & -sin \alpha & 0 & 0 & \\
sin \alpha & cos \alpha & 0 & 0 & \\0 & 0 & cos \alpha & sin \alpha & \\0 & 0 & -sin \alpha & cos \alpha & \\& & & & \ddots\end{bmatrix}\)
View Answer

Answer: a
Explanation: In practice, it is convenient to express the surface traction T in the element coordinates. In that case, the element load vector can be evaluated in the element coordinates and then transformed to the global coordinates for assembly. If Q denotes the element load vector referred to the element coordinates, then the corresponding load vector referred to the global coordinates is given by
F=RTQ, where R is the transformation matrix R=\(\begin{bmatrix}cos \alpha & sin \alpha & 0 & 0 & \\-sin \alpha & cos \alpha & 0 & 0 & \\0 & 0 & cos \alpha & -sin \alpha & \\0 & 0 & sin \alpha & cos \alpha & \\& & & & \ddots\end{bmatrix}\) and α is the angle between the global x-axis and the traction vector T.

7. What is the global load vector in Finite Element Analysis of the following structure if the local load vector is \(\begin{bmatrix}0\\0\\2\\0\\1\\0\end{bmatrix}\) and θ=0?
Find the global load vector in Finite Element Analysis of the structure
a) \(\begin{bmatrix}0\\0\\0\\2\\0\\1\end{bmatrix}\)
b) \(\begin{bmatrix}0\\0\\2\\0\\0\\1\end{bmatrix}\)
c) \(\begin{bmatrix}0\\0\\2\\0\\1\\0\end{bmatrix}\)
d) \(\begin{bmatrix}0\\0\\0\\2\\1\\0\end{bmatrix}\)
View Answer

Answer: a
Explanation: If Q denotes the element load vector referred to the element coordinates then the corresponding load vector referred to the global coordinates is given by F=RTQ where R is the transformation matrix R=\(\begin{bmatrix}cos \alpha & sin \alpha & 0 & 0 & \\
-sin \alpha & cos \alpha & 0 & 0 & \\0 & 0 & cos \alpha & sin \alpha & \\0 & 0 & -sin \alpha & cos \alpha & \\& & & & \ddots\end{bmatrix}\) and α is the angle between the global x-axis and the traction vector T.
Here α=90-θ, given θ=0
α=90-0
=90.
Cos90=0 and sin90=1.
R=\(\begin{bmatrix}0&1&0&0&0&0\\-1&0&0&0&0&0\\0&0&0&1&0&0\\0&0&-1&0&0&0\\0&0&0&0&0&1\\-1&0&0&0-1&0\end{bmatrix}\)
F=\(\begin{bmatrix}0&1&0&0&0&0\\ -1&0&0&0&0&0\\0&0&0&1&0&0\\0&0&-1&0&0&0\\0&0&0&0&0&1\\-1&0&0&0-1&0\end{bmatrix}^T\)x\(\begin{bmatrix}0\\0\\2\\0\\1\\0\end{bmatrix}\)
=\(\begin{bmatrix}0\\0\\0\\2\\0\\1\end{bmatrix}\).
advertisement

8. What is the expression for the traction term tn in the element load vector Qe=∮cheψTtds of the following figure where L23 is the length of the line 2-3?
Find the expression for the traction term in the element load vector of the figure
a) tn=-T(-1+\(\frac{s}{L_{23}})\)
b) tn=T(-1+\(\frac{s}{L_{23}})\)
c) tn=-T(1+\(\frac{s}{L_{23}})\)
d) tn=T(1+\(\frac{s}{L_{23}})\)
View Answer

Answer: b
Explanation: For the element shown in the given figure, the side 2-3 is subjected to linearly varying normal force tn. The traction term on the side 2-3 of the element is tn=-T(1- \(\frac{s}{L_{23}})\), where the minus sign for T accounts for the direction of the applied traction. Traction is acting towards the body in the present case. The local coordinate system s used in the above expression is chosen along the side connecting node 2 to node 3, with its origin at node 2. We are not restricted to this choice.

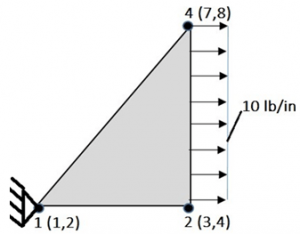

9. In Finite Element Analysis, what are the values of nodal forces in the following element if the line 2-4 is 160 in long?
