Engineering Drawing Questions and Answers – Projection of Solids in Simple Position – 2

This set of Engineering Drawing Multiple Choice Questions & Answers (MCQs) focuses on “Projection of Solids in Simple Position – 2”.

1. When the axis of a solid is parallel to a plane, the projection of the solid shows the true shape and size of its base.
a) False
b) True
View Answer

Answer: a
Explanation: A solid with the axis perpendicular to the projection plane will have the true shape and size of its base.

2. When the axis of a solid perpendicular to H.P__________ should be drawn first.
a) Top view
b) Front view
c) Side view
d) Rare view
View Answer

Answer: a
Explanation: When the axis is perpendicular to the H.P, then the top view projection is the true shape and size of the base. Hence drawing top view will be the easiest and so it should be drawn first.

3. When the axis of a solid perpendicular to V.P, __________ should be drawn first.
a) Top view
b) Front view
c) Side view
d) Rare view
View Answer

Answer: b
Explanation: When the axis is perpendicular to the V.P, then the front view projection is the true shape and size of the base. Hence drawing front view will be the easiest and so it should be drawn first.
advertisement
advertisement

4. When the axis of a solid parallel to H.P and V.P, __________ should be drawn first.
a) Top view
b) Front view
c) Side view
d) Rare view
View Answer

Answer: c
Explanation: When the axis is parallel to H.P and V.P, then neither the front view nor the top view projection has the true shape and size of the base. Hence drawing the projection on an auxiliary plane which is perpendicular to both H.P and V.P, that is the side view will be the easiest and so it should be drawn first.

5. While drawing a projection, if the first top view is drawn and then the front view is projected from the top view. Then the axis of the solid is _____________
a) Parallel to V.P and H.P
b) Perpendicular to V.P
c) Perpendicular to H.P
d) Inclined to H.P
View Answer

Answer: c
Explanation: When the axis is perpendicular to the H.P, then the top view projection is the true shape and size of the base. Hence drawing top view will be the easiest and so it should be drawn first. From the top view front view is projected.
Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

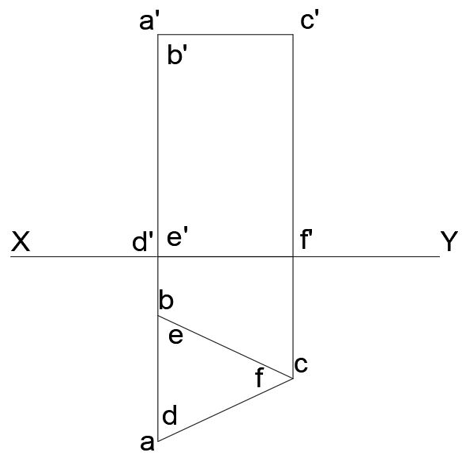

6. Which of the following statements is true with respect to the following projection?
In projection top view is equilateral triangle which is base with true shape & size
a) Cone with the base perpendicular to V.P and H.P
b) Pyramid with the base perpendicular to V.P
c) Triangular prism with the base parallel to H.P
d) Cone with base inclined to H.P
View Answer

Answer: c
Explanation: In the given projection top view is equilateral triangle which is the base with true shape and size, hence the base is parallel to H.P, the given projection is of a triangular prism.

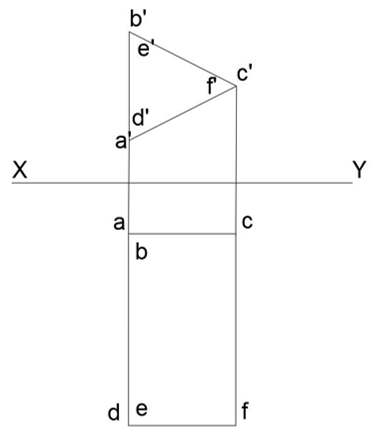

7. Which of the following statements is true with respect to the following projection?
The base is parallel to V.P, the given projection is of a triangular prism
a) Cone with the base perpendicular to V.P and H.P
b) Triangular prism with the base parallel to V.P
c) Pyramid with the base parallel to H.P
d) Cone with base inclined to H.P
View Answer

Answer: b
Explanation: In the given projection front view is equilateral triangle which is the base with true shape and size, hence the base is parallel to V.P, the given projection is of a triangular prism.
advertisement

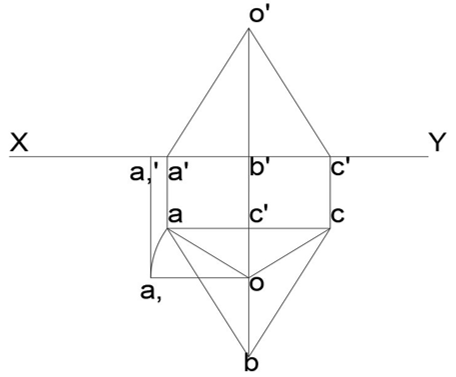

8. Find the type of solid from the given projection?
Find the type of solid from the given projection
a) Cone
b) Triangular prism
c) Pyramid
d) Tetrahedron
View Answer

Answer: d
Explanation: In the given projection equilateral triangle is the shape of the top and front view, it is possible in the case of a tetrahedron.

9. Find the type of solid from the given projection?
The top view is a rectangle & the front view is an equilateral triangle
a) Cone
b) Triangular prism
c) Pyramid
d) Tetrahedron
View Answer

Answer: b
Explanation: In the given projection, the top view is a rectangle and the front view is an equilateral triangle, which is possible in the triangular prism.
advertisement

10. Find the type of solid from the given projection?
The type of solid from the given projection is cube with its vertical faces 45 inclined
a) Cube
b) Cuboid
c) Pyramid
d) Tetrahedron
View Answer

Answer: a
Explanation: In the given projection, the top view is a square and front view is projected from it. It is a cube where the long edges are resting on the H.P with its vertical faces 45 inclined to the V.P.

11. Which of the following statements is true with respect to the following projection of a cube?
In the projection top view is square making 45 with XY & front view is projected from it
a) Parallel to V.P and H.P
b) Perpendicular to V.P
c) Perpendicular to H.P
d) Inclined 45 V.P
View Answer

Answer: d
Explanation: In the given projection, the top view is a square making 45 with XY and the front view is projected from it. It is a cube where the long edges are resting on the H.P with its vertical faces 45 inclined to the V.P.

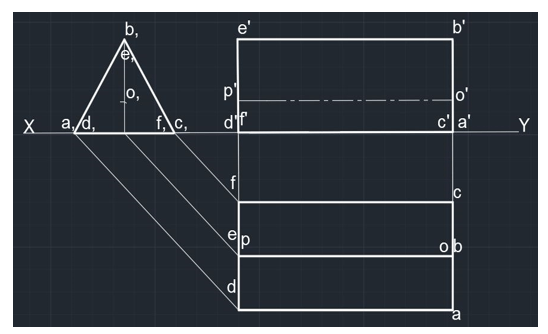

12. Find the type of solid from the given projection?
The type of solid from the given projection is triangular prism with top & front views
a) Cube
b) Triangular prism
c) Pyramid
d) Tetrahedron
View Answer

Answer: b
Explanation: In the given projection, we have a side view of the triangle, and the top and front views are rectangles which means a triangular prism.

13. Which of the following statements is true with respect to the following projection of a triangular prism?
In projection we have side view of the triangle & top & front views are rectangles
a) Axis parallel to V.P and H.P
b) Axis parallel to V.P
c) The axis perpendicular to H.P
d) Axis inclined 45 V.P
View Answer

Answer: b
Explanation: In the given projection, we have a side view of the triangle, and the top and front views are rectangles which mean a triangular prism which has a rectangular face resting on the H.P and having an axis parallel to V.P.
