DNA Binding Motifs

In this tutorial, you will learn about DNA-binding motifs, their importance, and various types such as helix-turn-helix, leucine zipper, helix-loop-helix, and zinc finger motifs. You will explore how these motifs interact with DNA to regulate gene expression, understand protein-protein interaction domains, and examine the mechanisms involved in DNA damage repair.

Contents:

1. What are DNA-Binding Motifs?
2. Importance of DNA-Binding Motifs
3. Types of DNA-Binding Motifs
4. Helix-Turn-Helix Motif
5. Leucine Zipper Motif
6. Helix-Loop-Helix Motif
7. Zinc Finger Motif
8. Protein-protein Interaction Domain
9. Mechanism of DNA Damage Repair

What are DNA-Binding Motifs?

DNA-binding motifs are short sequences of amino acids within proteins that adopt specific structural conformations, allowing them to make direct contact with DNA. The interactions between the protein and DNA are often mediated by hydrogen bonds, ionic interactions, and sometimes hydrophobic interactions. These motifs typically bind to the major or minor groove of DNA, where they recognize specific sequences, often regulating gene activity.

Importance of DNA-Binding Motifs

• Gene regulation: Many DNA-binding proteins are transcription factors, which regulate the expression of genes by binding to specific DNA sequences near promoter regions.
• DNA replication and repair: Proteins involved in replication, repair, and recombination also use DNA-binding motifs to locate and interact with their target sites on the genome.
• Protein-DNA interactions: Understanding these motifs helps in studying how proteins control the cellular functions related to DNA.

Types of DNA-Binding Motifs

DNA-binding motifs are special parts of proteins that help them attach to DNA and control gene activity. Here are the main types:

• Helix-Turn-Helix (HTH): The helix-turn-helix motif is one of the simplest and most widespread DNA-binding motifs. It consists of two alpha-helices connected by a short sequence of amino acids that form a turn. One helix, called the recognition helix, fits into the major groove of DNA and interacts with specific base pairs, while the other helix stabilizes the structure.
• Leucine Zipper: The leucine zipper motif is composed of two alpha helices, each containing leucine residues at every seventh position. These leucines form a hydrophobic zipper that allows two proteins to dimerize and bind to DNA.
• Helix-Loop-Helix (HLH): The helix-loop-helix motif is similar to the helix-turn-helix but features a longer loop between the helices. The two helices, one shorter than the other, form a dimerization domain. Proteins with HLH motifs usually function as dimers and bind to specific DNA sequences.
• Zinc Finger: A small loop of protein held together by a zinc ion. Zinc fingers grab onto specific parts of DNA to help control genes.
• Homeodomain: A special type of helix-turn-helix found in proteins that control body development. It has an extra piece that helps it stick more firmly to DNA.

Helix-Turn-Helix Motif

The helix-turn-helix (HTH) is one of the prominent DNA-binding domains found in proteins that recognize specific DNA sequences. It is characterized by its unique structural configuration, enabling it to interact with the major groove of DNA.

• Structure: The HTH motif comprises about 20 amino acids arranged into two short alpha (α) helices, each consisting of 7-9 amino acids. These helices are connected by a short sequence known as a beta turn (β turn), which causes the two helices to orient at an angle to each other. One of the two α-helices is called the recognition helix, as it contains amino acids that specifically interact with the DNA sequence.
• Function: The recognition helix protrudes from the protein surface and fits into the major groove of the DNA, allowing sequence-specific binding. This interaction plays a crucial role in gene regulation by enabling the protein to bind to specific promoter regions or regulatory sequences.
• Example: The Lac repressor, involved in regulating the lac operon in bacteria, contains a helix-turn-helix motif.

Leucine Zipper Motif

The leucine zipper is a structural motif that primarily facilitates protein-protein interactions but can also bind DNA. It is crucial for the dimerization of transcription factors and their subsequent interaction with DNA.

• Structure: The leucine zipper is an amphipathic alpha (α) helix, meaning it has both hydrophobic and hydrophilic sides. It features leucine residues at every seventh position along the helix, forming a “zipper-like” structure that aligns and interdigitates with another leucine zipper, facilitating dimerization.
• Function: Regulatory proteins with a leucine zipper motif often have a separate domain rich in basic residues that interact with the negatively charged DNA backbone. The basic region binds to DNA, while the leucine zipper helps hold the protein in a dimerized state, enhancing the stability of the interaction with DNA.
• Example: Transcription factors such as c-Jun and c-Fos contain leucine zipper domains, enabling them to dimerize and regulate gene expression.

Helix-Loop-Helix Motif

The helix-loop-helix (HLH) motif is another critical structure for both protein dimerization and DNA binding. It is often found in transcription factors involved in developmental processes and cell differentiation.

• Structure: The HLH motif consists of two short amphipathic alpha helices connected by a loop of variable length. The loop allows flexibility between the helices, which facilitates protein dimerization.
• Function: After dimerization, the adjacent basic regions on each helix bind to specific DNA sequences, similar to how the leucine zipper operates. The HLH motif is key to regulating gene expression, particularly in processes like myogenesis and neurogenesis.
• Example: The MyoD transcription factor, which is essential for muscle differentiation, contains an HLH motif.

Zinc Finger Motif

The zinc finger motif is a small, stable protein structure that uses zinc ions to stabilize its fold, enabling DNA binding. Zinc fingers are often involved in DNA recognition, transcriptional regulation, and RNA packaging.

• Structure: Zinc fingers consist of a loop of amino acids held together by a zinc ion, which is coordinated with either four cysteine residues or a combination of cysteine and histidine residues. The zinc ion does not interact directly with DNA; instead, it stabilizes the loop structure, which binds to the DNA.
• Function: Zinc fingers interact with DNA via weak interactions, but proteins often contain multiple zinc fingers that cooperate to enhance binding affinity. These motifs can recognize specific DNA sequences and are common in transcription factors.
• Example: The Zif268 transcription factor, which binds to GC-rich regions of DNA, contains multiple zinc fingers.

Protein-protein Interaction Domain

Protein-protein interaction domain is the connection between two different helices. Two helices join through a common link and leads to formation of a new product.

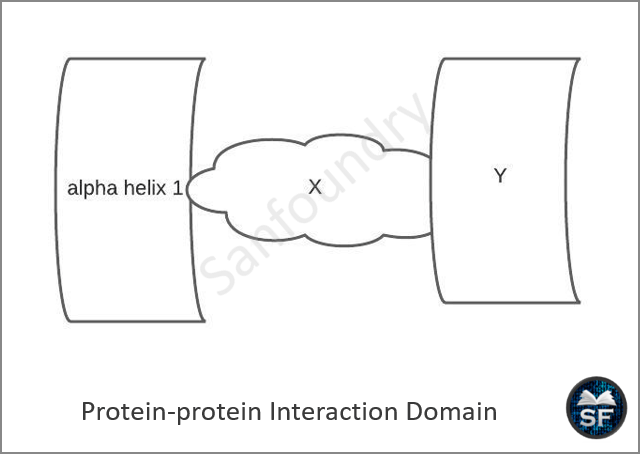

• This diagram gives information about one of the protein-protein interaction domains. This is helix-loop-helix structure.
• X is loop which connects alpha helix 1 and alpha helix 2. Loop is the common link which consists of exactly same characteristics of different kinds of helices.
• Y is Alpha helix 2 which gets connected to alpha helix 1 with the help of loop. This alpha helix-loop- alpha helix of two different polypeptides interact to form dimers. The dimers can be homodimer and heterodimer depending on the type of molecules.

Mechanism of DNA Damage Repair

DNA damage repair is the process by which cell corrects the damage occurred to DNA molecules.

• DNA damage repair mechanism includes two types of repair system: Nucleotide excision repair system and base excision repair system.
• Nucleotide excision repair is done by endonuclease, exonuclease, and DNA polymerase enzyme.
• Endonuclease enzyme does incision on either side of damaged portion of strand. Exonuclease then removes the damaged strand.
• Later DNA polymerase uses complementary strands as a template one and synthesizes new strand. DNA ligase seals the end of synthesized strands.
• Base excision repair is done by N-glycosidase, endonuclease, and DNA polymerase enzyme. This enzyme recognizes bases which are abnormal and hydrolyses bonds between bases and sugars.
• The DNA backbone of abnormal base is cleaved by endonuclease. Exonuclease eliminates the abnormal base while DNA polymerase synthesizes new bases and replaces it with old ones. DNA ligase seals the regions at the end.
