Aircraft Design Questions and Answers – Wing Loading

This set of Aircraft Design Multiple Choice Questions & Answers (MCQs) focuses on “Wing Loading”.

1. Wing loading is ratio of ___________
a) weight of the aircraft and the reference area of wing
b) reference area of wing and power of engine
c) lift to drag
d) aerodynamic force thrust to drag
View Answer

Answer: a
Explanation: Wing loading is defined as the ratio of the weight of an aircraft to the reference area of wing. Similar to thrust loading, wing loading has major effects on the aircraft performance. Lift to drag ratio is defined as aerodynamic efficiency.

2. Wing loading will affect _____________
a) only stall speed
b) only ground roll
c) stall speed, climbing, ground roll etc
d) only climb
View Answer

Answer: c
Explanation: Ratio of the weight of an aircraft to the reference area of wing is termed as wing loading. Wing loading will show the relation between surface area and the weight of an aircraft as a whole. Wing loading will have impact on stall speed, climbing, ground roll, take-off etc.

3. Design lift coefficient is determined by wing loading.
a) True
b) False
View Answer

Answer: a
Explanation: Wing loading will affect the drag of aircraft. Wing loading directly affects the wetted area and span of the wing. Hence, based on adequate wing loading we can determine lift co-efficient as well.
advertisement
advertisement

4. Low wing loading will provide ___________
a) more space of fuel storage in cabin
b) more space for fuel storage in wing
c) less fuel storage
d) less lift
View Answer

Answer: b
Explanation: Wing loading will affect the size of the wing, weight of aircraft etc. Wing loading is given by, Weight off aircraft divided by reference area. If wing loading is low then, the reference area is more. This shows that large wings are used which can store more fuel.

5. As a designer I want to reduce the empty weight of my aircraft. Therefore I will ______
a) will reduce by exactly half
b) decrease wing loading
c) wing loading has no effect
d) increase wing loading
View Answer

Answer: d
Explanation: Wing loading is directly related to the weight of the aircraft. High wing loading refers to the small wings and vice-versa. Hence, to decrease the empty weight, we can increase the wing loading by reducing reference area.
Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

6. An aircraft is flying with wing loading of 50 and maximum CL as 2.4. If density is 1.225 then, find the stall speed of the aircraft.
a) 5.632m/s
b) 5.823
c) 5.832m/s
d) 5.632
View Answer

Answer: c
Explanation: Given wing loading W/S = 50, maximum CL = 2.4, density ρ = 1.225
Now, stall speed of aircraft is given by,
Vstall = \(\sqrt{2*(\frac{W}{S})(\rho*CL)} = \sqrt{2*(50)/(1.225*2.4)} = \sqrt{34.01}\) = 5.832m/s.

7. A civil A/C has maximum lift coefficient of 3. If wing loading is 120 then, find approach speed of the aircraft. Consider sea-level density.
a) 10.50km/s
b) 10.5m/s
c) 12
d) 120
View Answer

Answer: b
Explanation: Given, civil aircraft, maximum CL = 3, wing loading W/S = 120
Approach speed of civil aircraft is given by,
Va = 1.3*Vstall
Where, Vstall = \(\sqrt{2*(\frac{W}{S})/(ρ*CL)}
= \sqrt{2*(120)/(1.225*3)}\) = 8.08m/s
Now, Va = 1.3*Vstall = 1.3*8.08 = 10.5m/s.
advertisement

8. Determine wing loading for civil aircraft if lift-off speed is 80m/s and maximum lift coefficient is 2.8.
a) 91
b) 9111
c) 911
d) 9071.07
View Answer

Answer: d
Explanation: Given, a civil aircraft.
Lift off speed V1 = 80m/s, maximum lift coefficient CL=2.8.
Wing loading is given by,
W/S = 0.5*ρ*V2*CL
Where, V = V1/1.1 = 80/1.1=72.72m/s
Hence, wing loading is given by,
W/S = 0.5*ρ*V2*CL
W/S = 0.5*1.225*72.722*2.8 = 9071.07.

9. Which of the following is correct for a jet aircraft take-off parameter (TOP)?
a) TOP = \(\frac{W/S}{σCL \frac{T}{W}}\)
b) TOP = \(\frac{1}{σCL \frac{T}{W}}\)
c) TOP = \(\frac{2}{σCL \frac{T}{W}}\)
d) TOP = \(\frac{W}{σCL \frac{T}{W}}\)
View Answer

Answer: a
Explanation: Take-off parameter is used to determine take-off distance for the aircraft. TOP is affected by wing loading and thrust loading both. Hence, proper estimation of such parameters are crucial. TOP for jet and prop driven will be different.
For jet, TOP = \(\frac{W/S}{σCL \frac{T}{W}}\).
advertisement

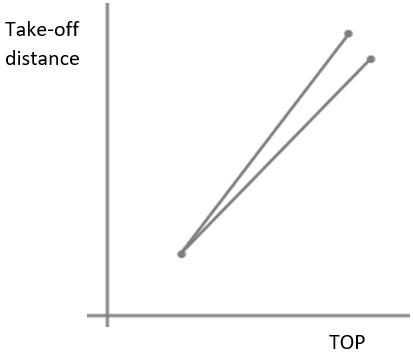

10. Following graph represents __________
Graph representation of variation of take-off parameter with take-off distance
a) take-off velocity
b) take-off distance estimation
c) wing loading
d) power loading
View Answer

Answer: b
Explanation: Above diagram is representing variation of take-off parameter with take-off distance. It is used for takeoff distance estimation. Take-off parameter will vary with the wing loading and thrust loading. Power loading is ratio of power to weight for jet.

11. An aircraft has catapult end speed of 30m/s and wind over deck as 20m/s. If maximum CL is 2.6 and density is 1.22 then, find catapult wing loading.
a) 32
b) 327
c) 3276.859
d) 2
View Answer

Answer: c
Explanation: Given, maximum CL = 2.6, density ρ=1.22
Catapult end speed Ve = 30m/s, wind over deck Vwod = 20m/s
Now, catapult wing loading is given by,
W/S = 0.5*ρ*(Ve+Vwod)2*CL
W/S = 0.5*1.22*(30+20)2*2.6
W/s = 3276.859.

12. For prop aircraft at maximum range what will be the wing loading. Given CD0=0.02, aspect ratio as 8, e=0.6 and q=39.20Pa.
a) 12.5
b) 21.5
c) 1.05
d) 25
View Answer

Answer: b
Explanation: Given CD0=0.02, AR =8, e=0.6, q=39.20Pa.
For maximum range wing loading is given by,
W/S = \(q*\sqrt{\pi eARCD0} = 39.2*\sqrt{\pi*0.6*8*0.02}\) = 21.5.

13. Which of the following is correct for maximum jet range?
a) W/S = \(q*\sqrt{\pi eARCD0}\)
b) W/S = \(q*\sqrt{\pi eAR}\)
c) W/S = \(q*\sqrt{\pi eARCD0/3}\)
d) W/S = q
View Answer

Answer: c
Explanation: From range formula of jet aircraft maximum range is possible if aircraft is operating at wing loading W/S = \(q*\sqrt{\pi eARCD0/3}\). W/S = \(q*\sqrt{\pi eARCD0}\) is wing loading for maximum loiter performance.

14. Jet aircraft with CD=0.01+0.02CL2 is performing loiter. Find wing loading for maximum loiter if, AR=8.5, e=0.7 and dynamic pressure is 25Pa.
a) 13.08
b) 11.80
c) 12.80
d) 10.80
View Answer

Answer: d
Explanation: Given, CD = 0.01+0.2CL2, AR=8.5, e=0.7, Dynamic pressure q=25Pa.
From CD = 0.01+0.2CL2, CD0 = 0.01.
Wing loading for maximum loiter is given by,
W/S = \(q*\sqrt{\pi eARCD0}\) = W/S = 25*\(\sqrt{\pi*0.7*8.5*0.01}\) = 10.80.

15. A prop driven A/C has BHP/W as 0.08. If density ratio is 0.2 and take off lift coefficient is 3 then find take-off parameter for the aircraft. Given wing loading W/s = 35.
a) 700
b) 800
c) 900
d) 500
View Answer

Answer: a
Explanation: Given, a prop Aircraft.
BHP/E = 0.08, density ratio σ = 0.2, CL at take-off = 3.
Take-off parameter TOP = \(\frac{W/S}{σCL BHP/W}\) = 35 / (0.2*3*0.08) = 700.
