Power Electronics Questions and Answers – Type D Chopper

This set of Power Electronics Multiple Choice Questions & Answers (MCQs) focuses on “Type D Chopper”.

1. A type D chopper is a
a) two quadrant type-B chopper
b) two quadrant type-A chopper
c) two quadrant type-C chopper
d) none of the mentioned
View Answer

Answer: a
Explanation: It is a two quadrant (I and IV) type B chopper as load current is always positive but the voltage can be positive or negative.

2. In a type-D chopper
a) current can flow in both the directions of the load
b) current cannot flow in both the directions of the load
c) voltage can only be positive
d) voltage can only be negative
View Answer

Answer: b
Explanation: It is a two quadrant (I and IV) type B chopper. In quadrant I and IV current is only positive.

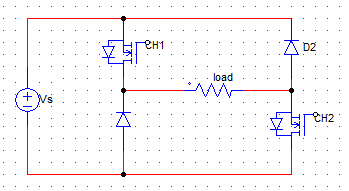

3. What is the load voltage value when both the chopper switches are on?
Find the load voltage value when both the chopper switches are on
a) 0
b) Vs
c) 2Vs
d) Vs/2
View Answer

Answer: b
Explanation: When both the switches are on, load is directly in parallel with Vs (source voltage).
advertisement
advertisement

4. For a type D chopper, the average value of output voltage will be positive when
a) Ton = Toff
b) Ton < Toff
c) Toff = 0
d) Ton > Toff
View Answer

Answer: d
Explanation: When the chopper on time (SW1 and SW2) is more than the chopper off time than the average voltage will be positive. When the chopper switches are off, both the diodes are operating and the voltage is negative.

5. For a type D chopper, if duty cycle = 0.5 then the
a) average voltage is positive
b) average voltage is negative
c) average voltage is zero
d) chopper cannot be operated with duty cycle = 0.5
View Answer

Answer: c
Explanation: When α = 0.5. Ton = Toff hence the positive and negative value of voltages become equal. Making the average voltage = 0 V.
