Power Electronics Questions and Answers – Thyristor Chopper Circuits-2

This set of Power Electronics Multiple Choice Questions & Answers (MCQs) focuses on “Thyristor Chopper Circuits-2”.

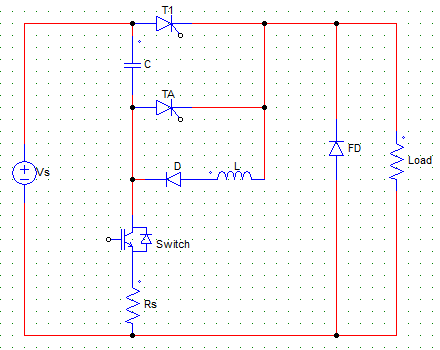

1. For the below given voltage commutation circuit, find the peak value of voltage across the freewheeling diode FD.
Find the peak value of voltage across the freewheeling diode FD
a) Vs
b) 0
c) 2Vs
d) Vs + Ldi/dt
View Answer

Answer: c
Explanation: The load current then flows through Vs-C-TA-Load. Hence, Vo = Vs + (capacitor voltage). As the capacitor is already charged to a voltage Vs. Vo = Voltage across FD = 2Vs.

2. A voltage commutated chopper feeds power to an electric car (battery-powered). The battery voltage is 60 V. The SCR turn-off time is 20 μs. Calculate the value of capacitor (C) required for the commutating circuit.
a) 400 μF
b) 40 nF
c) 40 μF
d) 0.4 mF
View Answer

Answer: c
Explanation: Capacitor current = C dv/dt
For constant load current Io, the above expression can be
Io = C x (Vs/tc) or C = (tc x Io)/Vs
C = ( 40 x 60 x 10-6)/60 = 40 x 10-6 Farads.

3. Identify the below given circuit.
Find the peak value of voltage across the freewheeling diode FD
a) current commutated chopper
b) voltage commutated chopper
c) load commutated chopper
d) load commutated inverter
View Answer

Answer: a
Explanation: Diode in anti-parallel with the main SCR. Hence (a).
advertisement
advertisement

4. A voltage commutated chopper feeds power to an electric car (battery-powered). The battery voltage is 60 V. Starting current is 60 A and the SCR turn-off time is 20 μs. Calculate the value of inductance (L) required for the commutating circuit.
a) 400 μH
b) 40 nH
c) 40 μH
d) 0.4 mH
View Answer

Answer: c
Explanation: L = (Vs/Io)2 x C
C = (tc x Io)/Vs
C = ( 40 x 60 x 10-6)/60 = 40 x 10-6 F
L = (60/60)2 x 40 x 10-6 = 40 uH.

5. In the below given circuit, at the instant T1 the main SCR is triggered, the voltage across the load terminal is
Find the peak value of voltage across the freewheeling diode FD
a) Vs
b) 0
c) 2Vs
d) Vs + Ldi/dt
View Answer

Answer: a
Explanation: When the main SCR is gated, the commutating circuit remains inactive. Hence the load is directly connected to Vs through the SCR. Considering SCR as an ideal switch Vo = Vs.
