Power Electronics Questions and Answers – Choppers-3

This set of Power Electronics Test focuses on “Choppers-3”.

1. If a step up chopper’s switch is always kept off then (ideally)
a) Vo = 0
b) Vo = ∞
c) Vo = Vs
d) Vo > Vs
View Answer

Answer: c
Explanation: If it is said the a chopper is always kept off, that means the switch is always open. As such, Ton = 0
Duty cycle = 0
Vo = Vs/1-duty cycle . . . (for a step-up chopper).

2. If a step up chopper’s switch is always kept open then (ideally)
a) Vo = 0
b) Vo = ∞
c) Vo = Vs
d) Vo > Vs
View Answer

Answer: b
Explanation: If it is always in then, Ton = T. Duty cycle = 1.
Vo = Vs/1-duty cycle = Vs/0
Therefore, Vo = ∞.

3. Find the average value of output voltage of a basic step-down chopper, with duty cycle = α and load = R Ω.
Find the average value of output voltage of a basic step-down chopper, with duty cycle = α
a) I = Vs x α
b) I = (Vs x α)/R
c) I = 0
d) I = Vs/R
View Answer

Answer: b
Explanation: Vo = Vs x α
I = Vo/R.
advertisement
advertisement

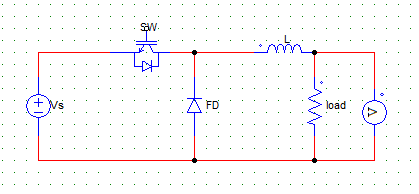

4. For the below given circuit, find the output current at the instant of commutation.
Find the output current at the instant of commutation in given circuit
a) Vo/R
b) Vs/R
c) 0
d) α/2
View Answer

Answer: b
Explanation: The circuit is that of a step-down chopper. The output current is commutated by the switch(IGBT) at the instant t = Ton. Therefore, output current at the instant of commutation is Vs/R.

5. For a step-down chopper, find the rms value of output voltage. Let α be the duty cycle and Vs be the input voltage.
a) α x Vs
b) Vs/α
c) √α x Vs
d) Vs/2
View Answer

Answer: c
Explanation: [(Ton/T).Vs2]1/2 = √α x Vs.
