Power Electronics Questions and Answers – Single Phase Semi-Converters-1

This set of Power Electronics Multiple Choice Questions & Answers (MCQs) focuses on “Single Phase Semi-Converters-1”.

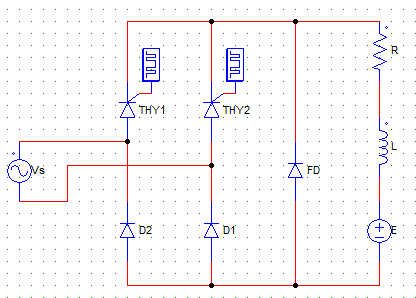

1. In the below shown semi-converter circuit, T1 and T2 are fired at an angle α, then from ωt = α to π
Semi-converter circuit, T1 and T2 are fired at an angle α, then from ωt = α to π
a) T1 and T2 conduct
b) T1 and D1 conduct
c) D1 and D2 conduct
d) FD conducts
View Answer

Answer: b
Explanation: At ωt = α T1 is gated and current starts to flow from T1-R-L-E-D1-Vs-T1.

2. In the below shown semi-converter circuit T1 & T2 are fired at an angle α, then from ωt = π to α+π
Semi-converter circuit T1 & T2 are fired at an angle α, then from ωt = π to α+π
a) T1 is conducting
b) T2 is conducting
c) D1 is conducting
d) FD conducting
View Answer

Answer: d
Explanation: None of the SCRs are gated, FD is forward biased and starts to conduct charging the L.

3. In the below shown semi-converter circuit T1 & T2 are fired at an angle α, the output voltage is zero when
Semi-converter circuit T1 & T2 are fired at an angle α, the output voltage is zero
a) π<ωt<α
b) 0<ωt<α+π
c) π<ωt<π+α
d) π<ωt<2π
View Answer

Answer: c
Explanation: FD is conducting as none of the SCRs are gated which S.C’s the load circuit hence zero voltage.
advertisement
advertisement

4. In a semi-converter with RLE load during the freewheeling period, the energy is
a) fed back to the source
b) fed to the inductor(L) and absorbed by E
c) absorbed by the L & E and dissipated at R
d) fed to the L & E and dissipated at R
View Answer

Answer: d
Explanation: The energy is fed back fed to the L & E and dissipated at R.

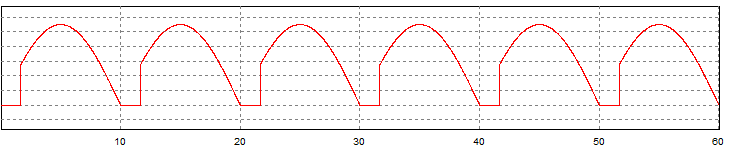

5. A semi-converter circuit gives the following voltage waveform. Find the expression for the average output voltage with Vs = Vm sinωt and firing angle α
Find the expression for the average output voltage with Vs = Vm sinωt & firing angle α
a) (Vm/π) cosα
b) (Vm/π) (1+cosα)
c) (2Vm/π) cosα
d) (2Vm/π) (1+cosα)
View Answer

Answer: b
Explanation: Vo = 1/π ∫ Vm sinωt d(ωt), Where the integration runs from α to π.
Note: Join free Sanfoundry classes at Telegram or Youtube

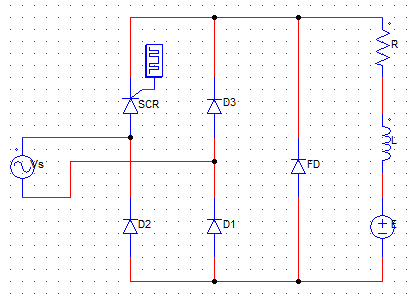

6. For the below given circuit configuration, the SCR is fired at angle α. For continuous current mode from ωt = π to 2π
For continuous current mode from ωt = π to 2π is D3 & D2 conducts
a) FD conducts
b) SCR and D1 conduct
c) D3 and D2 conducts
d) None of the mentioned
View Answer

Answer: c
Explanation: From ωt = π to 2π, the negative cycle is active and the SCR is reversed biased. D3 and D2 are ative and are supplying power to the load.

7. For the below given circuit configuration, the SCR is fired at angle α. For continuous current mode, find the expression for the average output voltage
For continuous current mode from ωt = π to 2π is D3 & D2 conducts
a) (Vm/2π) (1+ cosα)
b) (Vm/2π) (2+ cosα)
c) (Vm/2π) (3+ cosα)
d) (3Vm/π)
View Answer

Answer: c
Explanation: The output voltage will have two parts
V1 = [ ∫ Vm sinωt d(ωt) ] where the integration would run from α to π
V2 = [ ∫ Vm sinωt d(ωt) ] where the integration would run from π to 2π
Vo = 1/2π x V1+V2.
advertisement

8. A semi-converter circuit gives the following voltage waveform on R load. Find the expression for the average output current with Vs = Vm sinωt and firing angle α
Find the expression for the average output voltage with Vs = Vm sinωt & firing angle α
a) (Vm/Rπ) cosα
b) (Vm/Rπ) (1+cosα)
c) (2Vm/Rπ) cosα
d) (2Vm/Rπ) (1+cosα)
View Answer

Answer: b
Explanation: Vo = 1/π ∫ Vm sinωt d(ωt) Where the integration runs from α to π
Io = Vo/R.

9. A semi-converter with RLE load and a freewheeling diode has discontinuous load current with firing angle α and extinction angle β. The freewheeling period is
a) π>ωt<β
b) π>ωt<β
c) π<ωt>β
d) π>ωt>β
View Answer

Answer: a
Explanation: The freewheeling period is from π to the extinction angle.
advertisement

10. A semi-converter with RLE load and a freewheeling diode has discontinuous load current with firing angle α and extinction angle β. If β < π and Vm sinβ < E then
a) the converter operates as a line commutated inverter
b) the conduction period is absent
c) the freewheeling period is absent
d) none of the mentioned
View Answer

Answer: c
Explanation: As the extinction angle is less than 90 degrees, the freewheeling period is absent.

Sanfoundry Global Education & Learning Series – Power Electronics.

To practice all areas of Power Electronics, here is complete set of 1000+ Multiple Choice Questions and Answers.

If you find a mistake in question / option / answer, kindly take a screenshot and email to [email protected]
