PLC Program to Implement 2-bit Magnitude Comparator

This is a PLC Program to Implement 2-bit Magnitude Comparator.

Problem Description

Implementing 2-bit comparator in PLC using Ladder Diagram programming language.

Problem Solution
  • For a 2-bit comparator, each input word is 2 bit long.
  • Writing truth table showing the comparison of input words.
  • For each output AB, write Karnaugh-Map.
  • From the K-Map, obtaining a simplified expression for each output in terms of 2-bit inputs.
  • Realize the code converter using the Logic Gates.

By comparing both word inputs, Truth Table can be written as given below.

Decimals	Inputs	                Outputs
	A1	A0	B1	B0	A<B	A=B	A>B
0	0	0	0	0	0	1	0
1	0	0	0	1	1	0	0
2	0	0	1	1	1	0	0
3	0	0	1	0	1	0	0
4	0	1	1	0	0	0	1
5	0	1	1	1	0	1	0
6	0	1	0	1	1	0	0
7	0	1	0	0	1	0	0
8	1	1	0	0	0	0	1
9	1	1	0	1	0	0	1
10	1	1	1	1	0	1	0
11	1	1	1	0	1	0	0
12	1	0	1	0	0	0	1
13	1	0	1	1	0	0	1
14	1	0	0	1	0	0	1
15	1	0	0	0	0	1	0

Boolean expression for each output bit can be written as

 A<B = m(1, 2, 3, 6, 7, 11)
 A=B = m(0, 5, 10, 15)
 A>B = m(4, 8, 9, 12, 13, 14)

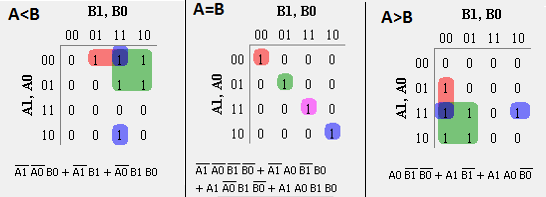

Karnaugh-Map for each output
plc-program-implement-2-bit-magnitude-comparator-01

advertisement
advertisement

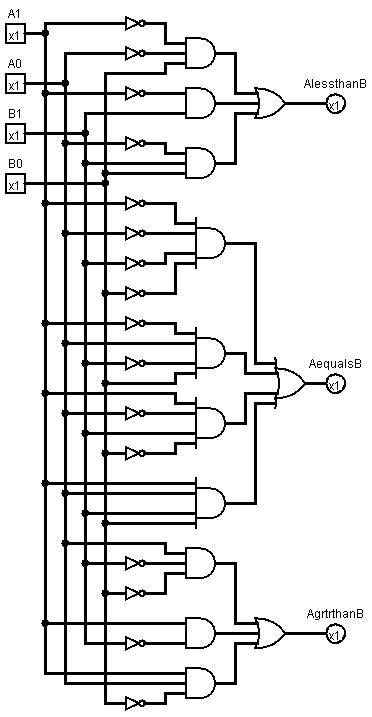

Realizing code conversion using Logic Gates
plc-program-implement-2-bit-magnitude-comparator-02

PLC Program

Here is PLC program to Implement 2-bit Magnitude Comparator, along with program explanation and run time test cases.

List of Inputs and Outputs
 A1  =			I:1/0	(Input)
 A0  =			I:1/1	(Input)
 B1  =			I:1/2	(Input)
 B0  =			I:1/3	(Input)
 A<B =			O:2/0	(Output)
 A=B =			O:2/1	(Output)
 A>B =			O:2/2	(Output)

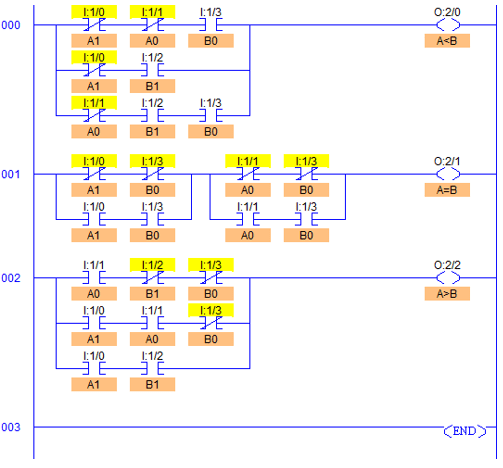

Ladder Diagram to obtain Binary output
plc-program-implement-2-bit-magnitude-comparator-03

Program Description
  • RUNG000 is used to detect if A is less than B. first compares A1 and B1 bits. If A1 is less than B1 then O:2/0 is set otherwise it similarly compares A0 and B0.
  • RUNG001 is used to detect the condition when A=B are equal. ANDing of two EX-NOR gates ae obtained by simplifying expression using De-Morgan’s Theorem.
  • O:2/1 is set only when A1A0=B1B0.
  • RUNG002 works similarly as RUNG000, it first compares A1 and B1, if A1 is greater than B1 then output O:2/2 is set to 1 and if not, it compares A0 and B0.
Runtime Test Cases
Decimals	Inputs	                Outputs
	A1	A0	B1	B0	A<B	A=B	A>B
0	0	0	0	0	0	1	0
1	0	0	0	1	1	0	0
2	0	0	1	1	1	0	0
3	0	0	1	0	1	0	0
4	0	1	1	0	0	0	1
5	0	1	1	1	0	1	0
6	0	1	0	1	1	0	0
7	0	1	0	0	1	0	0
8	1	1	0	0	0	0	1
9	1	1	0	1	0	0	1
10	1	1	1	1	0	1	0
11	1	1	1	0	1	0	0
12	1	0	1	0	0	0	1
13	1	0	1	1	0	0	1
14	1	0	0	1	0	0	1
15	1	0	0	0	0	1	0

Sanfoundry Global Education & Learning Series – PLC Algorithms.
To practice all PLC programs, here is complete set of 100+ PLC Problems and Solutions.
