Materials Science Questions and Answers – Unary Phase Diagrams

This set of Materials Science Multiple Choice Questions & Answers (MCQs) focuses on “Unary Phase Diagrams”.

1. Which of the following are examples of unary phase diagrams?
a) Cu-Ni phase diagram
b) Water phase diagram
c) Cu-Pd phase diagram
d) Mg-Db phase diagram
View Answer

Answer:b
Explanation: The simplest phase diagram is the water which is a one component system.

2. What are the external parameters that affect the phase structure?
a) Temperature, Pressure
b) Temperature, Composition
c) Pressure, Composition
d) Temperature, Pressure, Composition
View Answer

Answer: d
Explanation: The phase of the system changes accordingly with an increase or decrease in the above parameters.

3. What is the phase fraction of an alloy when it is one phase system?
a) 0.6
b) 0.8
c) 0.5
d) 1.0
View Answer

Answer: d
Explanation: Urinary phase diagram is a phase diagram of a single component over a range of temperature-pressure. It may consist of one or more phases but its chemical composition remains the same.
advertisement
advertisement

4. What will be the phase composition of a phase system?
a) The composition of each phase is same throughout the phase diagram
b) The composition of each phase is different throughout the phase diagram
c) Contains more than one composition in the entire phase diagram
d) Varies from molecule to molecule
View Answer

Answer: a
Explanation: The composition of each phase is the same throughout the phase diagram.

5. Which of the following remains constant in Unary phase diagrams?
a) Pressure
b) Temperature
c) Composition
d) Both pressure and temperature
View Answer

Answer: c
Explanation: Since there is only one phase there will be only one substance.
Note: Join free Sanfoundry classes at Telegram or Youtube

6. Along the phase boundaries, the phases on either side will be in ______
a) Equal
b) Equilibrium
c) Different
d) Constant
View Answer

Answer: b
Explanation: At phase boundary, the phase compositions will be the same.

7. What is a triple point?
a) All three states are in equilibrium
b) All three states are not in equilibrium
c) All three states don’t exist
d) All three states don’t exist and are not in equilibrium
View Answer

Answer: a
Explanation: In triple point, all the states exist and are in equilibrium.
advertisement

8. What is the temperature at triple point of water?
a) 288 K
b) 273.16 K
c) 298 K
d) 277 K
View Answer

Answer: b
Explanation: At 273.16 k all the three phases of water will be in equilibrium.

9. What is pressure at a triple point of water?
a) 5.08×10-3 atm
b) 6.04×10-3 atm
c) 7.04×10-3 atm
d) 6.44×10-3 atm
View Answer

Answer: b
Explanation: At 6.04×10-3 atm all the three phases of water will be in equilibrium.
advertisement

10. Which of the following is unary phase diagram?

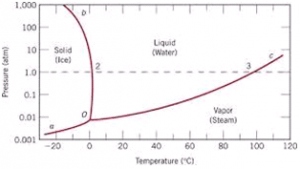

a) The following is unary phase diagram - option a
b) The following is unary phase diagram - option b
c) The following is unary phase diagram - option c
d) The following is unary phase diagram - option d
View Answer

Answer: a
Explanation: Unary phase diagram consists of only one substance.

Sanfoundry Global Education & Learning Series – Materials Science.

To practice all areas of Materials Science, here is complete set of 1000+ Multiple Choice Questions and Answers.

If you find a mistake in question / option / answer, kindly take a screenshot and email to [email protected]
