This set of Mass Transfer Multiple Choice Questions & Answers (MCQs) focuses on “Distillation – Flash Vaporization”.
1. Flash vaporization is a
a) Equilibrium distillation
b) Differential distillation
c) Simple distillation
d) None of the mentioned
View Answer
Explanation: Since the liquids are partially vaporized and allowed to be in equilibrium with vapour.
2. The feed is directly passed to the flash vaporization column
a) True
b) False
View Answer
Explanation: The feed must be pre-heated.

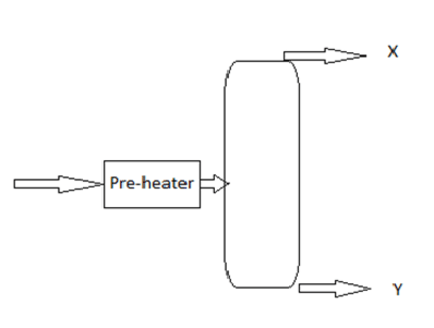

3. Find the X and Y from the flash column given below
a) X-more volatile, Y-less volatile
b) X-less volatile, Y- more volatile
c) X-non volatile, Y-less volatile
d) X-non volatile, Y-more volatile
View Answer
Explanation: Since the more volatile component has the low vapour pressure it will becomes vapour and comes out in the top.
4. Binary mixture of 100 kmol/hr enters into a flash drum has equimolar composition. The distillate obtained is 60 kmol/hr and the enthalpy of distillate, residue and feed are 500 KJ/kmol, 200 KJ/kmol and 400 KJ/kmol. Find the bottom flow rate in kmol/hr.
a) 10
b) 20
c) 30
d) 40
View Answer
Explanation: -W/D = HD-HF/HW-HF
Where, HD, HW,HF are enthalpy of distillate, residue and feed.
-W/60 = -0.5
W= 30.
5. Find the ratio of distillate to residual flow rates, if a binary mixture containing 65% of more volatile component while the distillate and the residue compositions are 90% and 30%.
a) 0.4
b) 1.4
c) 2.4
d) 3.4
View Answer
Explanation: -W/D=(xd – xf)/(xw-xf)
Finally we ger –W/D= -0.416
D/W= 2.4.
6. What happens to the liquid after preheating when enter to the cyclonic flash drum?
a) Starts to evaporate
b) Split with centrifugal force
c) Comes out in residue
d) None of the mentioned
View Answer
Explanation: Since the column is like cyclone it will split the liquid with a centrifugal force for the further separation.
7. Express the flash vaporization
a) Single stage operation
b) Multi component operation
c) Still operation
d) None of the mentioned
View Answer
Explanation: Only a single drum is used.
8. Find the heat given( in KJ) to the feed for the flash vaporization process if the ratio of residue to the distillate is 0.65 and the enthalpy of feed, distillate and the residue are 500, 800 and 200 KJ/kmol respectively. The feed rate is 100 kmol/hr.
a) 4343
b) 5353
c) 6363
d) 7373
View Answer
Explanation: -W/D = (HD-(Hf+Q/f))/ (Hw- (Hf+Q/F))
On apply the values, we get 6363 KJ
9. Find the distillate and the residue rates in mole/hr, if the feed rate is 100 mol/hr; The compositions of feed, distillate and residue in terms of mole fraction are 0.65, 0.9 and 0.2.
a) 36,64
b) 64,36
c) 20,80
d) 80,20
View Answer
Explanation: F*xf= D*xd+ W*xw
On applying the values, we get distillate rate= 64 mol/hr and residue rate is 36 mol/hr.
10. Find the feed composition of more volatile component by analysing the table below.
| Enthalapy(kj/kmol) | Composition | |
|---|---|---|
| Distillate | 800 | 0.95 |
| Residue | 200 | 0.2 |
| Feed | 500 | ? |
Hint: can neglect pre-heater.
a) 0.45
b) 0.575
c) 0.6
d) 0.65
View Answer
Explanation: (xd- xf)/(xw- xf) =Hd- Hf/(Hw-Hf)
On applying values, we get xf= 0.575.
Sanfoundry Global Education & Learning Series – Mass Transfer.
To practice all areas of Mass Transfer, here is complete set of 1000+ Multiple Choice Questions and Answers
If you find a mistake in question / option / answer, kindly take a screenshot and email to [email protected]
