Android Program to Start a Service in a Different Process

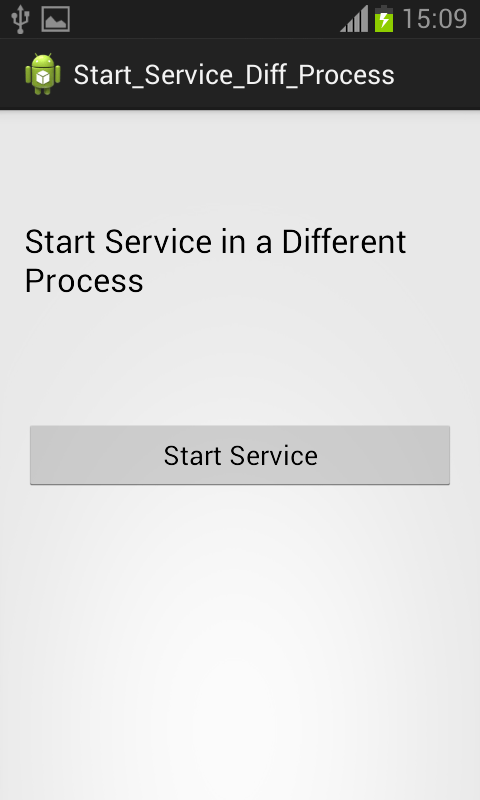

Here is source code of the Program to Start a Service in a Different Process in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

MainActivity.java

package com.example.start_service_diff_process;

import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Button but_start = (Button) findViewById(R.id.but_Start);
        but_start.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                // TODO Auto-generated method stub
                Intent intent = new Intent(getApplicationContext(),
                        MyService.class);
                startService(intent);
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

}

MyService.java

package com.example.start_service_diff_process;

import android.app.Service;
import android.content.Context;
import android.content.Intent;
import android.os.IBinder;
import android.os.Vibrator;
import android.widget.Toast;

public class MyService extends Service {
    @Override
    public void onStart(Intent intent, int startId) {
        // TODO Auto-generated method stub
        super.onStart(intent, startId);
        Toast.makeText(getApplicationContext(), "Service Started in" +
                " a Different " +
                "Process", Toast.LENGTH_LONG).show();
        stopSelf();//force service to a stop.
    }

    @Override
    public IBinder onBind(Intent intent) {
        // TODO Auto-generated method stub
        return null;
    }

}

Activity_main.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <Button
        android:id="@+id/but_Start"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentRight="true"
        android:layout_centerVertical="true"
        android:text="Start Service" />

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_marginTop="56dp"
        android:text= "Start Service in a Different Process"
        android:textAppearance="?android:attr/textAppearanceLarge" />

</RelativeLayout>

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.start_service_diff_process"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="17" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.example.start_service_diff_process.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <service
            android:name=".MyService"
            android:enabled="true"
            android:process=":my_process" />
    </application>

</manifest>
