Android Program to Demonstrate Self Terminating Services

Here is source code of the Program to Demonstrate Self Terminating Services. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

MainActivity.java

package com.example.self_terminating_services;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;

public class MainActivity extends Activity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Button btnVibrate = (Button) findViewById(R.id.buttonVibrate);

        btnVibrate.setOnClickListener(new View.OnClickListener() {

            public void onClick(View arg0) {
                // TODO Auto-generated method stub
                Intent intent = new Intent(getApplicationContext(),
                        VibrateService.class);
                startService(intent);

            }
        });
    }

}

VibrateService.java

package com.example.self_terminating_services;

import android.app.Service;
import android.content.Context;
import android.content.Intent;
import android.os.IBinder;
import android.os.Vibrator;

public class VibrateService extends Service {

    @Override
    public void onStart(Intent intent, int startId) {
        // TODO Auto-generated method stub
        super.onStart(intent, startId);

        Vibrator v = (Vibrator) getSystemService(Context.VIBRATOR_SERVICE);
        long pattern[] = { 0, 800, 200, 1200, 300, 2000, 400, 4000 };
        v.vibrate(pattern, -1);
        stopSelf(startId);
    }

    @Override
    public IBinder onBind(Intent intent) {
        // TODO Auto-generated method stub
        return null;
    }

}

Activity_main.xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        android:layout_marginTop="140dp"
        android:text="Self Terminating Service"
        android:textSize="20dp" />

    <Button
        android:id="@+id/buttonVibrate"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/textView1"
        android:layout_alignParentBottom="true"
        android:layout_marginBottom="86dp"
        android:text="Start Service" />

</RelativeLayout>

AndroidManifest.xml

advertisement
advertisement
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.self_terminating_services"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="17" />

    <uses-permission android:name="android.permission.VIBRATE" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.example.self_terminating_services.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <service android:name=".VibrateService" />
    </application>

</manifest>

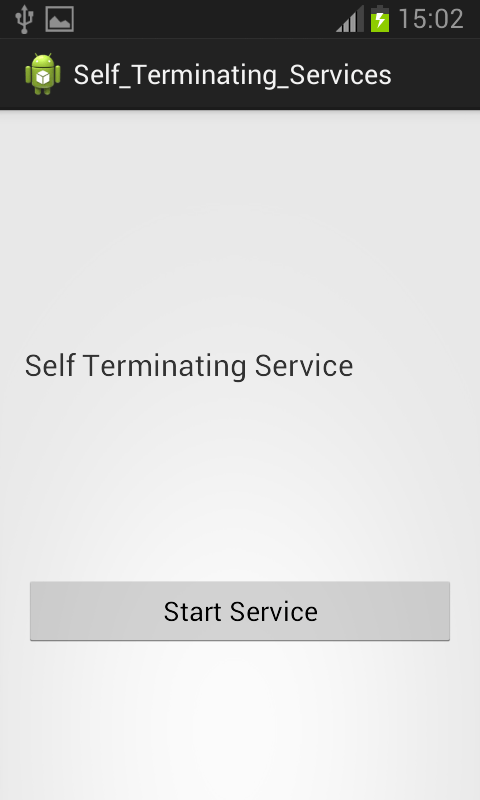

Screenshot_2013-10-05-15-02-28
