Simple Todo List Application in Android with Source Code

This Android Program lets you create an Activity to create a Simple to-do List Application.

Here is source code of the Program to create an Activity to create a Simple to do List Application in Java. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity


package com.example.to_do_list;

import java.util.ArrayList;

import android.R.string;
import android.os.Bundle;
import android.app.Activity;
import android.view.KeyEvent;
import android.view.Menu;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.EditText;
import android.widget.ListView;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        ListView lv = (ListView) findViewById(R.id.ListView);
        final EditText text = (EditText) findViewById(R.id.edittext);

        final ArrayList<String> do_list = new ArrayList<String>();
        final ArrayAdapter<String> adapter;

        adapter = new ArrayAdapter<String>(this,
                android.R.layout.simple_list_item_1, do_list);

        lv.setAdapter(adapter);

        text.setOnKeyListener(new View.OnKeyListener() {

            @Override
            public boolean onKey(View v, int keyCode, KeyEvent event) {
                // TODO Auto-generated method stub
                if (event.getAction() == KeyEvent.ACTION_DOWN) {
                    if ((keyCode == KeyEvent.KEYCODE_DPAD_CENTER)
                            || (keyCode == KeyEvent.KEYCODE_ENTER)) {
                        do_list.add(0, text.getText().toString());
                        adapter.notifyDataSetChanged();
                        text.setText("");
                        return true;
                    }
                }
                return false;
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

}

DolistitemView


package com.example.to_do_list;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.widget.TextView;

public class dolistitemview extends TextView {

    private Paint marginPaint;
    private Paint linePaint;
    private int paperColor;
    private float margin;

    public dolistitemview(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        // TODO Auto-generated constructor stub
        init();
    }

    private void init() {

        Resources myResources = getResources();

        marginPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        marginPaint.setColor(myResources.getColor(R.color.notepad_margin));
        linePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        linePaint.setColor(myResources.getColor(R.color.notepad_lines));
        paperColor = myResources.getColor(R.color.notepad_paper);
        margin = myResources.getDimension(R.dimen.notepad_margin);
    }

    @Override
    public void onDraw(Canvas canvas) {
        // Use the base TextView to render the text.
        canvas.drawColor(paperColor);

        //drawing lines
        canvas.drawLine(0, 0, 0, getMeasuredHeight(), linePaint);
        canvas.drawLine(0, getMeasuredHeight(), getMeasuredWidth(),
                getMeasuredHeight(), linePaint);
        //the margin line
        canvas.drawLine(margin, 0, margin, getMeasuredHeight(), marginPaint);

        canvas.save();
        canvas.translate(margin, 0);
        super.onDraw(canvas);
        canvas.restore();
    }
}

Xml

Main

advertisement
advertisement

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity" >

    <EditText
        android:id="@+id/edittext"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content" />

    <ListView
        android:id="@+id/ListView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

Dolistitem Xml

Sanfoundry Certification Contest of the Month is Live. 100+ Subjects. Participate Now!

<?xml version="1.0" encoding="utf-8"?>

<com.example.to_do_list.dolistitemview xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fadingEdge="vertical"
    android:padding="10dp"
    android:scrollbars="vertical"
    android:textColor="@color/notepad_text" />

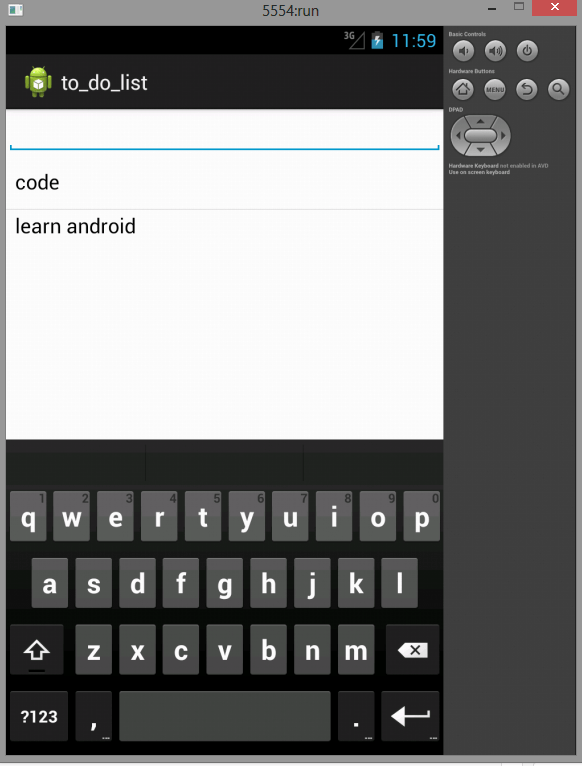

Capture
