Android Program to Create Multiple Activities within an Application

This Android Program demonstrates to Create Multiple Activities within an Application using Intent and Thread.

Here is the source code of the Program to create Multiple Activities within an Application using Intent and a Thread. The project is successfully compiled and run on a Windows system using Eclipse ide. The program output is also shown below.

The Second Activity is called by the First Activity using startActivity() method which takes as input an intent object this intent object should be pointing towards the Second Activity in order to do that we create a new Intent object using intent class and within it specifying the Action name of the Second Activity which is set in the AndroidManifest.xml file.

Activity One



package com.example.creatingmultipleactivities;

import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Thread th = new Thread() {

            public void run() {
                try {
                    sleep(2000);
                    startActivity(new Intent(
                            "com.example.creatingmultipleactivities.second_activity"));
                } catch (InterruptedException e) {
                    // TODO Auto-generated catch block
                    e.printStackTrace();
                }

                finally {
                    finish();
                }
            }
        };
        th.start();
    }

    @Override
    protected void onPause() {
        // TODO Auto-generated method stub
        super.onPause();

    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

}

Second Activity

advertisement
advertisement

package com.example.creatingmultipleactivities;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;

public class second_activity extends Activity{

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
        setContentView(R.layout.second);

    }
    @Override
    protected void onPause() {
        // TODO Auto-generated method stub
        super.onPause();

    }
}

Xml

First Activity Xml


<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity"
    android:background="@drawable/background">

    <TextView
        android:id="@+id/textView1"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:layout_marginTop="39dp"
        android:gravity="center_horizontal"
        android:text="This is the first Activity"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:textSize="50sp" />

</RelativeLayout>

Second Activity Xml

Note: Join free Sanfoundry classes at Telegram or Youtube

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/background">

    <TextView
        android:id="@+id/textView1"
        android:layout_width="match_parent"
        android:layout_height="252dp"
        android:text="This is Second Activity"
        android:paddingTop="80dp"
        android:gravity="center"
        android:textAppearance="?android:attr/textAppearanceLarge"
        android:textSize="40sp" />

</LinearLayout>

AndroidManifest

advertisement
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.creatingmultipleactivities"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="17" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.example.creatingmultipleactivities.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity
            android:name="com.example.creatingmultipleactivities.second_activity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="com.example.creatingmultipleactivities.second_activity" />

                <category android:name="android.intent.category.DEFAULT" />
            </intent-filter>
        </activity>
    </application>

</manifest>

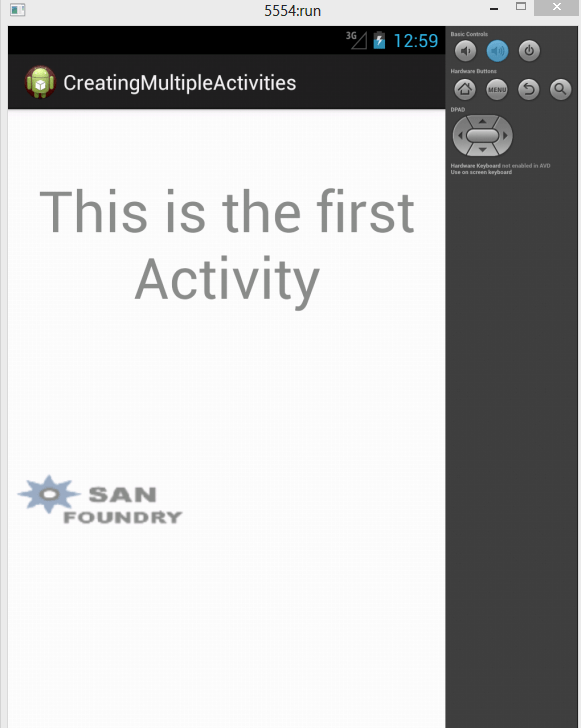

Capture

Capture
