Android Checkable Menu Item Program

Here is source code of the Program to Demonstrate Checkable Menu Items in Android. The program is successfully compiled and run on a Windows system using Eclipse Ide. The program output is also shown below.

Main Activity

package com.example.usingcheckablemenuitems;

import android.app.Activity;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    /*
     * When a checkable item is selected, the system calls your respective
     * item-selected callback method (such as onOptionsItemSelected()). It is
     * here that you must set the state of the checkbox, because a checkbox or
     * radio button does not change its state automatically. You can query the
     * current state of the item (as it was before the user selected it) with
     * isChecked() and then set the checked state with setChecked()
     */
    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        switch (item.getItemId()) {
        case R.id.save:
        case R.id.delete:
            if (item.isChecked())
                item.setChecked(false);
            else
                item.setChecked(true);
            return true;
        default:
            return super.onOptionsItemSelected(item);
        }
    }
}

Menu

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android" >

    <group android:checkableBehavior="single" >
        <item
            android:id="@+id/delete"
            android:title="Delete"/>
        <item
            android:id="@+id/save"
            android:title="Save"/>
    </group>

</menu>

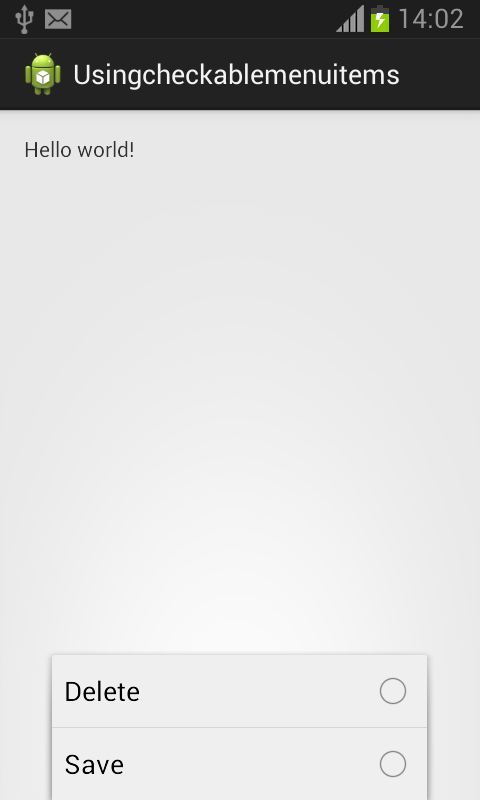

Screenshot_2013-12-21-14-02-39[1]

Sanfoundry Global Education & Learning Series – 100+ Java Android Tutorials.
