Construction & Building Materials Questions and Answers – Types of Foundation

This set of Construction and Building Materials Multiple Choice Questions & Answers (MCQs) focuses on “Types of Foundation”.

1. A spread is given under the base of a wall or common is known as ________
a) Piles
b) Pier
c) Footing
d) Plinth
View Answer

Answer: c
Explanation: Such spread is known as footing and the foundation is known as spread footing. Footing which contains steps or off sets and it is also referred to as the step footing. If the wall rests directly on foundation concrete without any step, it is known as the simple footing.

2. What is the value of angle of response for clay(dry) soil.
a) 10°
b) 45°
c) 30°
d) 60°
View Answer

Answer: c
Explanation: The depth of footing should also be such that the rate of angle of spread of the load from the wall base to the outer edge of ground bearing does not exceed the permissible value.

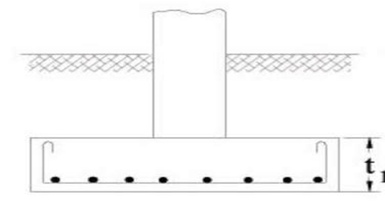

3. Identify the given type of foundation below.
Shallow foundation is a simple footing or single footing
a) Stepped foundation
b) Single foundation
c) Sloped foundation
d) Shallow foundation
View Answer

Answer: b
Explanation: If the wall raised directly on foundation concrete without any step, it is known as the simple footing or single footing. In this case, the load of the wall is directly subjected to the footing without any step distribution and hence mostly affected by central buckling.
advertisement
advertisement

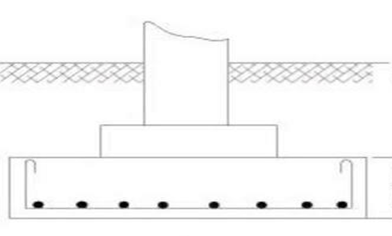

4. Identify the given type of foundation below.
The given figure contains steps or offsets & it is also referred to as stepped footing
a) Stepped foundation
b) Shallow foundation
c) Sloped foundation
d) Single foundation
View Answer

Answer: a
Explanation: The above given figure contains steps or offsets and it is also referred to as the stepped footing. Such type of footing are commonly used in the small buildings or single storey buildings in which load is distributed step wisely into the ground.

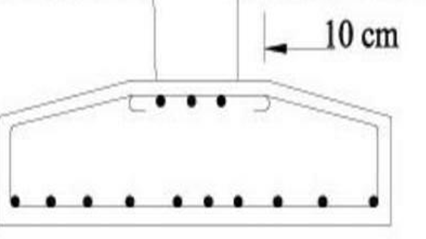

5. Identify the given type of foundation below.
Figure shows sloped footing for an RCC column or pier sed for the piers of bridges
a) Stepped foundation
b) Deep foundation
c) Single foundation
d) Sloped foundation
View Answer

Answer: d
Explanation: Above given figure shows sloped footing for an RCC column or pier. It is an type of Shallow Foundation which is commonly used for the piers of bridges with shallow depth below in water.

6. Which Foundation is used when the wall carries light loads or when the safe bearing pressure is very high?
a) Simple Strip footing
b) Simple pad footing
c) Grillage footing
d) Strap footing
View Answer

Answer: a
Explanation: In that case, a simple strip footing is provided. The wall directly rest on the concrete base, and no masonry offset are provided since spread is not required.

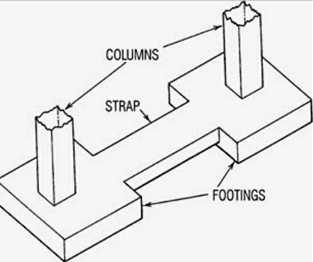

7. Identify the given type of foundation below.
The type of foundation is strap putting comprises of two footings of individual columns
a) Combine footing
b) Grillage footing
c) Strap footing
d) Wall footing
View Answer

Answer: c
Explanation: A strap putting comprises of two or more footings of individual columns, connected by a beam, called as a strap. The function of the strap been is to transfer a load of heavily loaded outer column to the inner one.
advertisement

8. Identify the type of foundation below.
The type of foundation used to transfer load through water or soft soil to stratum
a) Compaction pile
b) Anchor pile
c) End bearing pile
d) Sheet pile
View Answer

Answer: c
Explanation: End bearing pile is used to transfer load through water or soft soil to a suitable bearing stratum. Such types of foundations are used in clay soil or marshy soil.

9. Identify the given type of foundation below.
The type of foundation friction pile are used to transfer loads to depth of friction
a) Fender pile
b) Batter pile
c) Tension pile
d) Friction pile
View Answer

Answer: d
Explanation: Friction pile are used to transfer loads to a depth of a friction load carrying Material by means of skin friction along the length of piles. Such Foundation is used where hard Strata is not available to a certain depth below the soil.
advertisement

10. Identify the given foundation below.
Foundation anchor pile provide Anchorage against horizontal pull from piling
a) Anchor pile
b) Dolphin pile
c) Tension pile
d) Sheet pile
View Answer

Answer: a
Explanation: It is an type of deep foundation. Anchor piles provide Anchorage against horizontal pull from sheet piling other pulling forces. Whereas, sheet piles are commonly used as bulkheads, or as impervious cut off to reduce seepage and uplift under hydraulic structures.

11. Identify the given deep foundation below.
Foundation tension pile anchor down structures subjected to uplift
a) Tension pile
b) Compaction pile
c) Batter pile
d) Friction pile
View Answer

Answer: a
Explanation: Tension pile or uplift pile anchor down the structures subjected to uplift due to hydrostatic pressure due to over turning moment. Such foundations are always under very high tension and hence need to be laid very carefully.

12. Identify the missing data.
Foundation batter piles are used to resist large horizontal or incline forces
a) Fender pile
b) Batter pile
c) Uplift pile
d) Bulkhead
View Answer

Answer: b
Explanation: The batter piles are used to resist large horizontal or incline forces. It is an type of miscellaneous piles and used in combination with sheet pile.
